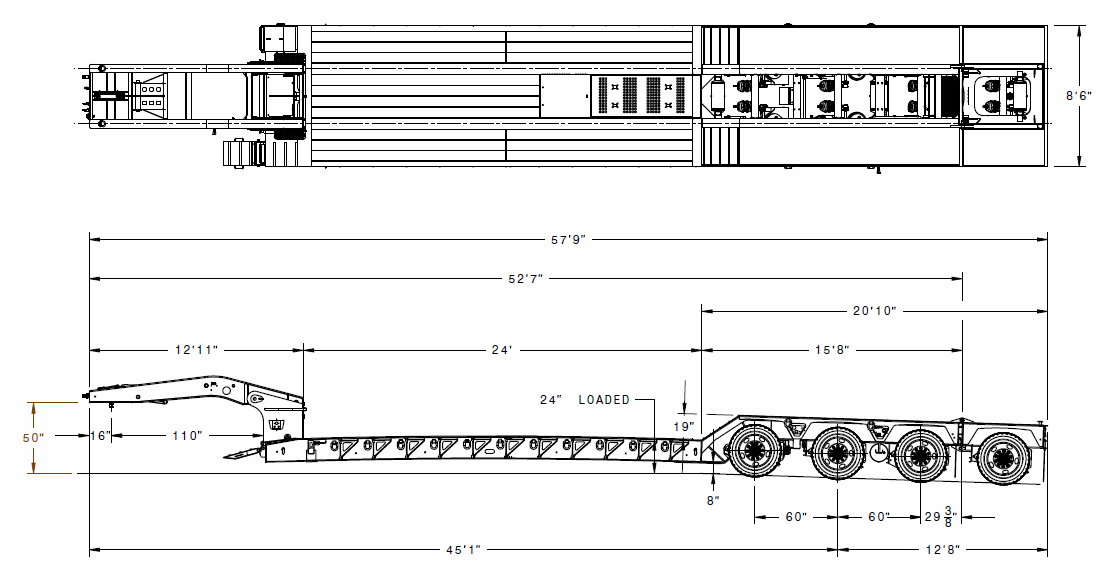

Lowboy · Drawing

00305794

GTBN553-53-24-HGG

Download PDF

Capacity: 55-Ton HGG
Number of Axles: 4
Lower Deck Length: 288"
Overall Length: 636"
Rear Deck Height: 42"
Lower Deck Height: 24"
KingPin Style: Fixed
Model Type: Full Deck

Specifications 48 of 49 fields recorded

Show empty fields

Dimensions & Capacity

Model Type	Full Deck
Capacity	55-Ton HGG
Rear Deck Height	42"
Lower Deck Height	24"
Lower Deck Length	288"
Rear Deck Length (PO)	193"
Rear Deck Length (Design)	188"
Overall Length	636"
Overall Width	102"
Ground Clearance	8"

Gooseneck & King Pin

GN Length	155"
KingPin Style	Fixed
KingPin Setting	16"
Swing Clearance	110"
Fifth Wheel Height	50"
Ride Height	4-Position
Well Decking	Open

Frame & Deck

Main Beam Center	41" Std.
Deck Main Beam	16" T-1 Steel Std.
Deck Side Rail	16" T-1 Steel
Crossmembers	10" & 4"
Outrigger Type	Full Height Removable
Front Ramps	Steel 18" x 31" Std.
Riser (Transition) Ramp	35° Rear Bridge Ramp
Rear Deck Beam	16.5" T-1 Steel
Rear Well Style	Boom & Bucket Well
D-Ring in Tail	2 Ea Side
Rear Deck Option (Beavertail)	No
Wood	Apitong Full Width
Wheel Covers	Steel Covered D-Plate
Rear Bolster D-Rings	2 Ea Side

Axles & Suspension

Number of Axles	4
Axle Spacings	60"
Axle Track	76.5"
ABS	4S2M
Axle 1	Fixed Type 30/30 ABS
Axle 2	Fixed Type 30/30 ABS
Axle 3	Super Lift Type 30 Non-ABS
Axle 4	Hydraulic Flip Type 30 Non-ABS
Suspension Type	Cush Air Ride Suspension-25K
Dump Type	Manual Dump
Ride Height Adjuster	No
Flip Axle Set Up	Set Up for Hydraulic Powered Flip

Wheels & Electrical

Tire	275/70R x 22.5" H
Rims	8.25 x 22.5 Hub Piloted Outer Aluminum

Options & Finish

Fenders	No
Motor	No
Flip Box Set Up	No
Wide Load Sign Cutout	—

Notes

Dust shields and cam covers on all axles - Tool box w/lockable lid in last bay (1st bay in front of bucket pan) - Safety night light package - (4) Four additional d-rings inside of boom well
(2) Two on each side - (4) Four additional marker lights added down each side of main deck
