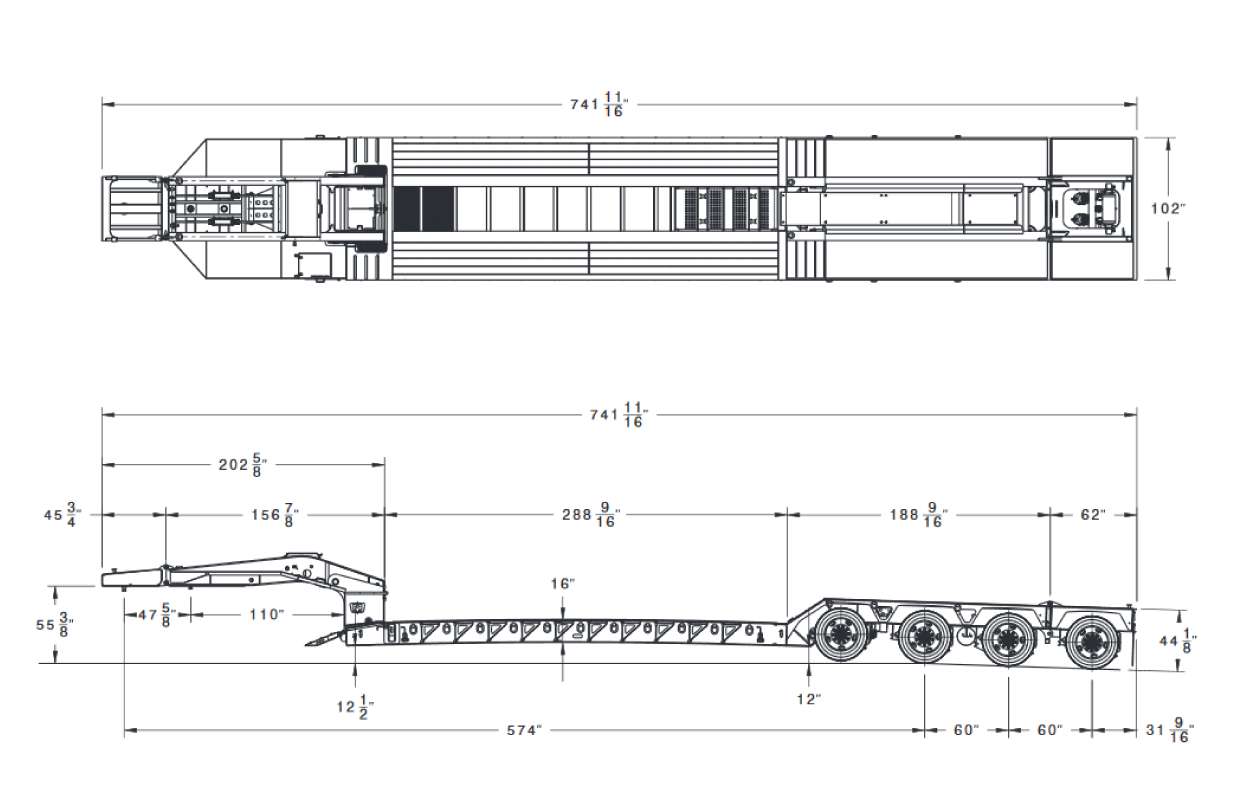

Lowboy · Drawing

00167268

GTBN553-53-24-HGG

Download PDF

Capacity: 55-Ton HGG
Number of Axles: 3
Lower Deck Length: 288"
Overall Length: 635"
Rear Deck Height: 42"
Lower Deck Height: 24"
KingPin Style: Removable
Model Type: Full Deck

Specifications 47 of 49 fields recorded

Show empty fields

Dimensions & Capacity

Model Type	Full Deck
Capacity	55-Ton HGG
Rear Deck Height	42"
Lower Deck Height	24"
Lower Deck Length	288"
Rear Deck Length (PO)	188"
Rear Deck Length (Design)	Redesign
Overall Length	635"
Overall Width	102"
Ground Clearance	8"

Gooseneck & King Pin

GN Length	159"
KingPin Style	Removable
KingPin Setting	16" & 40"
Swing Clearance	110" & 86"
Fifth Wheel Height	50"
Ride Height	4-Position
Well Decking	Removable V-Style Full Length

Frame & Deck

Main Beam Center	41" Std.
Deck Main Beam	16" T-1 Steel Std.
Deck Side Rail	16" T-1 Steel
Crossmembers	10" & 4"
Outrigger Type	Full Height Removable
Front Ramps	Steel 18" x 31" Std.
Riser (Transition) Ramp	35° Rear Bridge Ramp
Rear Deck Beam	16.5" T-1 Steel
Rear Well Style	Boom & Bucket Well
D-Ring in Tail	2
Rear Deck Option (Beavertail)	No
Wood	1.75" Apitong - Open Center
Wheel Covers	Steel Covered D-Plate
Rear Bolster D-Rings	—

Axles & Suspension

Number of Axles	3
Axle Spacings	60"
Axle Track	77.5"
ABS	4S2M
Axle 1	Fixed Type 30/30 ABS
Axle 2	Fixed Type 30/30 ABS
Axle 3	Super Lift Type 30 Non-ABS
Axle 4	None
Suspension Type	Cush Air Ride Suspension-25K
Dump Type	Auto Dump
Ride Height Adjuster	No
Flip Axle Set Up	Set up for 3+1

Wheels & Electrical

Tire	275/70R x 22.5" H
Rims	8.25 x 22.5 Hub Piloted Outer Aluminum

Options & Finish

Fenders	Diamond Plate Steel Fenders
Motor	11 HP Honda - Gas
Flip Box Set Up	48" Flip Box & Set Up
Wide Load Sign Cutout	—

Notes

1). (6) additional d-rings located inside of main beams (evenly spaced with 3 on each side) 2). 1 set (4) outrigger boards with handles 3). axle dust shields 4). cam covers 5). pull out "wide load" lights 6). added stiffeners to inside of trailer main deck where GN attaches 7). "Bump neck" style gooseneck 8). expanded metal in 1st and 2nd bay behind GN for storage 9). add gussets to GN fenders for extra support 10). "V-style" cover plates need to be 1 man operation
