01418389
GTBN402-51-29-HGG
- 40-Ton HGG
- 3
- 29'

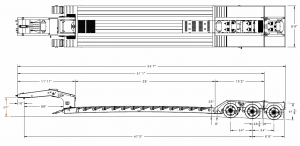

Lowboy · Drawing
01399449
GTBN402-51-29-HGG
- Capacity
- 40-Ton HGG
- Number of Axles
- 3
- Lower Deck Length
- 29'
- Overall Length
- 613"
- Rear Deck Height
- 42"
- Lower Deck Height
- 20" w/ 6" GC
- KingPin Style
- Fixed
- Model Type
- Full Deck
Specifications 41 of 49 fields recorded
Dimensions & Capacity
| Model Type | Full Deck |
|---|---|
| Capacity | 40-Ton HGG |
| Rear Deck Height | 42" |
| Lower Deck Height | 20" w/ 6" GC |
| Lower Deck Length | 29' |
| Rear Deck Length (PO) | 122" |
| Rear Deck Length (Design) | — |
| Overall Length | 613" |
| Overall Width | 102" |
| Ground Clearance | 6" |
Gooseneck & King Pin
| GN Length | 143" |
|---|---|
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 98" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Well Decking | Removable D-Plate - Full Length |
Frame & Deck
| Main Beam Center | 40" |
|---|---|
| Deck Main Beam | 14" T-1 Steel |
| Deck Side Rail | 14" T-1 Steel |
| Crossmembers | 10" & 4" |
| Outrigger Type | Removable Std. |
| Front Ramps | Steel 18" x 31" Std. |
| Riser (Transition) Ramp | 35° Rear Bridge Ramp |
| Rear Deck Beam | 16.5" T-1 Steel |
| Rear Well Style | Boom & Bucket Well |
| D-Ring in Tail | 2 Ea Side |
| Rear Deck Option (Beavertail) | — |
| Wood | 1.75" Apitong - Open Center |
| Wheel Covers | Steel Covered D-Plate |
| Rear Bolster D-Rings | — |
Axles & Suspension
| Number of Axles | 3 |
|---|---|
| Axle Spacings | 54" |
| Axle Track | 76.5" |
| ABS | 2S1M |
| Axle 1 | Fixed Type 30/30 Non-ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Hydraulic Flip Type 30 Non-ABS |
| Axle 4 | — |
| Suspension Type | Cush Air Ride Suspension - 25K |
| Dump Type | Manual |
| Ride Height Adjuster | — |
| Flip Axle Set Up | Set up for hydraulic powered flip |
Wheels & Electrical
| Tire | 255/70R x 22.5 "H" |
|---|---|
| Rims | 8.25 x 22.5 Hub Piloted Outer Aluminum |
Options & Finish
| Fenders | — |
|---|---|
| Motor | 13 HP Honda - Gas |
| Flip Box Set Up | — |
| Wide Load Sign Cutout | — |
Notes
(4) additional clearance lights to each side of the main deck
LED work lights on GN base, facing rear of trailer
ALL lights to be clear lenses and chrome bezels
Tool box w/lockable lid in 1st bay behind GN, open storage bin in 2nd bay
All accessories to be safety yellow in color
