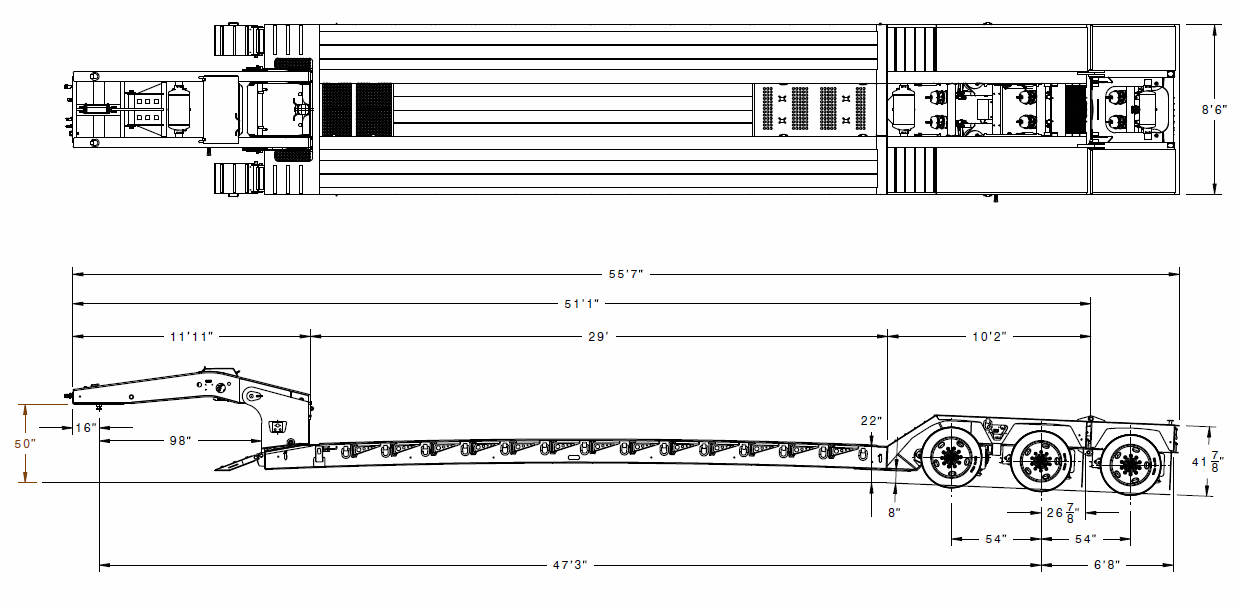

Lowboy · Drawing
00382675
GTBN402-51-29-HGG
- Capacity
- 40-Ton HGG
- Number of Axles
- 3
- Lower Deck Length
- 348"
- Overall Length
- 612"
- Rear Deck Height
- 42"
- Lower Deck Height
- 20"
- KingPin Style
- Fixed
- Model Type
- Full Deck
Specifications 47 of 49 fields recorded
Dimensions & Capacity
| Model Type | Full Deck |
|---|---|
| Capacity | 40-Ton HGG |
| Rear Deck Height | 42" |
| Lower Deck Height | 20" |
| Lower Deck Length | 348" |
| Rear Deck Length (PO) | 121" |
| Rear Deck Length (Design) | 122" |
| Overall Length | 612" |
| Overall Width | 102" |
| Ground Clearance | 6" |
Gooseneck & King Pin
| GN Length | 143" |
|---|---|
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 98" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Well Decking | Open |
Frame & Deck
| Main Beam Center | 40" |
|---|---|
| Deck Main Beam | 14" T-1 Steel |
| Deck Side Rail | 14" T-1 Steel |
| Crossmembers | 10" & 4" |
| Outrigger Type | Removable Standard |
| Front Ramps | Steel 18" x 31" Std. |
| Riser (Transition) Ramp | 35° Rear Bridge Ramp |
| Rear Deck Beam | 16.5" T-1 Steel |
| Rear Well Style | Boom & Bucket Well |
| D-Ring in Tail | 1 |
| Rear Deck Option (Beavertail) | No |
| Wood | 1.75" Apitong Full Width |
| Wheel Covers | Steel Covered D-Plate |
| Rear Bolster D-Rings | — |
Axles & Suspension
| Number of Axles | 3 |
|---|---|
| Axle Spacings | 54" |
| Axle Track | 76.5" |
| ABS | 2S1M |
| Axle 1 | Fixed Type 30 Non-ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Hydraulic Flip Type 30 Non-ABS |
| Axle 4 | None |
| Suspension Type | Cush Air Ride Suspension-25K |
| Dump Type | Manual Dump |
| Ride Height Adjuster | Yes |
| Flip Axle Set Up | Set Up for Hydraulic Powered Flip |
Wheels & Electrical
| Tire | 255/70R x 22.5" H |
|---|---|
| Rims | 8.25 x 22.5 Hub Piloted Outer Aluminum |
Options & Finish
| Fenders | No |
|---|---|
| Motor | 13 HP Honda - Gas |
| Flip Box Set Up | No |
| Wide Load Sign Cutout | — |
Notes
Expanded metal 1st and 2nd bay behind gooseneck with 2 D-rings in each bay - Air ride adjustment to be located in 1st bolster, curb side - Four extra LEDs per side of main deck - Air, electric, and hydraulic connections to be located on front of gooseneck and gooseneck base (ref. trailer 170603) - 4 Extra D-Rings in boom and bucket well - (5) 3/4" LED red lights in center of trailer bumper and flip axle bumper In lieu of light bar - Mount hydraulic reservoir in top of gooseneck Reference trailer 160937 - weld chain bar and aluminum cover in gooseneck base GTZY101-5 Flip Axle, Air Ride - 255/70R x 22.5 "H" w/ 8.25 x 22.5 Hub Piloted Outer Aluminum
PO - 180236
