Lowboy · Drawing

00525275

GTBN553-53-24-GG

Download PDF

Capacity: 55-Ton GG
Number of Axles: 3
Lower Deck Length: 288"
Overall Length: 632"
Rear Deck Height: 42"
Lower Deck Height: 24"
KingPin Style: Fixed
Model Type: Full Deck

Specifications 49 of 49 fields recorded

Show empty fields

Dimensions & Capacity

Model Type	Full Deck
Capacity	55-Ton GG
Rear Deck Height	42"
Lower Deck Height	24"
Lower Deck Length	288"
Rear Deck Length (PO)	201"
Rear Deck Length (Design)	201"
Overall Length	632"
Overall Width	102"
Ground Clearance	8"

Gooseneck & King Pin

GN Length	143"
KingPin Style	Fixed
KingPin Setting	16"
Swing Clearance	98"
Fifth Wheel Height	50"
Ride Height	5-Position
Well Decking	Removable V-Style Full Length

Frame & Deck

Main Beam Center	40"
Deck Main Beam	16" T-1 Steel Std.
Deck Side Rail	16" T-1 Steel
Crossmembers	10" & 4"
Outrigger Type	Full Height Removable
Front Ramps	Steel 18" x 31" Std.
Riser (Transition) Ramp	35° Rear Bridge Ramp
Rear Deck Beam	16.5" T-1 Steel
Rear Well Style	Boom & Bucket Well
D-Ring in Tail	4
Rear Deck Option (Beavertail)	Yes
Wood	1.75" Apitong - Open Center
Wheel Covers	Steel Covered D-Plate
Rear Bolster D-Rings	3

Axles & Suspension

Number of Axles	3
Axle Spacings	49"
Axle Track	76.5"
ABS	2S1M
Axle 1	Fixed Type 30/30 Non-ABS
Axle 2	Fixed Type 30/30 ABS
Axle 3	Super Lift Type 30 Non-ABS
Axle 4	None
Suspension Type	Cush Air Ride Suspension-25K
Dump Type	Auto Dump
Ride Height Adjuster	No
Flip Axle Set Up	No

Wheels & Electrical

Tire	255/70R x 22.5 "H"
Rims	8.25 x 22.5 Hub Piloted Steel

Options & Finish

Fenders	No
Motor	No
Flip Box Set Up	No
Wide Load Sign Cutout	Not required

Notes

1). Expanded metal 1st. 2nd, 3rd bays. 2). Two additional 3/4" lights on each side of main deck. 3). Load bearing, removable, flush mounted, diamond plate boomwell.

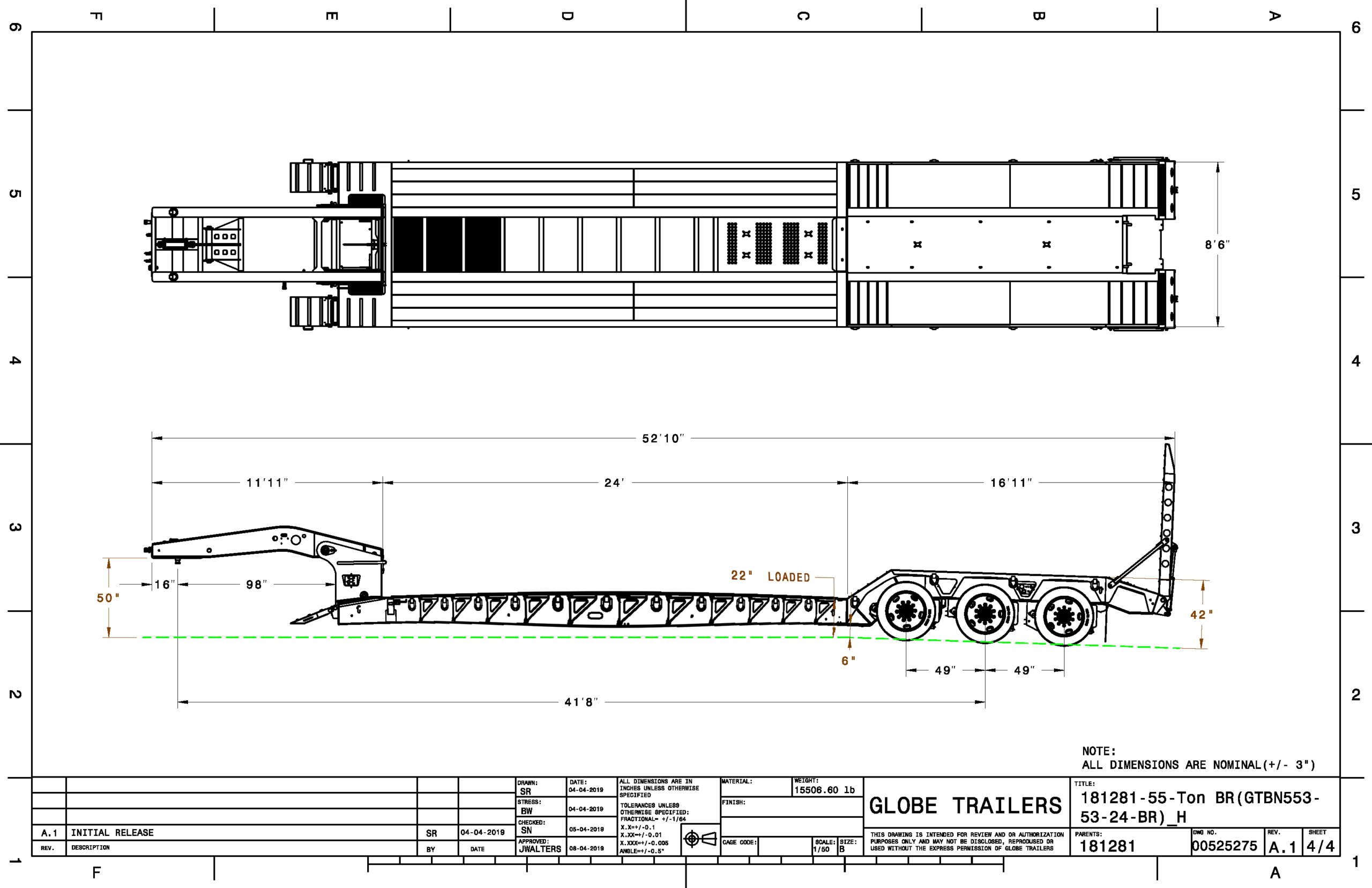

Click the drawing to zoom.

Other drawings with model GTBN553-53-24-GG

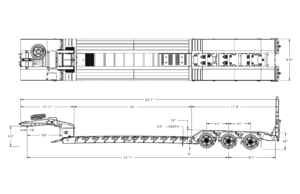

00341489
