00273706
GTBN553-53-24-GG
- 55-Ton GG
- 3
- 288"
Lowboy · Drawing

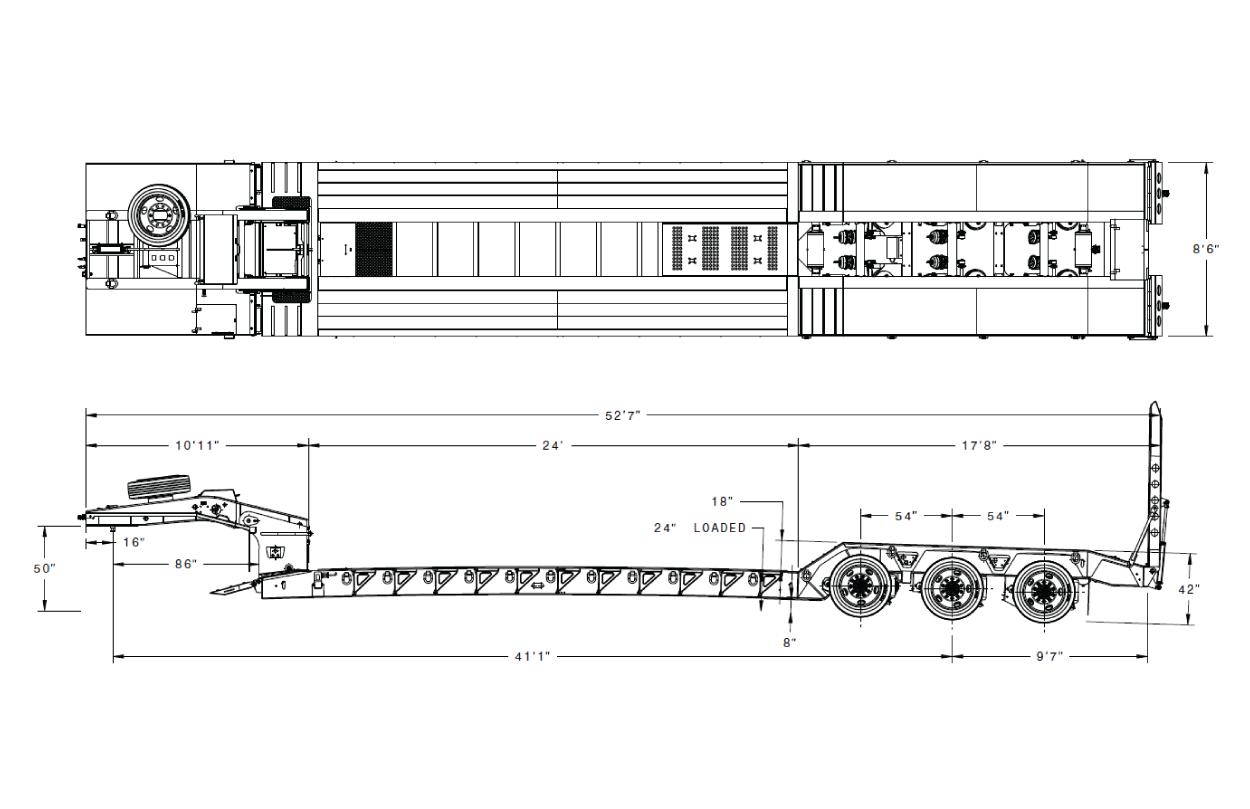

00341489
GTBN553-53-24-GG
- Capacity
- 55-Ton GG
- Number of Axles
- 3
- Lower Deck Length
- 288"
- Overall Length
- 630"
- Rear Deck Height
- 42"
- Lower Deck Height
- 24"
- KingPin Style
- Fixed
- Model Type
- Full Deck
Specifications 48 of 49 fields recorded
Dimensions & Capacity
| Model Type | Full Deck |
|---|---|
| Capacity | 55-Ton GG |
| Rear Deck Height | 42" |
| Lower Deck Height | 24" |
| Lower Deck Length | 288" |
| Rear Deck Length (PO) | 211" |
| Rear Deck Length (Design) | Redesign |
| Overall Length | 630" |
| Overall Width | 102" |
| Ground Clearance | 8" |
Gooseneck & King Pin
| GN Length | 131" |
|---|---|
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 86" |
| Fifth Wheel Height | 50" |
| Ride Height | 4-Position |
| Well Decking | Open |
Frame & Deck
| Main Beam Center | 41" Std. |
|---|---|
| Deck Main Beam | 16" T-1 Steel Std. |
| Deck Side Rail | 16" T-1 Steel |
| Crossmembers | 10" & 4" |
| Outrigger Type | Full Height Removable |
| Front Ramps | Steel 18" x 31" Std. |
| Riser (Transition) Ramp | 35° Rear Bridge Ramp |
| Rear Deck Beam | 16.5" T-1 Steel |
| Rear Well Style | Boom & Bucket Well |
| D-Ring in Tail | 4 Ea Side |
| Rear Deck Option (Beavertail) | Beavertail 36", Rear Ramps 36" x 96", Hydraulic, Apitong Tread |
| Wood | Apitong Open Center |
| Wheel Covers | Steel Covered D-Plate |
| Rear Bolster D-Rings | 4 Ea Side |
Axles & Suspension
| Number of Axles | 3 |
|---|---|
| Axle Spacings | 54" |
| Axle Track | 76.5" |
| ABS | 2S1M |
| Axle 1 | Fixed Type 30/30 Non-ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Super Lift Type 30 Non-ABS |
| Axle 4 | None |
| Suspension Type | Cush Air Ride Suspension-25K |
| Dump Type | Auto Dump |
| Ride Height Adjuster | No |
| Flip Axle Set Up | No |
Wheels & Electrical
| Tire | 255/70R x 22.5" H |
|---|---|
| Rims | 8.25 x 22.5 Hub Piloted All Aluminum |
Options & Finish
| Fenders | Diamond Plate Steel Fenders |
|---|---|
| Motor | Yes |
| Flip Box Set Up | No |
| Wide Load Sign Cutout | — |
Notes
Tool box in deck with lockable lid. Spare tire mounted. Aluminum pony motor cover. Air Weigh scale. Hubodometer. Chain rack on GN. Auto tire inflation system (3). Safety night light package. (2) Two 4" Amber Strobes Safety night light package and flasher kit will run off of the battery installed for the hydraulic ramps Outrigger boards with lock downs.
