Description

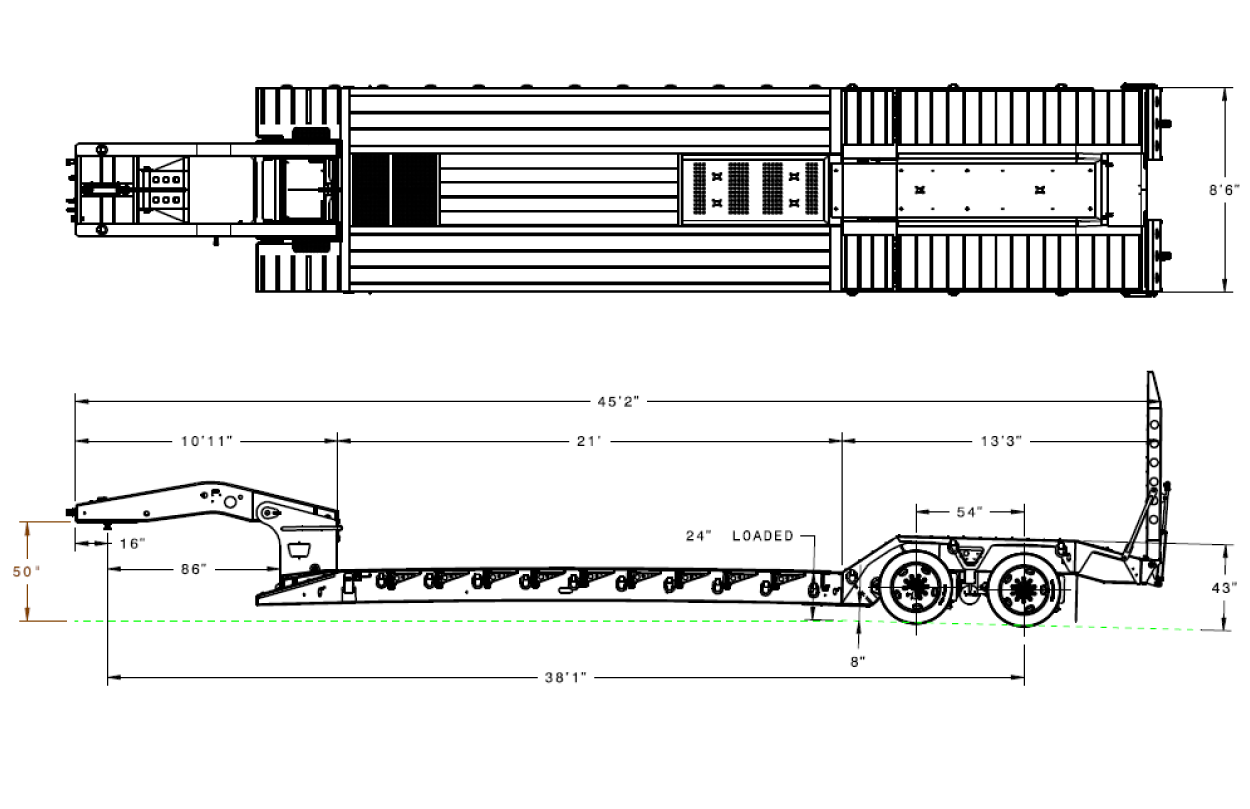

| Parameters of Product | Lowboy Trailer |
|---|---|
| Model Type | Full Deck |
| Capacity | 35-Ton BR |
| Rear Deck Height | 42" |
| Lower Deck Height | 24" |
| GN Length | 131" |
| Lower Deck Length | 252" |
| Rear Deck Length (PO) | 160" |
| Rear Deck Length (Design) | 159" |
| Overall Length | 542" |
| Overall Width | 102" |
| Ground Clearance | 8" |
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 86" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Fenders | No |
| Motor | No |
| Flip Box Set Up | No |
| Main Beam Center | 40" |
| Deck Main Beam | 16" |
| Deck Side Rail | 16" |
| Crossmembers | 10" & 4" |
| Outrigger Type | Removable Standard |
| Front Ramps | Integrated Fixed Ramps |
| Number of Axles | 2 |
| Axle Spacings | 54" |
| Axle Track | 76.5" |
| ABS | 4S2M |
| Axle 1 | Fixed Type 30/30 ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | None |
| Axle 4 | None |
| Suspension Type | Cush Air Ride Suspension-25K |
| Dump Type | Auto |
| Ride Height Adjuster | No |
| Riser (Transition) Ramp | 35° Rear Bridge Ramp |
| Rear Deck Beam | 16.5" |
| Rear Well Style | Boom & Bucket Well |
| D-Ring in Tail | 2 |
| Flip Axle Set Up | No |
| Rear Deck Option (Beavertail) | Yes |
| Wood | Apitong Full Width |
| Wheel Covers | Steel Covered D-Plate |
| Well Decking | Removable V-Style Full Length |
| Tire | 255/70R x 22.5" H |
| Rims | Piloted All Aluminum |
| Notes | 1. Expanded Metal 1st & 2nd Bays 2. 2-extra 3/4" lights on each side of main deck 3. Grouser bars on beaver tail and wheel covers 4. Covers Color to Red, 4S2M ABS, Integrated front ramps *** Outrigger Boards with Hand Holders, 4 each *** |
