Description

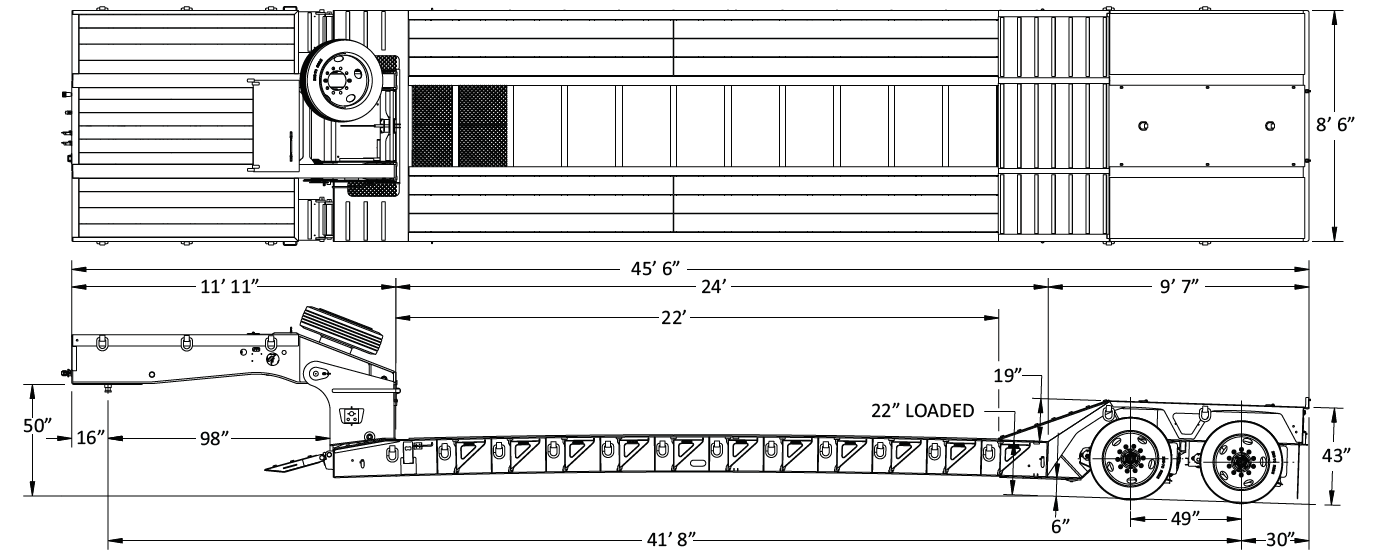

| Parameters of Product | Lowboy Trailer |
|---|---|
| Model Type | Full Deck |
| Capacity | 35-Ton GG |
| Rear Deck Height | 42" |
| Lower Deck Height | 24" |
| GN Length | 143" |
| Lower Deck Length | 288" |
| Rear Deck Length (PO) | 110" |
| Rear Deck Length (Design) | 115" |
| Overall Length | 546" |
| Overall Width | 102" |
| Ground Clearance | 8" |
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 98" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Fenders | No |
| Motor | Yes |
| Flip Box Set Up | No |
| Main Beam Center | 40" |
| Deck Main Beam | 16" |
| Deck Side Rail | 16" |
| Crossmembers | 10" & 4" |
| Outrigger Type | Full Height Removable |
| Front Ramps | Steel 18" x 31" |
| Number of Axles | 2 |
| Axle Spacings | 49" |
| Axle Track | 76.5" |
| ABS | 2S1M |
| Axle 1 | Fixed Type 30/30 ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | None |
| Axle 4 | None |
| Suspension Type | Cush Air Ride Suspension-25K |
| Dump Type | Auto |
| Ride Height Adjuster | No |
| Riser (Transition) Ramp | |
| Rear Deck Beam | 16.5" |
| Rear Well Style | Level Flush Across Rear Deck |
| D-Ring in Tail | 2 |
| Flip Axle Set Up | No |
| Rear Deck Option (Beavertail) | No |
| Wood | Oak Open Center |
| Wheel Covers | Steel Covered D-Plate |
| Well Decking | Removable D-Plate Flush |
| Tire | 255/70R x 22.5" H |
| Rims | Piloted Steel |
| Notes | 1) Four Apitong outrigger boards stored in the center bay 2) Air brake jumper hose 3) Flange Stiffners 4) Spare tire and Rim Mounted 5) Hubometer front axle, driver side 6) Removable Wide Load signs and holder brackets 7) Wood-filled platform deck, full-width on gooseneck, including tie down D-Rings on both sides 8) Full coverage rear deck, diamond plate, with a reduced approach angle for loading wheeled or drum equipped equipment, rear well style: diamond plate level flush across rear deck |
