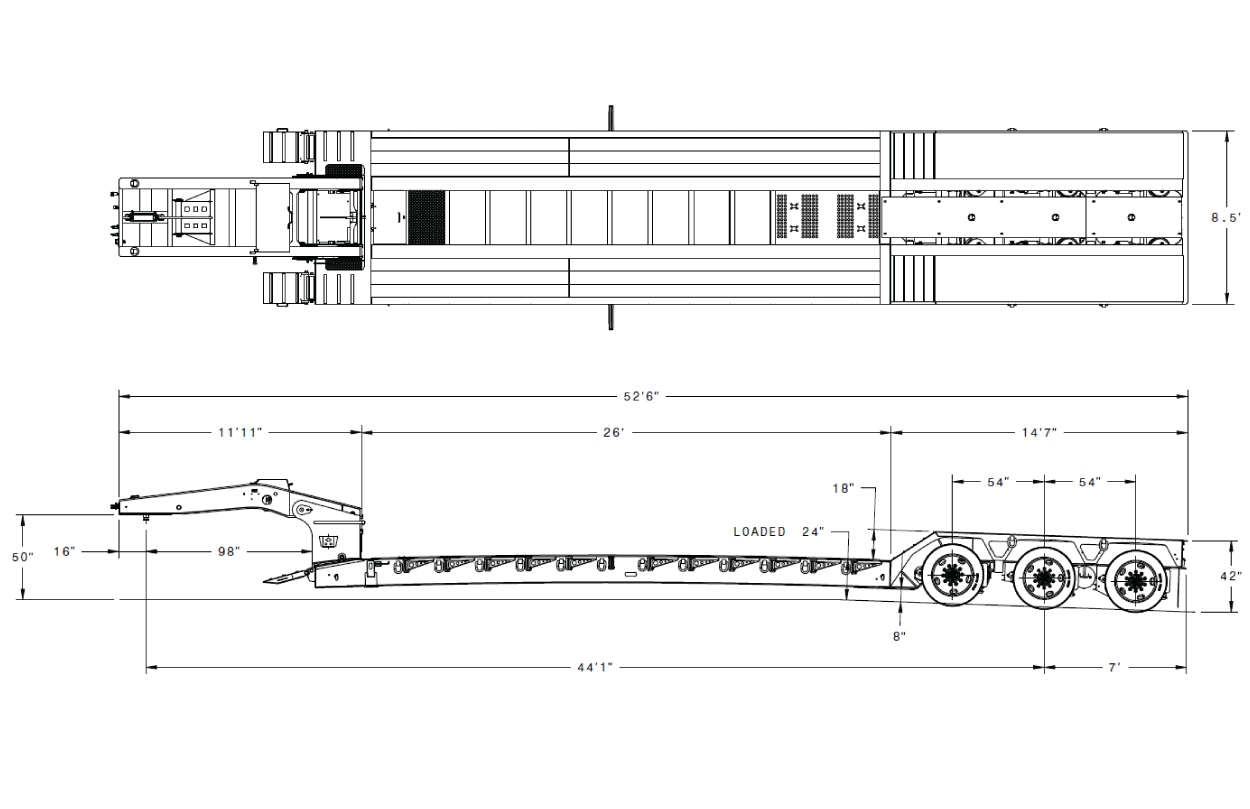

Lowboy · Drawing

00343238

GTBN513-53-26-GG

Download PDF

Capacity: 51-Ton GG
Number of Axles: 3
Lower Deck Length: 26' I 312"
Overall Length: 631.5"
Rear Deck Height: 42"
Lower Deck Height: 24"
KingPin Style: Fixed
Model Type: Full Deck

Specifications 47 of 49 fields recorded

Show empty fields

Dimensions & Capacity

Model Type	Full Deck
Capacity	51-Ton GG
Rear Deck Height	42"
Lower Deck Height	24"
Lower Deck Length	26' I 312"
Rear Deck Length (PO)	176.5"
Rear Deck Length (Design)	174"
Overall Length	631.5"
Overall Width	102"
Ground Clearance	8"

Gooseneck & King Pin

GN Length	143"
KingPin Style	Fixed
KingPin Setting	16"
Swing Clearance	98"
Fifth Wheel Height	50"
Ride Height	5-Position
Well Decking	Removable D-Plate Full Length

Frame & Deck

Main Beam Center	40"
Deck Main Beam	16"
Deck Side Rail	16"
Crossmembers	10" & 4"
Outrigger Type	Removable Standard
Front Ramps	Steel 18" x 31"
Riser (Transition) Ramp	35° Rear Bridge Ramp
Rear Deck Beam	16.5"
Rear Well Style	Boom & Bucket Well
D-Ring in Tail	2
Rear Deck Option (Beavertail)	No
Wood	Apitong Open Center
Wheel Covers	Steel Covered D-Plate
Rear Bolster D-Rings	—

Axles & Suspension

Number of Axles	3
Axle Spacings	54"
Axle Track	76.5"
ABS	4S2M
Axle 1	Fixed Type 30/30 ABS
Axle 2	Fixed Type 30/30 ABS
Axle 3	Super Lift Type 30 Non-ABS
Axle 4	None
Suspension Type	Cush Air Ride Suspension-25K
Dump Type	Auto
Ride Height Adjuster	No
Flip Axle Set Up	No

Wheels & Electrical

Tire	255/70R x 22.5" H
Rims	Piloted All Aluminum

Options & Finish

Fenders	No
Motor	Yes
Flip Box Set Up	No
Wide Load Sign Cutout	—

Notes

1. Trailer to have the Veskema Equipment limited edition package which includes: 2. Expanded metal on 1st bay with lockable lid and 2nd bay (No lid) behind gooseneck. 3. Trailers to have DOT inspection and sticker before shipping 4. Trailer includes night Light Package with battery 5. All aluminum wheels
