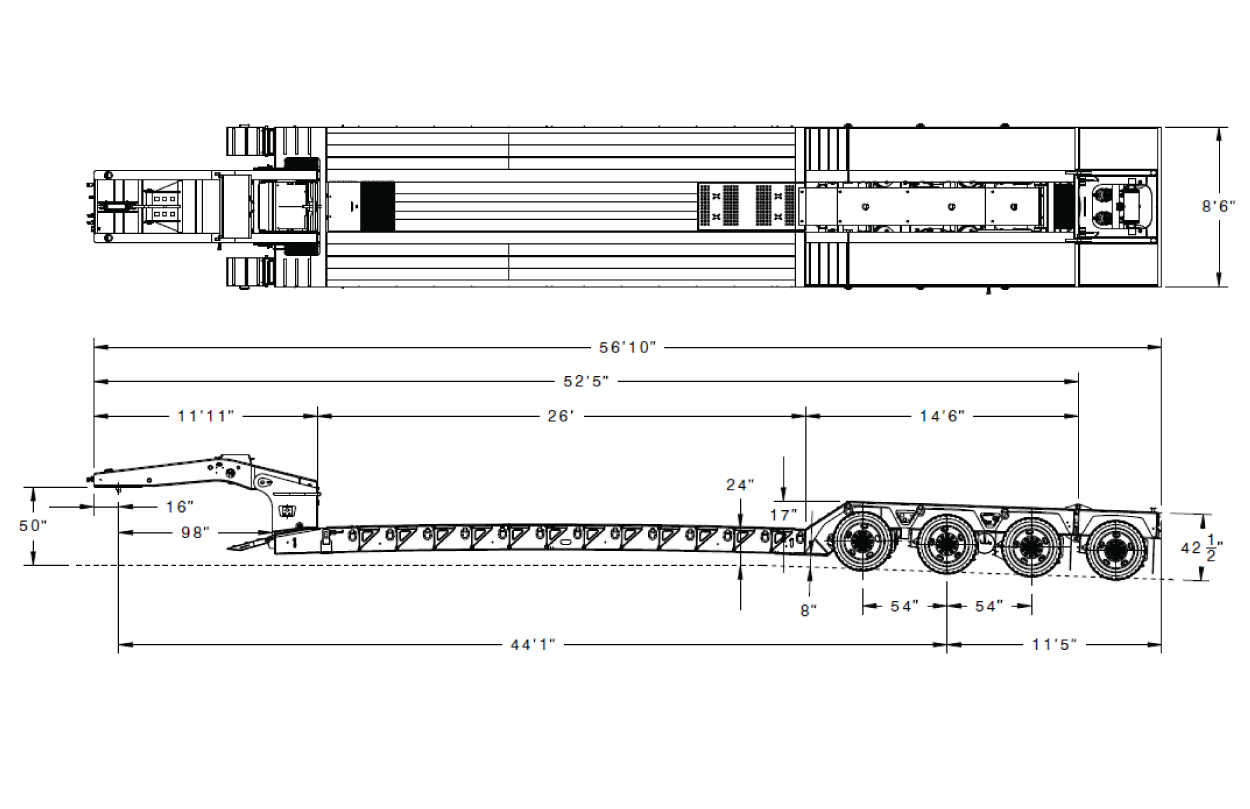

Description
| Parameters of Product | Lowboy Trailer |
|---|---|
| Model Type | Full Deck |
| Capacity | 55-Ton HGG |
| Rear Deck Height | 42" |
| Lower Deck Height | 24" |
| GN Length | 143" |
| Lower Deck Length | 312" |
| Rear Deck Length (PO) | 179" |
| Rear Deck Length (Design) | Redesign |
| Overall Length | 634.5" |
| Overall Width | 102" |
| Ground Clearance | 8" |
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 98" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Fenders | No |
| Motor | Yes |
| Flip Box Set Up | No |
| Main Beam Center | 40" |
| Deck Main Beam | 16" |
| Deck Side Rail | 16" |
| Crossmembers | 10" & 4" |
| Outrigger Type | Full Height Removable |
| Front Ramps | Steel 18" x 31" |
| Number of Axles | 4 |
| Axle Spacings | 54" |
| Axle Track | 76.5" |
| ABS | 4S2M |
| Axle 1 | Fixed Type 30/30 ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Super Lift Type 30 Non-ABS |
| Axle 4 | Hydraulic Flip Type 30 Non-ABS |
| Suspension Type | Cush Air Ride Suspension-25K |
| Dump Type | Auto |
| Ride Height Adjuster | No |
| Riser (Transition) Ramp | 35° Rear Bridge Ramp |
| Rear Deck Beam | 16.5" |
| Rear Well Style | Boom & Bucket Well |
| D-Ring in Tail | 3 |
| Flip Axle Set Up | Set Up for Hydraulic Powered Flip |
| Rear Deck Option (Beavertail) | No |
| Wood | Apitong Full Width |
| Wheel Covers | Steel Covered D-Plate |
| Well Decking | Removable D-Plate Full Length |
| Tire | 275/70R x 22.5" H |
| Rims | Piloted All Aluminum |
| Notes | ***Reproduction of 150709*** Trailer to have the Veskerna Equipment limited edition package which includes: - Please place the toggle switches for the strobes and nightlight package within the bolster w/ the dump valve. -Expanded metal on 1st bay with lockable lid and 2nd bay (No lid) behind gooseneck. -Trailers to have DOT inspection and sticker before shipping -Trailer includes night Light Package with battery -All aluminum wheels -Placement of D-rings on rear deck: 3 d-rings per side of rear deck, 1 at the transition, 1 on each bolster. Add 4 d-rings inside of boom well; 2 each side welded to cross members. See Luis or David if explanation is needed. -Add four (4) additional 2 1/2" round clearance lights, each side of main deck, evenly spaced. - GTZY101-5 Flip Axle, Air Ride 171021 |
