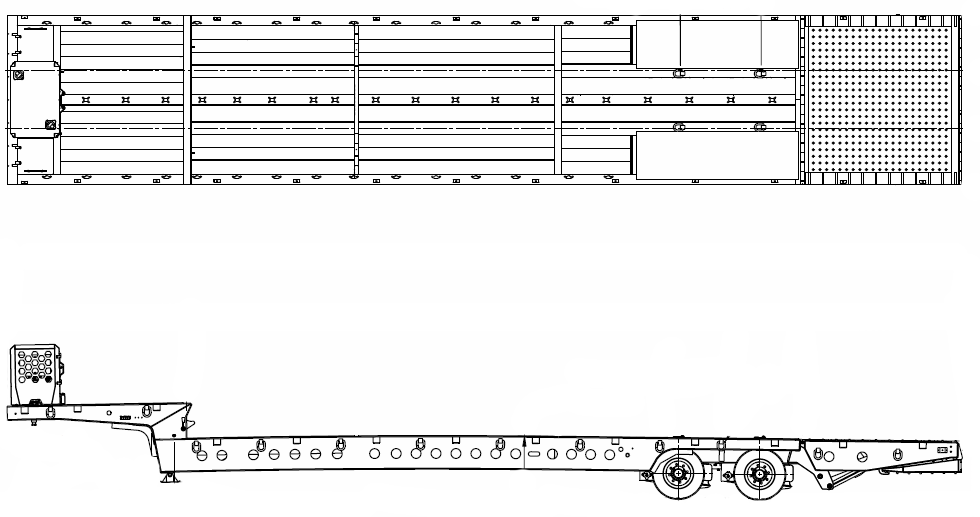

00124107
Parameters of Product
Hydraulic Trailer
Model Number
00124107
Capacity
40 Ton
Overall Length
576-inch
Overall Width
102-inch
Gooseneck Length
108-inch
Swing Clearance
86-inch
5th Wheel Height
49-inch
Loadwell Length
371-inch
Loadwell Height
36-inch
Rear Deck Height
36-inch
Hydraulic Tail Length
8'
Flip Under Ramp Length
4'
King Pin Setting
16-inch
Axle Spacing
49-inch
Main Beam Center
35-inch
Number of Axles
2
Axle Track
71.5-inch
Cross Member
10-inch on loadwell & 4-inch on neck & rear deck
Main Frame
20-inch fabricated I-Beam
Axle Capacity
25k
King Pin
2-inch heavy duty
Tires
235/75R X 17.5 H
Rims
6.75 X 17.5, Hub piloted Alum disc wheels
Brakes
12 ¼ X 7 ½
ABS
4S2M
Landing Gear
2-Speed landing gear
Rear Folding Tail
12’ hydraulic tail
Suspension
Air ride suspension
Lights
LED mounted in rubber grommets
Connectors
7 way SAE connector
Hydraulics
25 HP Honda engine
Winch
20,000# hydraulic winch
Decking
apitong flooring
Number of D-Rings
Finish
Black
Notes
1). 20,000# Winch with 85' cable 2). 4 Function wireless remote 3). Air weight scale 4). Auto Tire Inflation System 5). Registration/Document Holder
