Description

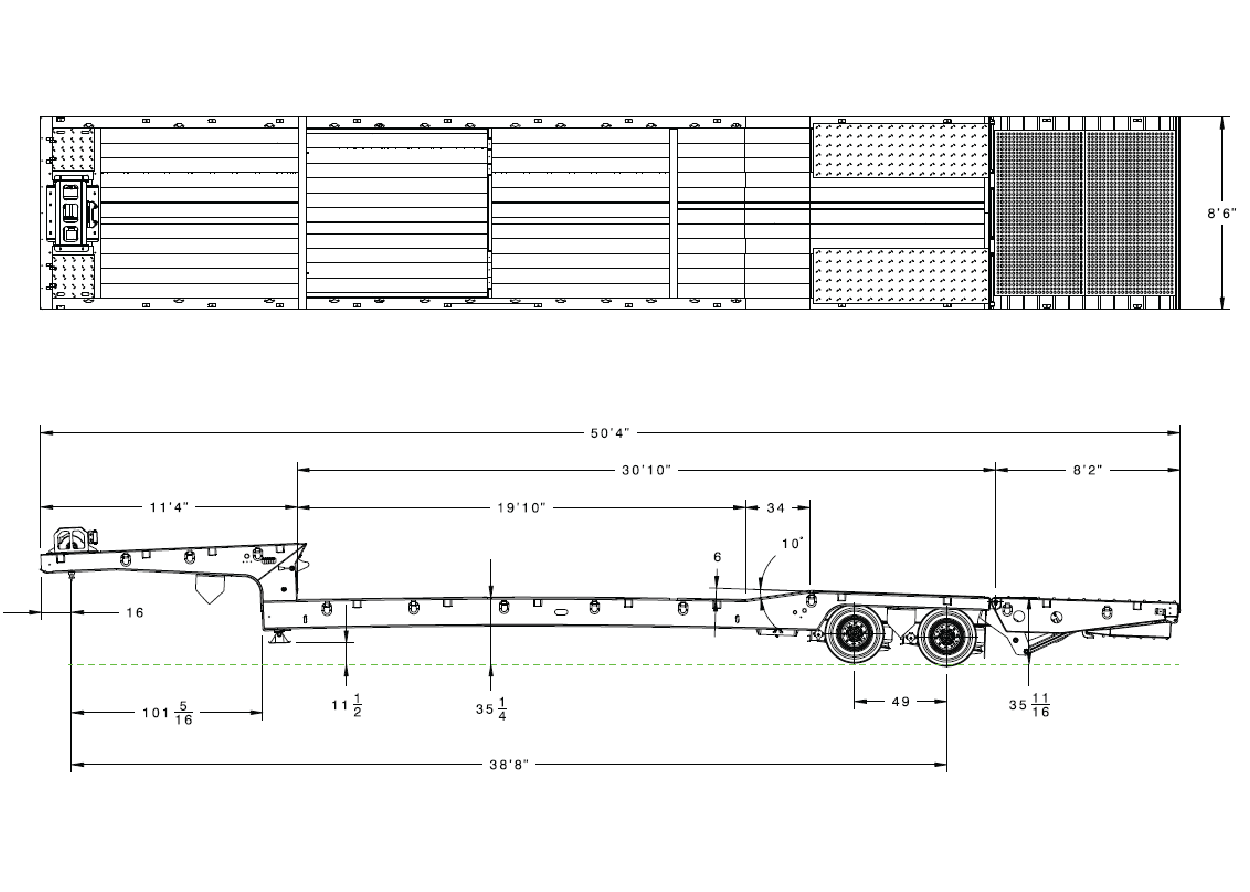

| Parameters of Product | Hydraulic Trailer |
|---|---|
| Capacity | 35 Ton |
| Overall Length | 604" |
| Overall Width | 102" |
| Gooseneck Length | 136" |
| Swing Clearance | 101.31" |
| Fifth Wheel Height | 49" |
| Loadwell Length | 238" |
| Loadwell Height | 35.25" |
| Rear Deck Height | 35.68" |
| Hydraulic Tail Length | 8' 2" |
| Flip Under Ramp Length | |
| King Pin Setting | 16" |
| Axle Spacing | 49” |
| Main Beam Center | |
| Number of Axles | 2 |
| Axle Track | |
| Cross Member | 10” on loadwell & 4” on neck & rear deck |
| Main Frame | 15" fabricated I-Beam |
| Axle Capacity | 25k |
| King Pin | 2" fixed |
| Tires | 235/75R X 17.5 “H” |
| Rims | 6.75 X 17.5 Steel Wheels |
| Brakes | 12 ¼ X 7 ½ |
| ABS | 4S2M |
| Landing Gear | 2-Speed landing gear |
| Rear Folding Tail | |
| Suspension | Air ride suspension |
| Lights | LED mounted in rubber grommets |
| Electrical Connector | 7 way SAE connector |
| Hydraulics | Wet-line setup for tractor |
| Winch | 20,000# hydraulic winch |
| Decking | apitong flooring |
| Number Of D-Rings | 11 Each side |
| Finish | Sandblast & Powder Coat |
