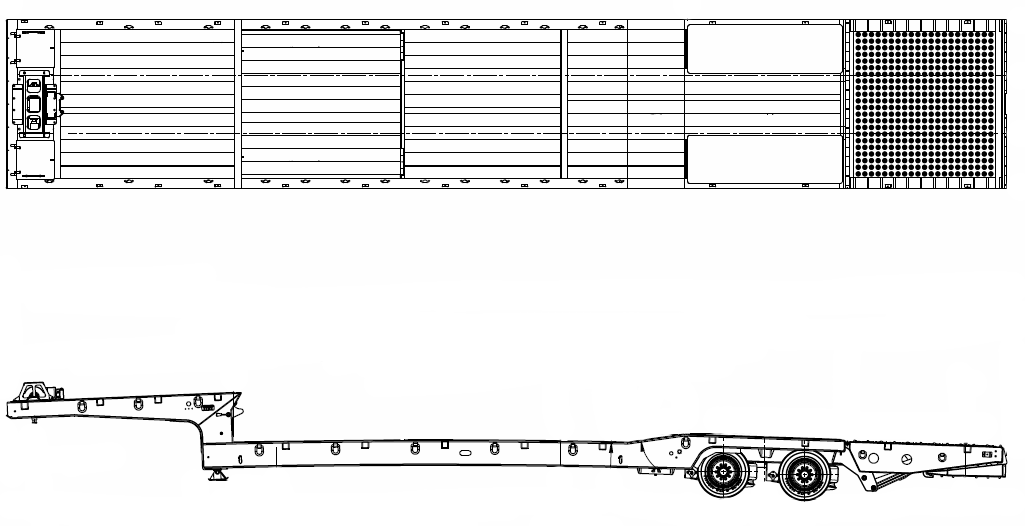

00267284
Parameters of Product
Hydraulic Trailer
Model Number
00267284
Capacity
35 Ton
Overall Length
599-inch
Overall Width
102-inch
Gooseneck Length
132-inch
Swing Clearance
110-inch
5th Wheel Height
49-inch
Loadwell Length
237.5-inch
Loadwell Height
37-inch
Rear Deck Height
39-inch
Hydraulic Tail Length
8'
Flip Under Ramp Length
4'
King Pin Setting
16-inch
Axle Spacing
49-inch
Main Beam Center
35-inch
Number of Axles
2
Axle Track
71.5-inch
Cross Member
8-inch and 10-inch I-beams on 12-inch Centers
Main Frame
fabricated I-Beam
Axle Capacity
25k
King Pin
2-inch heavy duty
Tires
235/70R X 17.5 H
Rims
6.75 X 17.5, 8 hole hub steel wheels
Brakes
12 ¼ X 7 ½
ABS
4S2M
Landing Gear
2-Speed landing gear
Rear Folding Tail
12’ hydraulic tail
Suspension
Air ride suspension
Lights
LED mounted in rubber grommets
Connectors
7 way SAE connector
Hydraulics
Wet-line setup for tractor
Winch
20,000# hydraulic winch
Decking
apitong flooring
Number of D-Rings
Finish
Globe Red
Notes
1). 8' Hydraulic recessed upper deck ramp. 2). Double drop deck, 6" drop approx. IO degree angle. 3). Flat section over wheel area to be covered with d-plate. Ram section to be A_piton woo Grouser bars welded on outside of tail, ramp, and extended ramp sections. 4). Two (2) 4" round amber strobes at rear w/ on/off switch 5). Two (2) built in tool boxes in neck 6). Two (2) flag holders on each side of main deck
