Tag Along · Drawing
00741218
GTTU202-33-23
- Capacity
- 20-Tons
- Deck Length
- 23'
- Number Of Axles
- 2
- Overall Length
- 33' 2"
- Deck Height
- 34"
- Ramp Type
- Hydraulic
Specifications 40 of 42 fields recorded
Dimensions & Capacity
| Capacity | 20-Tons |
|---|---|
| Deck Length | 23' |
| Beavertail Length | 60" |
| Overall Length | 33' 2" |
| Overall Width | 102" |
| Deck Height | 34" |
Gooseneck & King Pin
| Drawbar Length | 62.5" |
|---|---|
| Hitch Type | 3" Pintle Hitch |
Frame & Deck
| Main Beam | 14 x 6.75 @ 30# |
|---|---|
| Main Beam Centers | 39" |
| Side Rails | 8" Channel |
| Crossmembers | 4" IB |
| Spacing | 16" |
| Bumper | 10" Channel |
| Header | 8" Channel |
| D-Rings | 10 each side |
| Toolbox | Lockable w/ Steel Grating |
| Ramp Size | Rear Ramps 36 x 60 |
| Ramp Type | Hydraulic |
| Ramp Floor | Cleated |
| Main Deck Flooring | Oak Full Width |
| Beavertail Flooring | All metal plate; no wood in center |
| Outrigger | NA |
Axles & Suspension
| Number Of Axles | 2 |
|---|---|
| Axle Spacing | 49" |
| Axle Cap | 25,000# |
| Axle Track | 76 1/2" |
| Brakes | 12 1/4" x 7 1/2" - 25K |
| ABS | 2S1M |
| Axle 1 | Fixed Type 30 Non-ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | — |
| Axle 4 | — |
| Suspension | Spring Ride 25K |
| Landing Gear | Dual 2-Speed 50K Drop Leg Jacks - 17" |
Wheels & Electrical
| Lights | LED S/T/T Only |
|---|---|
| Connector | 7 Way Connector |
| Tires | 235/75R x 17.5 H |
| Rims | 6.75 x 17.5 Hub Piloted Steel (Black) |
Options & Finish
| Hydraulics | Wet Line Kit - Wing Nut Connection |
|---|---|
| Hydraulics Power | Wet Line Kit - Wing Nut Connection |
| Finish | Sandblast & Powder Coat |

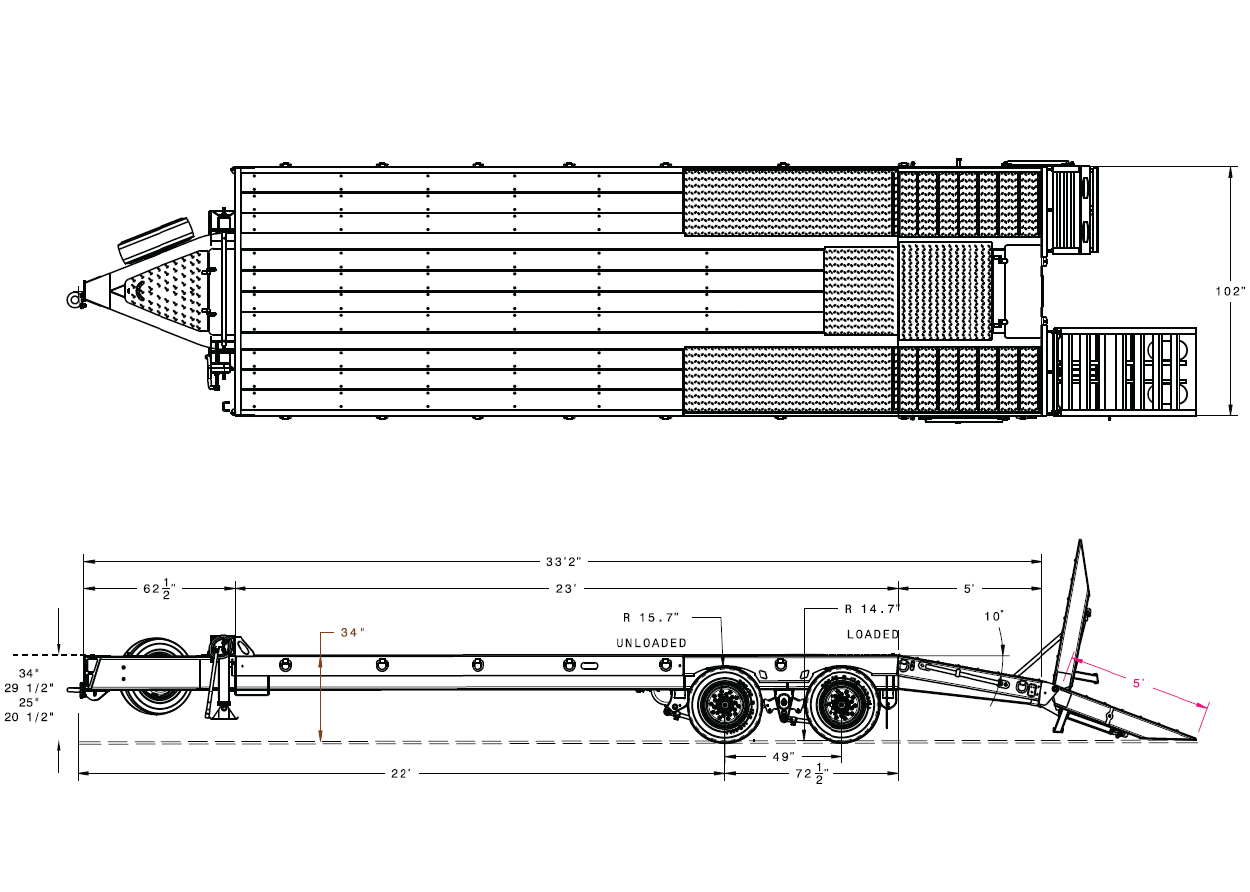

Click the drawing to zoom.
