Capacity: 20-Tons
Deck Length: 24'
Number Of Axles: 2
Overall Length: 34' 2"
Deck Height: 34"
Ramp Type: Hydraulic

Specifications 37 of 42 fields recorded

Show empty fields

Dimensions & Capacity

Capacity	20-Tons
Deck Length	24'
Beavertail Length	60"
Overall Length	34' 2"
Overall Width	102"
Deck Height	34"

Gooseneck & King Pin

Drawbar Length	62.5"
Hitch Type	3" Pintle Hitch

Frame & Deck

Main Beam	14 x 6.75 @ 30#
Main Beam Centers	39"
Side Rails	8" Channel
Crossmembers	4" IB
Spacing	12"
Bumper	10" Channel
Header	8" Channel
D-Rings	11 each side
Toolbox	Lockable w/ Steel Grating
Ramp Size	Rear Ramps 36 x 60
Ramp Type	Hydraulic
Ramp Floor	Cleated
Main Deck Flooring	1.75" Apitong Full Width
Beavertail Flooring	Steel Covered D-Plate w/Grousers
Outrigger	NA

Axles & Suspension

Number Of Axles	2
Axle Spacing	49"
Axle Cap	25,000#
Axle Track	—
Brakes	12 1/4" x 7 1/2" - 25K
ABS	2S1M
Axle 1	Fixed Type 30/30 ABS
Axle 2	Fixed Type 30/30 Non-ABS
Axle 3	—
Axle 4	—
Suspension	Spring Ride 25K
Landing Gear	Dual 2-Speed 50K Drop Leg Jacks - 17"

Wheels & Electrical

Lights	LED S/T/T Only
Connector	7 Way Connector
Tires	215/75R x 17.5 H
Rims	6.75 x 17.5 Hub Piloted Outer Aluminum

Options & Finish

Hydraulics	—
Hydraulics Power	—
Finish	Black

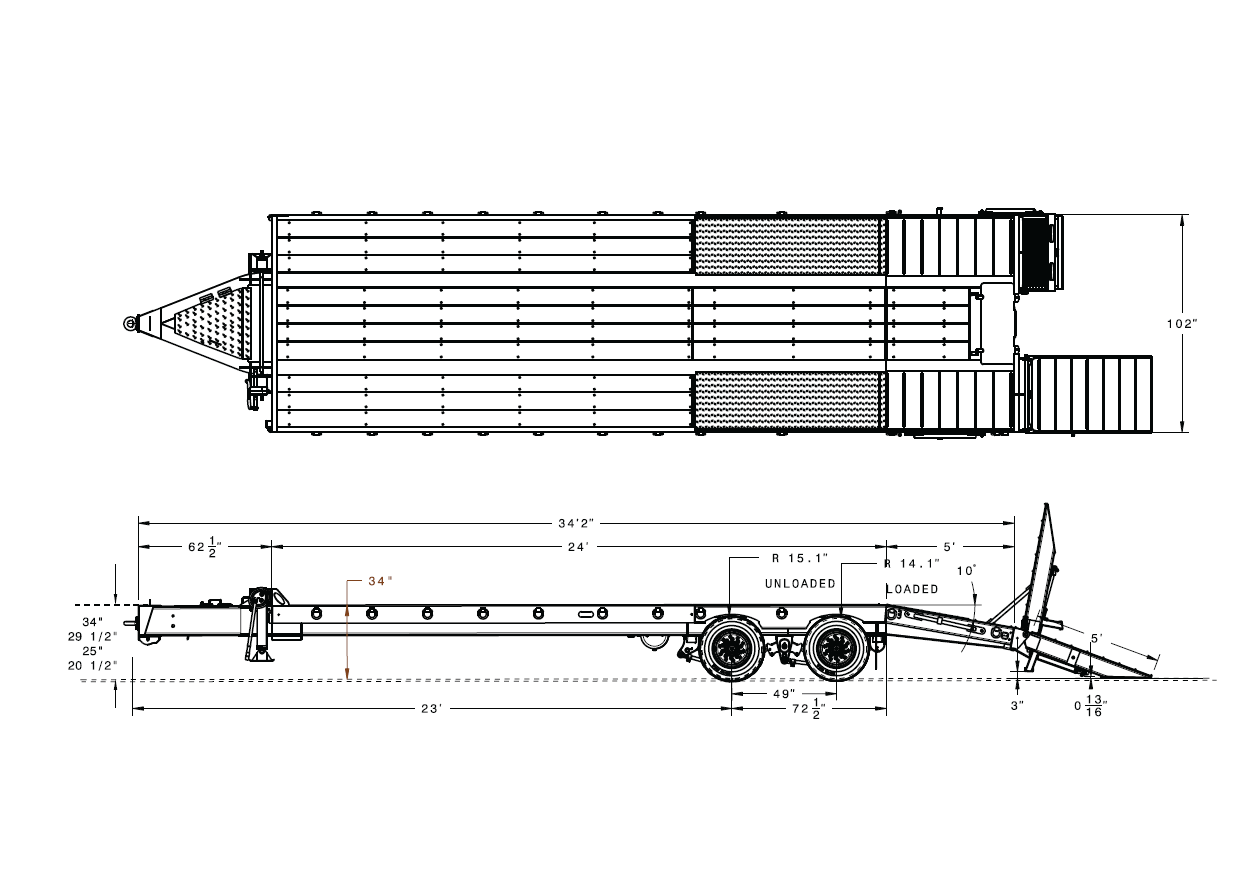

Click the drawing to zoom.
