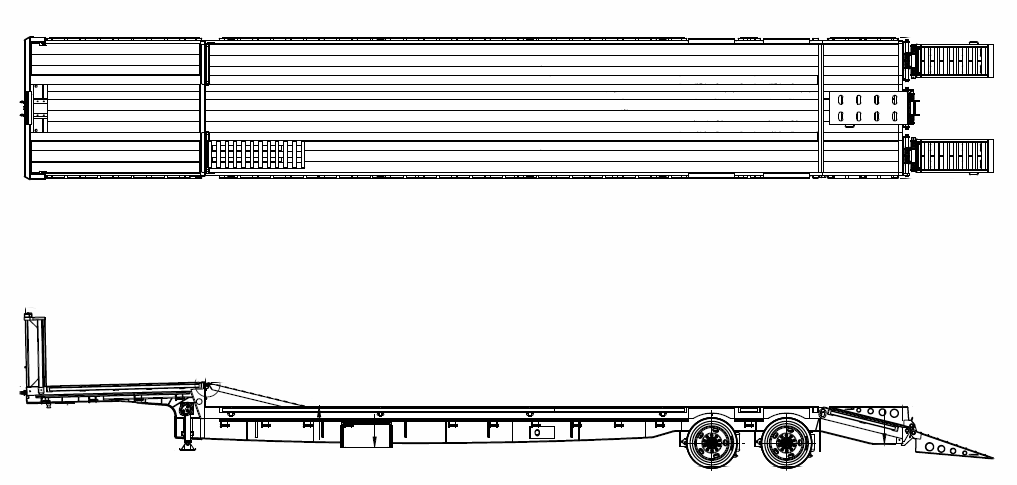

GTFS402-53-37
00313758
Contact Us

Parameters of Product

Single Drop Trailer

Model Number

GTFS402-53-37

Capacity

40 Ton

Category

Regular

Overall Length

636-inch

Overall Width

102-inch

Overall Front Height

111

Fording Depth

NA

Gooseneck Length

130-inch

5th Wheel Height

45-inch

Upper Deck Height

57

Rear Deck Height

43

Load Well Length

504-inch

King Pin Setting

16

Swing Clearance

91.25-inch

Main Beam Center

41

Axle Spacing

54

Number of Axle

2 ea

Axle Track

76.5

Beaver Tail Length

60-inch

RAMPS

3 lay flat spring loaded, 24-inch x 60-inch ramps

Cross Member

4-inch Jr. I-Beams on 12-inch Centers

Main Frame

Fabricated I-Beam

Side Rail

6-inch Structural Channel

Neck

Full Width(Wood Covered)

Axle Capacity

25K

King Pin

2-inch Heavy Duty

Tires

255/70R X 22.5 H

Wheels

8.25 X 22.5, 10 Hole Hub Piloted Aluminum Wheels

Brakes

16 ½-inch X 7 Full Air Brakes

ABS

2S1M

Landing Gear

2-Speed Landing Gear-4 hole

Suspension

Air Ride Suspension

Lighting

Lighting LED in Rubber Grommet

Connector

7 Way SAE Connector

Decking

Apitong Flooring

Outriggers

No

D Rings

Yes

Tie Downs

No

Winches & Webbings

Yes

Container Locks

Null

Front Header

Header board with storage area for chains and binders

Stake Pocket

1 5/8-inch x 3 ½-inch x ¼-inch & 3/8-inch x 2 ½-inch rub rail & sides and rear with double pipe spools

Finish

White Primed and Powder BLACK

Plates/Markings

NA

Notes

1. Mud flaps
2. (2) Aluminum Storage box 36” x 18” x 18”
3. Pull out aluminum ramps built into neck to load wheeled vehicles onto upper deck
4. 10K electric winch mounted on front or top deck
