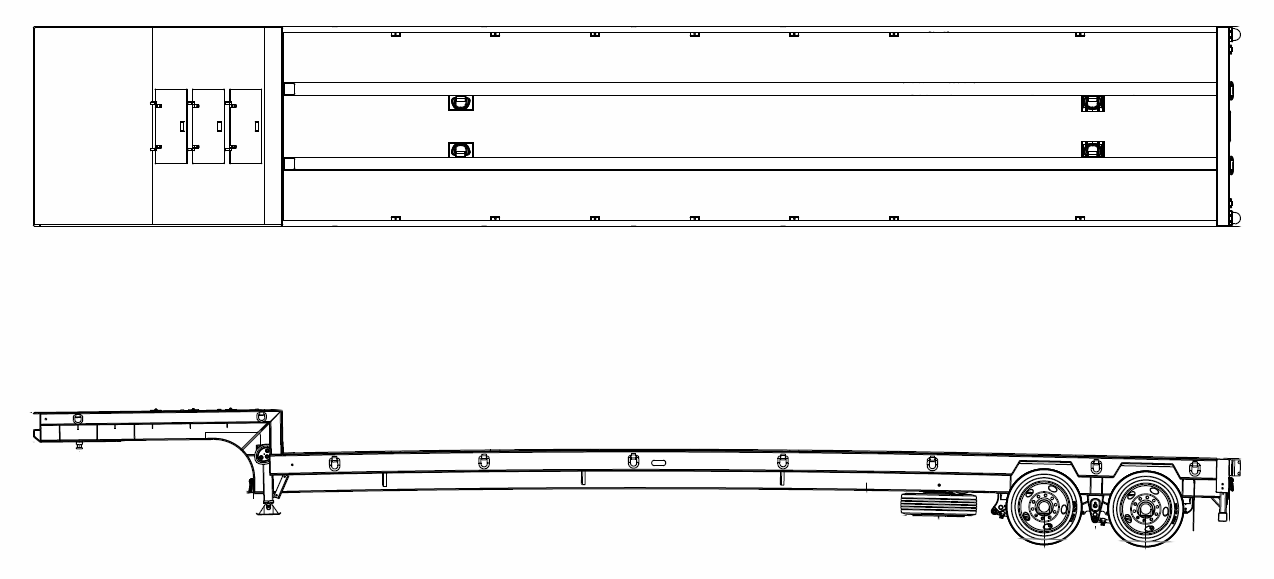

GTFS402-48-38
Parameters of Product
Single Drop Trailer
Model Number
GTFS402-48-38
Capacity
20 Ton
Category
Special
Overall Length
582-inch
Overall Width
96-inch
Overall Front Height
NA
Fording Depth
NA
Gooseneck Length
120-inch
5th Wheel Height
48-inch
Upper Deck Height
62
Rear Deck Height
41
Load Well Length
456.5-inch
King Pin Setting
22
Swing Clearance
84-inch
Main Beam Center
36
Axle Spacing
49
Number of Axle
2 ea
Axle Track
71.5
Beaver Tail Length
NA
RAMPS
NA
Cross Member
4-inch Jr. I-Beams on 24-inch Centers
Main Frame
Fabricated I-Beam
Side Rail
6-inch Structural Channel
Neck
Full Width(Steel Covered)
Axle Capacity
25K
King Pin
2-inch Heavy Duty
Tires
255/70R X 22.5 H
Wheels
8.25 x 22.5, 10 hole hub piloted steel disc wheels
Brakes
16 ½-inch X 7 Full Air Brakes
ABS
2S1M
Landing Gear
2-Speed Landing Gear-4 hole
Suspension
Spring Ride Suspension
Lighting
Lighting LED in Rubber Grommet
Connector
7 Way SAE Connector
Decking
Oak Flooring
Outriggers
No
D Rings
Yes
Tie Downs
Yes
Winches & Webbings
No
Container Locks
Null
Front Header
Null
Stake Pocket
1 5/8-inch x 3 ½-inch x 3 ½-inch x ¼-inch (Having a Plate at the Bottom w/ Drain Hole)
Finish
White Primed and Powder Coated OD Green
Plates/Markings
Transportation Plates
Notes
1. Three (3) tool box compartments in center of gooseneck, lengthwise.
2. One (1) Spare Tire with Carrier, removable. (see text box added by EM below) R2.
3. Glad hands polarized and identified service and emergency with glad hand covers/lanyards.
4. Eight (8) 5,000 lb rated commercial cargo straps provided 20’ in length, compatible with tie down points, stored in toolbox.
5. Air Transportable on C-5 & C-17, IAW MIL-HDBK-1791.
6. Manuals provided IAW DFARS 252.227-7015.
2. One (1) Spare Tire with Carrier, removable. (see text box added by EM below) R2.
3. Glad hands polarized and identified service and emergency with glad hand covers/lanyards.
4. Eight (8) 5,000 lb rated commercial cargo straps provided 20’ in length, compatible with tie down points, stored in toolbox.
5. Air Transportable on C-5 & C-17, IAW MIL-HDBK-1791.
6. Manuals provided IAW DFARS 252.227-7015.
