GTBN513-52-26-GG
- 51-Ton GG
- 3
- 312"

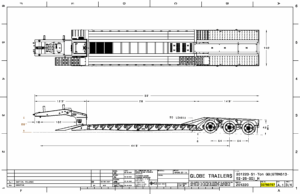

Lowboy · Drawing
01391837
GTBN513-52-26-GG
- Capacity
- 51-Ton GG
- Number of Axles
- 3
- Lower Deck Length
- 26'
- Overall Length
- 627"
- Rear Deck Height
- 42"
- Lower Deck Height
- 22"
- KingPin Style
- Fixed
- Model Type
- Full Deck
Specifications 39 of 49 fields recorded
Dimensions & Capacity
| Model Type | Full Deck |
|---|---|
| Capacity | 51-Ton GG |
| Rear Deck Height | 42" |
| Lower Deck Height | 22" |
| Lower Deck Length | 26' |
| Rear Deck Length (PO) | 172" |
| Rear Deck Length (Design) | — |
| Overall Length | 627" |
| Overall Width | 102" |
| Ground Clearance | 6" |
Gooseneck & King Pin
| GN Length | 143" |
|---|---|
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 98" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Well Decking | Removable D-Plate - Full Length |
Frame & Deck
| Main Beam Center | 40" |
|---|---|
| Deck Main Beam | 16" T-1 Steel Std. |
| Deck Side Rail | 16" T-1 Steel |
| Crossmembers | 10" & 4" |
| Outrigger Type | Removable Std. |
| Front Ramps | Integrated Fixed Ramps |
| Riser (Transition) Ramp | 90° w/6' Air Transition Ramps |
| Rear Deck Beam | 16.5" T-1 Steel |
| Rear Well Style | Boom & Bucket Well |
| D-Ring in Tail | 2 Ea Side ***LARGE BENT*** |
| Rear Deck Option (Beavertail) | — |
| Wood | 1.75" Apitong - Open Center |
| Wheel Covers | Steel Covered D-Plate |
| Rear Bolster D-Rings | — |
Axles & Suspension
| Number of Axles | 3 |
|---|---|
| Axle Spacings | 54" |
| Axle Track | 76 1/2" |
| ABS | 4S2M |
| Axle 1 | Fixed Type 30/30 ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Super Lift Type 30 Non-ABS |
| Axle 4 | — |
| Suspension Type | Cush Air Ride Suspension - 25K |
| Dump Type | Auto |
| Ride Height Adjuster | — |
| Flip Axle Set Up | — |
Wheels & Electrical
| Tire | 255/70R x 22.5 "H" |
|---|---|
| Rims | 8.25 x 22.5 Hub Piloted Outer Aluminum |
Options & Finish
| Fenders | — |
|---|---|
| Motor | — |
| Flip Box Set Up | — |
| Wide Load Sign Cutout | — |
Notes
Expanded metal in 1st bay with lockable lid & 2nd bay open storage behind GN
Chain rack inside of GN based
(1) light between each outrigger
Additional lights down middle of main deck in every other bay
(6) sets of lights spaced evenly in boom well
Chain slots down both sides of main deck and rear deck
(1) set of d-rings on the inside beams of 3rd bay, 7th bay,& center of bucket pan
(1) set of d-rings on inner tail beams at top of transition and most rear of tail
Trailer to have DOT inspection and sticker before shipping
ALL D-RINGS TO BE LARGE BENT STYLE
