00806289
GTBN553-56-28-HGG
- 55-Ton HGG
- 4
- 336"

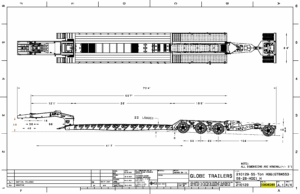

Lowboy · Drawing
01294632
GTBN553-56-28-HGG
- Capacity
- 55-Ton HGG
- Number of Axles
- 4
- Lower Deck Length
- 28'
- Overall Length
- 55' 6"
- Rear Deck Height
- 42"
- Lower Deck Height
- 22"
- KingPin Style
- 2-Position Removable
- Model Type
- Paver Deck
Specifications 42 of 49 fields recorded
Dimensions & Capacity
| Model Type | Paver Deck |
|---|---|
| Capacity | 55-Ton HGG |
| Rear Deck Height | 42" |
| Lower Deck Height | 22" |
| Lower Deck Length | 28' |
| Rear Deck Length (PO) | 173" |
| Rear Deck Length (Design) | — |
| Overall Length | 55' 6" |
| Overall Width | 102" |
| Ground Clearance | 6" |
Gooseneck & King Pin
| GN Length | 157" |
|---|---|
| KingPin Style | 2-Position Removable |
| KingPin Setting | 16" & 40" |
| Swing Clearance | 110" & 86" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Well Decking | Removable D-Plate - Full Length |
Frame & Deck
| Main Beam Center | 40" |
|---|---|
| Deck Main Beam | 16" T-1 Steel Std. |
| Deck Side Rail | 16" T-1 Steel |
| Crossmembers | 10" & 4" on 12" Centers |
| Outrigger Type | Full Height Removable |
| Front Ramps | Paver Ramps 22" x 41" |
| Riser (Transition) Ramp | 90° w/6' Air Transition Ramps |
| Rear Deck Beam | 16.5" T-1 Steel |
| Rear Well Style | Boom & Bucket Well |
| D-Ring in Tail | 3 Ea Side |
| Rear Deck Option (Beavertail) | — |
| Wood | 1.75" Apitong - Open Center |
| Wheel Covers | Steel Covered D-Plate |
| Rear Bolster D-Rings | — |
Axles & Suspension
| Number of Axles | 4 |
|---|---|
| Axle Spacings | 54" |
| Axle Track | 76 1/2" |
| ABS | — |
| Axle 1 | Fixed Type 30/30 ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Super Lift Type 30 Non-ABS |
| Axle 4 | Hydraulic Flip Type 30 Non-ABS |
| Suspension Type | Cush Air Ride Suspension - 25K |
| Dump Type | Manual |
| Ride Height Adjuster | Yes |
| Flip Axle Set Up | Set up for hydraulic powered flip |
Wheels & Electrical
| Tire | 275/70R x 22.5 "H" |
|---|---|
| Rims | 8.25 x 22.5 Hub Piloted Outer Aluminum |
Options & Finish
| Fenders | — |
|---|---|
| Motor | — |
| Flip Box Set Up | 24" Flip Box & Set Up |
| Wide Load Sign Cutout | — |
Notes
Flange reinforcements
Trailer to have chain slots on outer rails
Trailer to have 1 light per outrigger running down side of trailer
Lockable toolbox in bay 1 behind gooseneck with open storage in bay 2, 3, and last bay before bucket well
Trailer to have 1 pair of d rings in every other bay starting in bay 2 and 2 sets in bucket well evenly spaced.
