01435763
GTBN553-54-26-HGG
- 55-Ton HGG
- 3
- 26'
Lowboy · Drawing
01260619
GTBN553-54-26-HGG
- Capacity
- 55-Ton HGG
- Number of Axles
- 3
- Lower Deck Length
- 26'
- Overall Length
- 640"
- Rear Deck Height
- 42"
- Lower Deck Height
- 24"
- KingPin Style
- 2-Position Removable
- Model Type
- Full Deck
Specifications 41 of 49 fields recorded
Dimensions & Capacity
| Model Type | Full Deck |
|---|---|
| Capacity | 55-Ton HGG |
| Rear Deck Height | 42" |
| Lower Deck Height | 24" |
| Lower Deck Length | 26' |
| Rear Deck Length (PO) | 173" |
| Rear Deck Length (Design) | — |
| Overall Length | 640" |
| Overall Width | 102" |
| Ground Clearance | 8" |
Gooseneck & King Pin
| GN Length | 155" |
|---|---|
| KingPin Style | 2-Position Removable |
| KingPin Setting | 16" & 28" |
| Swing Clearance | 110" & 98" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Well Decking | Open |
Frame & Deck
| Main Beam Center | 40" |
|---|---|
| Deck Main Beam | 16" T-1 Steel Std. |
| Deck Side Rail | 16" T-1 Steel |
| Crossmembers | 10" & 4" |
| Outrigger Type | Full Height Removable |
| Front Ramps | Steel 18" x 31" Std. |
| Riser (Transition) Ramp | 35° Rear Bridge Ramp |
| Rear Deck Beam | 14" T-1 Steel |
| Rear Well Style | Boom & Bucket Well |
| D-Ring in Tail | 2 Ea Side |
| Rear Deck Option (Beavertail) | — |
| Wood | 1.75" Apitong - Open Center |
| Wheel Covers | Steel Single Wheel Removable |
| Rear Bolster D-Rings | — |
Axles & Suspension
| Number of Axles | 3 |
|---|---|
| Axle Spacings | 55" |
| Axle Track | 76 1/2" |
| ABS | 2S1M |
| Axle 1 | Fixed Type 30/30 Non-ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Super Lift Type 30 Non-ABS |
| Axle 4 | — |
| Suspension Type | Cush Air Ride Suspension - 25K |
| Dump Type | Manual |
| Ride Height Adjuster | Cush Air Ride Adj. |
| Flip Axle Set Up | — |
Wheels & Electrical
| Tire | 255/70R x 22.5 "H" |
|---|---|
| Rims | 8.25 x 22.5 Hub Piloted Steel |
Options & Finish
| Fenders | — |
|---|---|
| Motor | 13 HP Honda - Gas |
| Flip Box Set Up | — |
| Wide Load Sign Cutout | — |
No drawing image on file.
Other drawings with model GTBN553-54-26-HGG
No drawing image
01387012
GTBN553-54-26-HGG
- 55-Ton HGG
- 4
- 26'
No drawing image
01300536
GTBN553-54-26-HGG
- 55-Ton HGG
- 3
- 26'
No drawing image
01281055
GTBN553-54-26-HGG
- 60-Ton HGG
- 3
- 26'
01237587
GTBN553-54-26-HGG
- 55-Ton HGG
- 4
- 26'

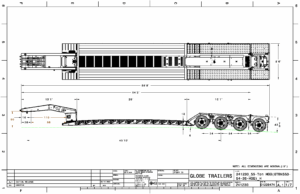

01229474
GTBN553-54-26-HGG

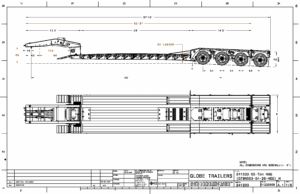

01223808
