00780927
GTBN503-57-30-GG
- 50-Ton HGG
- 3
- 360"
Lowboy · Drawing
00744024
GTBN503-57-30-GG
- Capacity
- 50-Ton GG
- Number of Axles
- 3
- Lower Deck Length
- 360"
- Overall Length
- 681"
- Rear Deck Height
- 42.62"
- Lower Deck Height
- 22"
- KingPin Style
- Fixed
- Model Type
- Full Deck
Specifications 47 of 49 fields recorded
Dimensions & Capacity
| Model Type | Full Deck |
|---|---|
| Capacity | 50-Ton GG |
| Rear Deck Height | 42.62" |
| Lower Deck Height | 22" |
| Lower Deck Length | 360" |
| Rear Deck Length (PO) | — |
| Rear Deck Length (Design) | 174" |
| Overall Length | 681" |
| Overall Width | 102" |
| Ground Clearance | 6" |
Gooseneck & King Pin
| GN Length | 147" |
|---|---|
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 102" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Well Decking | Open |
Frame & Deck
| Main Beam Center | 40" |
|---|---|
| Deck Main Beam | 16" T-1 Steel Std. |
| Deck Side Rail | 16" |
| Crossmembers | 10" & 4" |
| Outrigger Type | Full Height Removable |
| Front Ramps | Steel 18" x 31" |
| Riser (Transition) Ramp | 35° Rear Bridge Ramp |
| Rear Deck Beam | 16" |
| Rear Well Style | Boom & Bucket Well |
| D-Ring in Tail | 3 |
| Rear Deck Option (Beavertail) | No |
| Wood | Apitong Open Center |
| Wheel Covers | Steel Covered D-Plate |
| Rear Bolster D-Rings | 3 |
Axles & Suspension
| Number of Axles | 3 |
|---|---|
| Axle Spacings | 54" |
| Axle Track | — |
| ABS | 2S1M |
| Axle 1 | Fixed Type 30/30 Non-ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Super Lift Type 30 Non-ABS |
| Axle 4 | None |
| Suspension Type | Air Ride Suspension-25K |
| Dump Type | Manual |
| Ride Height Adjuster | Air Guage |
| Flip Axle Set Up | No |
Wheels & Electrical
| Tire | 275/70R x 22.5" H |
|---|---|
| Rims | Hub Piloted Steel |
Options & Finish
| Fenders | No |
|---|---|
| Motor | No |
| Flip Box Set Up | No |
| Wide Load Sign Cutout | STD 49-inch |

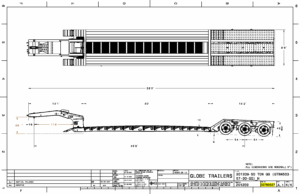

Click the drawing to zoom.

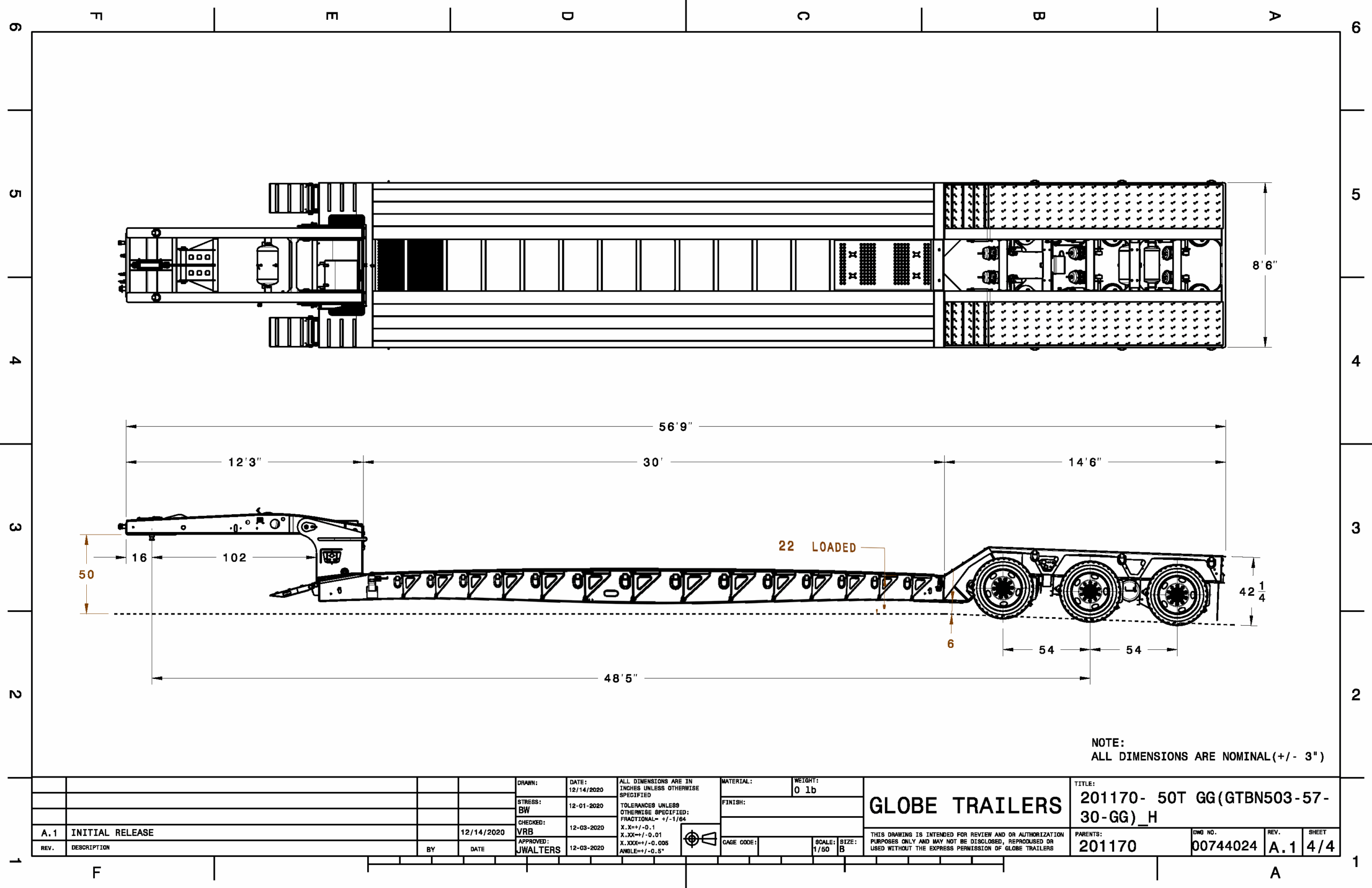

Other drawings with model GTBN503-57-30-GG
