Lowboy · Drawing
00785185
GTBN603-55-28-HGG
- Capacity
- 50-Ton HGG
- Number of Axles
- 4
- Lower Deck Length
- 336"
- Overall Length
- 707"
- Rear Deck Height
- 43"
- Lower Deck Height
- 22"
- KingPin Style
- Fixed
- Model Type
- Full Deck
Specifications 45 of 49 fields recorded
Dimensions & Capacity
| Model Type | Full Deck |
|---|---|
| Capacity | 50-Ton HGG |
| Rear Deck Height | 43" |
| Lower Deck Height | 22" |
| Lower Deck Length | 336" |
| Rear Deck Length (PO) | 174" |
| Rear Deck Length (Design) | — |
| Overall Length | 707" |
| Overall Width | 120" |
| Ground Clearance | 6" |
Gooseneck & King Pin
| GN Length | 143" |
|---|---|
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 98" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Well Decking | Removable S-Plate Full Length |
Frame & Deck
| Main Beam Center | 60" |
|---|---|
| Deck Main Beam | 16" T-1 Steel Std. |
| Deck Side Rail | 16" |
| Crossmembers | 10" & 4" |
| Outrigger Type | Full Height Removable |
| Front Ramps | Paver Ramps Adj Width 22" x 41" |
| Riser (Transition) Ramp | 35° Rear Bridge Ramp |
| Rear Deck Beam | 16" |
| Rear Well Style | Boom & Bucket Well |
| D-Ring in Tail | 2 |
| Rear Deck Option (Beavertail) | No |
| Wood | Apitong Full Width |
| Wheel Covers | Steel Covered D-Plate |
| Rear Bolster D-Rings | — |
Axles & Suspension
| Number of Axles | 4 |
|---|---|
| Axle Spacings | 54" |
| Axle Track | — |
| ABS | None |
| Axle 1 | Fixed Type 30/30 Non-ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Lift Type 30 Non-ABS |
| Axle 4 | Hydraulic Flip Type 30/30 Non-ABS |
| Suspension Type | Air Ride Suspension-25K |
| Dump Type | Auto |
| Ride Height Adjuster | Yes |
| Flip Axle Set Up | Set Up for Hydraulic Powered Flip |
Wheels & Electrical
| Tire | 275/70R x 22.5" H |
|---|---|
| Rims | Hub Piloted Outer Aluminum |
Options & Finish
| Fenders | Diamond Plate Steel Fenders |
|---|---|
| Motor | Yes |
| Flip Box Set Up | No |
| Wide Load Sign Cutout | — |

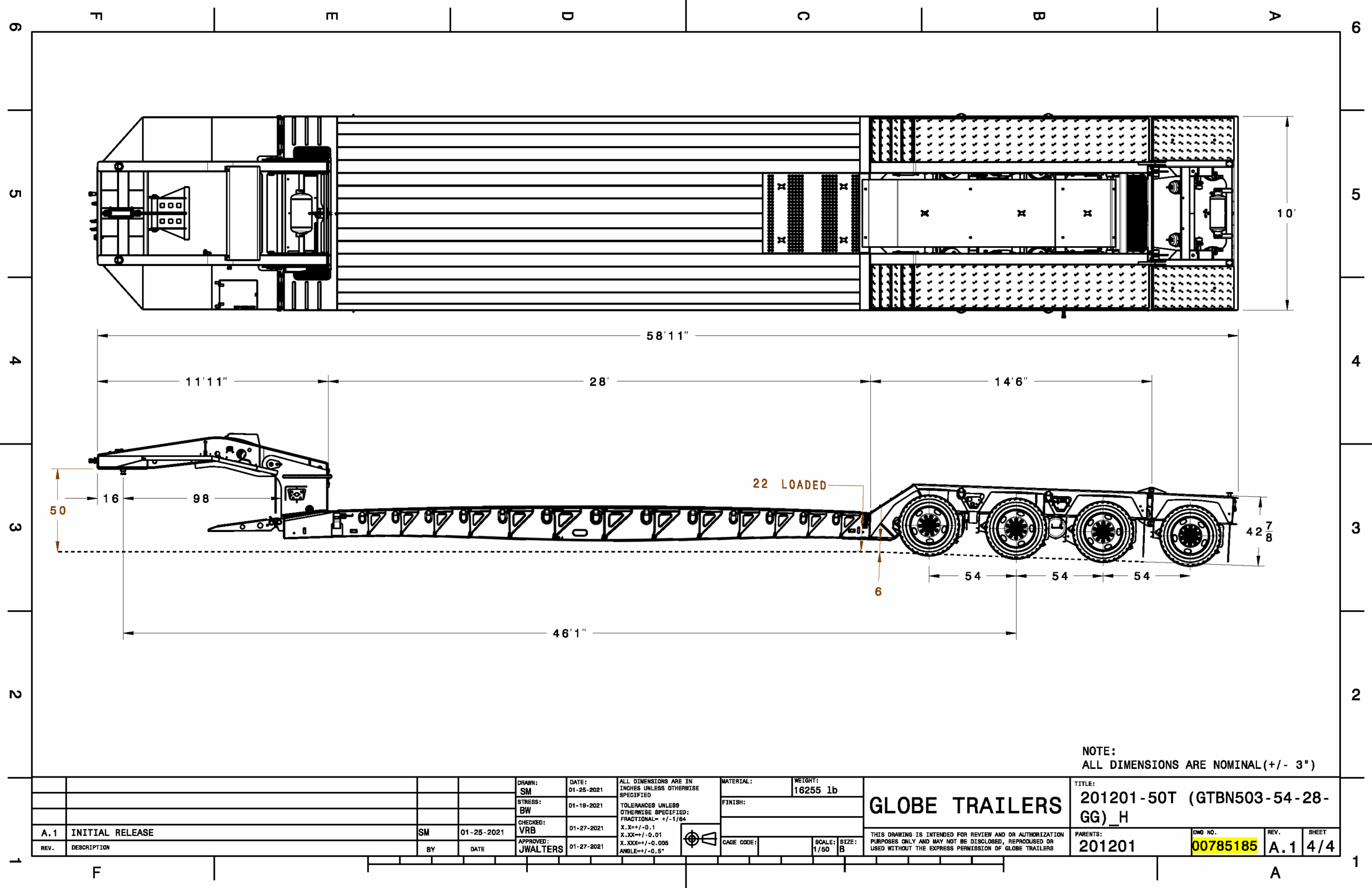

Click the drawing to zoom.
