00964686
GTBN403-53-27-AG
- 40-Ton GG
- 3
- 27'

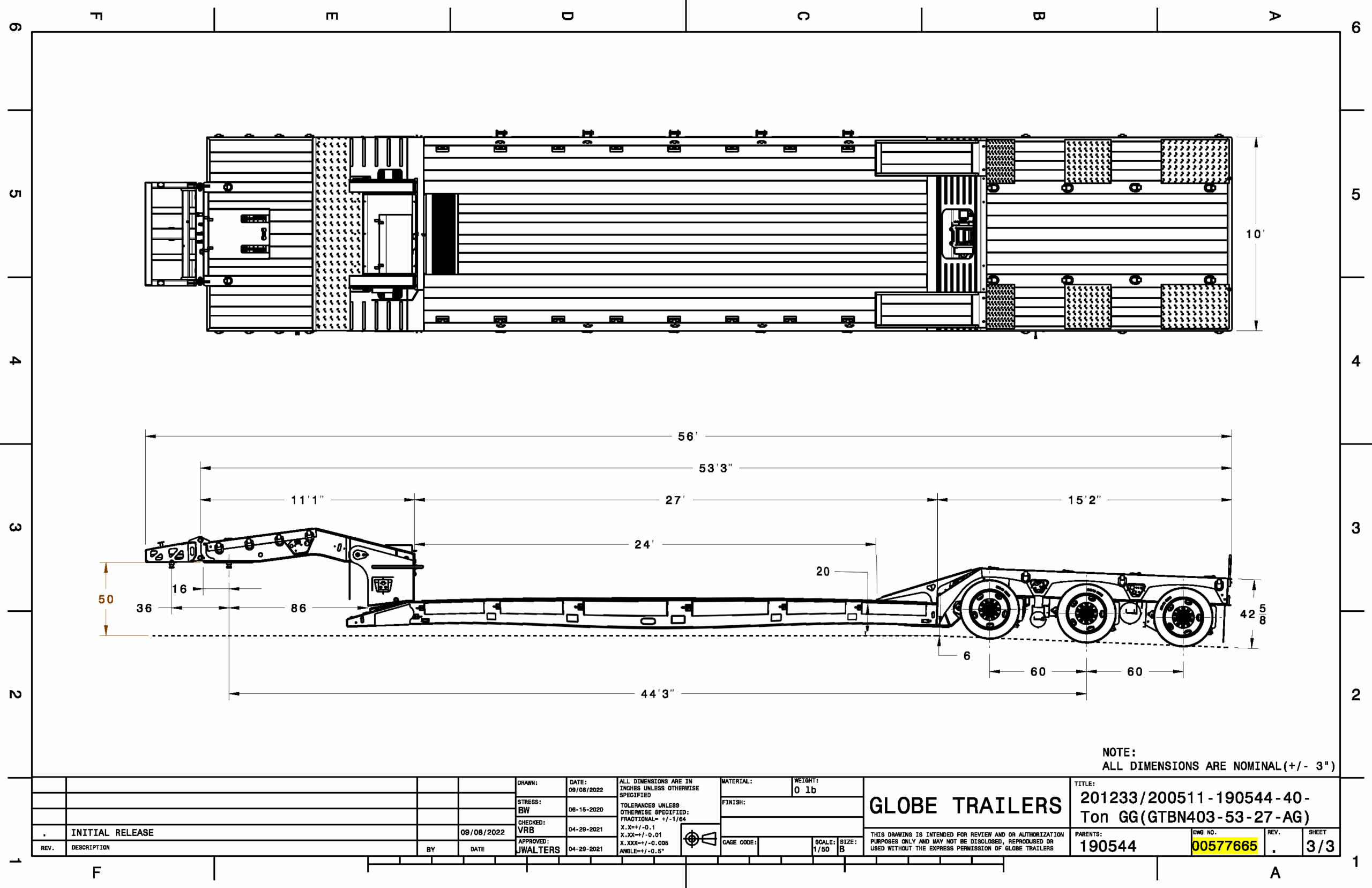

Lowboy · Drawing
00577665
GTBN403-53-27-AG
- Capacity
- 40-Ton GG
- Number of Axles
- 3
- Lower Deck Length
- 27'
- Overall Length
- 672"
- Rear Deck Height
- 42"
- Lower Deck Height
- 20"
- KingPin Style
- Removable
- Model Type
- Full Deck
Specifications 44 of 49 fields recorded
Dimensions & Capacity
| Model Type | Full Deck |
|---|---|
| Capacity | 40-Ton GG |
| Rear Deck Height | 42" |
| Lower Deck Height | 20" |
| Lower Deck Length | 27' |
| Rear Deck Length (PO) | 1 " |
| Rear Deck Length (Design) | 182" |
| Overall Length | 672" |
| Overall Width | 120" |
| Ground Clearance | 6" |
Gooseneck & King Pin
| GN Length | 133" |
|---|---|
| KingPin Style | Removable |
| KingPin Setting | 16" |
| Swing Clearance | 86" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Well Decking | Apitong |
Frame & Deck
| Main Beam Center | 60" |
|---|---|
| Deck Main Beam | 14" |
| Deck Side Rail | 14" |
| Crossmembers | 10" & 4" |
| Outrigger Type | 30" Aluminum Pull Out |
| Front Ramps | Integrated Fixed Ramps |
| Riser (Transition) Ramp | 90° Rear Bridge Ramp |
| Rear Deck Beam | 16.5" |
| Rear Well Style | Level Flush Across Rear Deck |
| D-Ring in Tail | 3 |
| Rear Deck Option (Beavertail) | — |
| Wood | Apitong Full Width |
| Wheel Covers | Steel Covered D-Plate |
| Rear Bolster D-Rings | 3 |
Axles & Suspension
| Number of Axles | 3 |
|---|---|
| Axle Spacings | 60" |
| Axle Track | 94.5" |
| ABS | 2S1M |
| Axle 1 | Fixed Type 30/30 Non-ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Super Lift Type 30 Non-ABS |
| Axle 4 | — |
| Suspension Type | Cush Air Ride Suspension-25K |
| Dump Type | Auto |
| Ride Height Adjuster | — |
| Flip Axle Set Up | — |
Wheels & Electrical
| Tire | 255/70R x 22.5" H |
|---|---|
| Rims | Hub Piloted All Aluminum |
Options & Finish
| Fenders | — |
|---|---|
| Motor | Yes |
| Flip Box Set Up | 36" Flip Box & Set Up |
| Wide Load Sign Cutout | 68-inch |
Click the drawing to zoom.
