GTBN403-53-27-AG
- 40-Ton GG
- 3
- 27'
Lowboy · Drawing
00475100
GTBN403-53-27-AG
- Capacity
- 40-Ton GG
- Number of Axles
- 3
- Lower Deck Length
- 324"
- Overall Length
- 634"
- Rear Deck Height
- 42"
- Lower Deck Height
- 20"
- KingPin Style
- Removable
- Model Type
- Full Deck
Specifications 47 of 49 fields recorded
Dimensions & Capacity
| Model Type | Full Deck |
|---|---|
| Capacity | 40-Ton GG |
| Rear Deck Height | 42" |
| Lower Deck Height | 20" |
| Lower Deck Length | 324" |
| Rear Deck Length (PO) | 175" |
| Rear Deck Length (Design) | 224" |
| Overall Length | 634" |
| Overall Width | 120" |
| Ground Clearance | 6" |
Gooseneck & King Pin
| GN Length | 135" |
|---|---|
| KingPin Style | Removable |
| KingPin Setting | 16" |
| Swing Clearance | 86" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Well Decking | Apitong |
Frame & Deck
| Main Beam Center | 60" |
|---|---|
| Deck Main Beam | 14" T-1 Steel |
| Deck Side Rail | 14" T-1 Steel |
| Crossmembers | 10" & 4" |
| Outrigger Type | 30" Steel Pull Out |
| Front Ramps | Integrated Fixed Ramps |
| Riser (Transition) Ramp | 90° Rear Bridge Ramp |
| Rear Deck Beam | 16.5" T-1 Steel |
| Rear Well Style | Level Flush Across Rear Deck |
| D-Ring in Tail | 3 |
| Rear Deck Option (Beavertail) | No |
| Wood | 1.75 Apitong Full Width |
| Wheel Covers | Steel Covered D-Plate |
| Rear Bolster D-Rings | — |
Axles & Suspension
| Number of Axles | 3 |
|---|---|
| Axle Spacings | 60" |
| Axle Track | 96 1/2" |
| ABS | 2S1M |
| Axle 1 | Fixed Type 30/30 Non-ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Super Lift Type 30 Non-ABS |
| Axle 4 | None |
| Suspension Type | Cush Air Ride Suspension-25K |
| Dump Type | Auto Dump |
| Ride Height Adjuster | No |
| Flip Axle Set Up | No |
Wheels & Electrical
| Tire | 255/70R x 22.5" H |
|---|---|
| Rims | 8.25 x 22.5 Hub Piloted All Aluminum |
Options & Finish
| Fenders | No |
|---|---|
| Motor | 13 HP Honda - Gas |
| Flip Box Set Up | 36" Flip Box & Set Up |
| Wide Load Sign Cutout | — |
Notes
1). 20k winch/cable to be flush mounted in transition area
Hydraulic connections to operate winch need to be in bolster on driver's side. Supply 10ft hydraulic "jumper lines". 2). 4 large d-rings added to top of rear deck on main beams
(2) at front (2) at rear 3). Winch rollers to be welded solid to bottom main beam flange
located between pull-out outriggers 4). D-rings to be "pull-up" style
located in main deck, just inside of side rail flange 5). (2) removable & sliding steel transition ramps for loading on to rear deck 6). Dust shields on all axles 7). Cam covers on all axles 8). Full apitong deck over goose neck
extend further than previous 140706

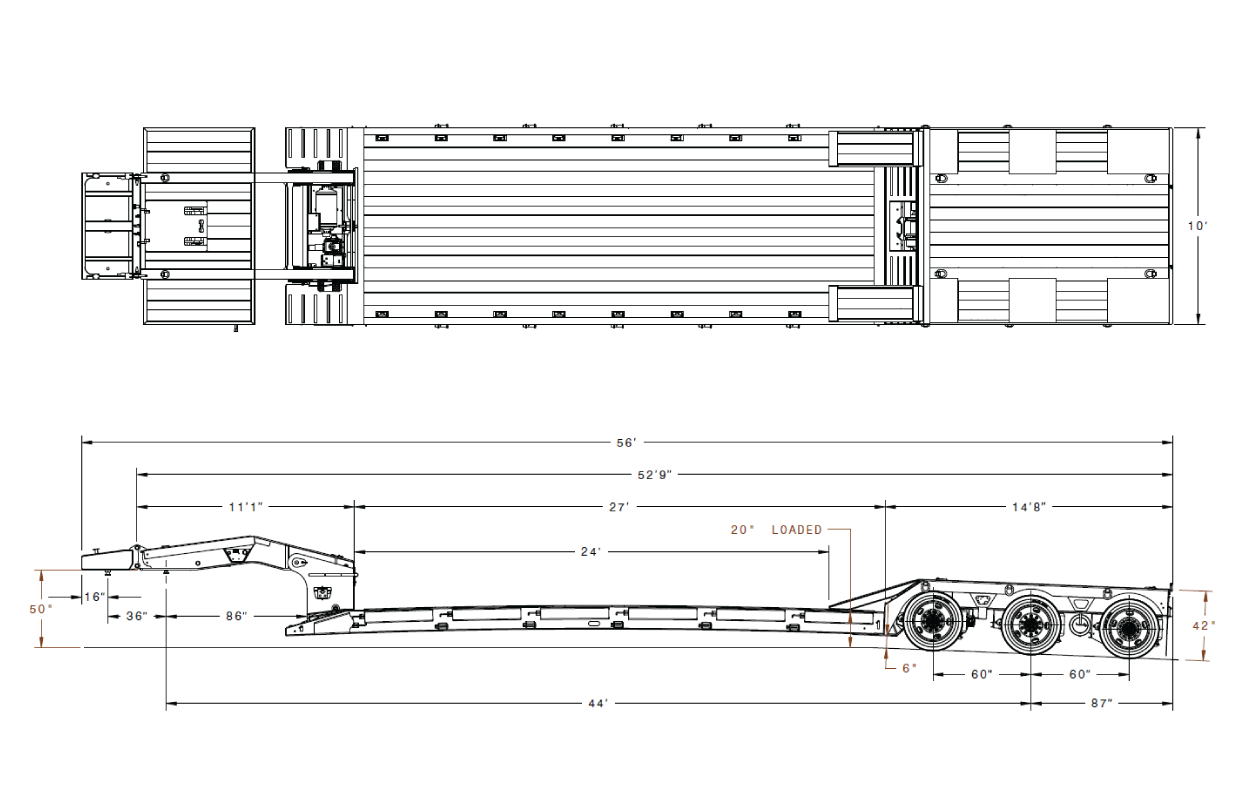

Click the drawing to zoom.
