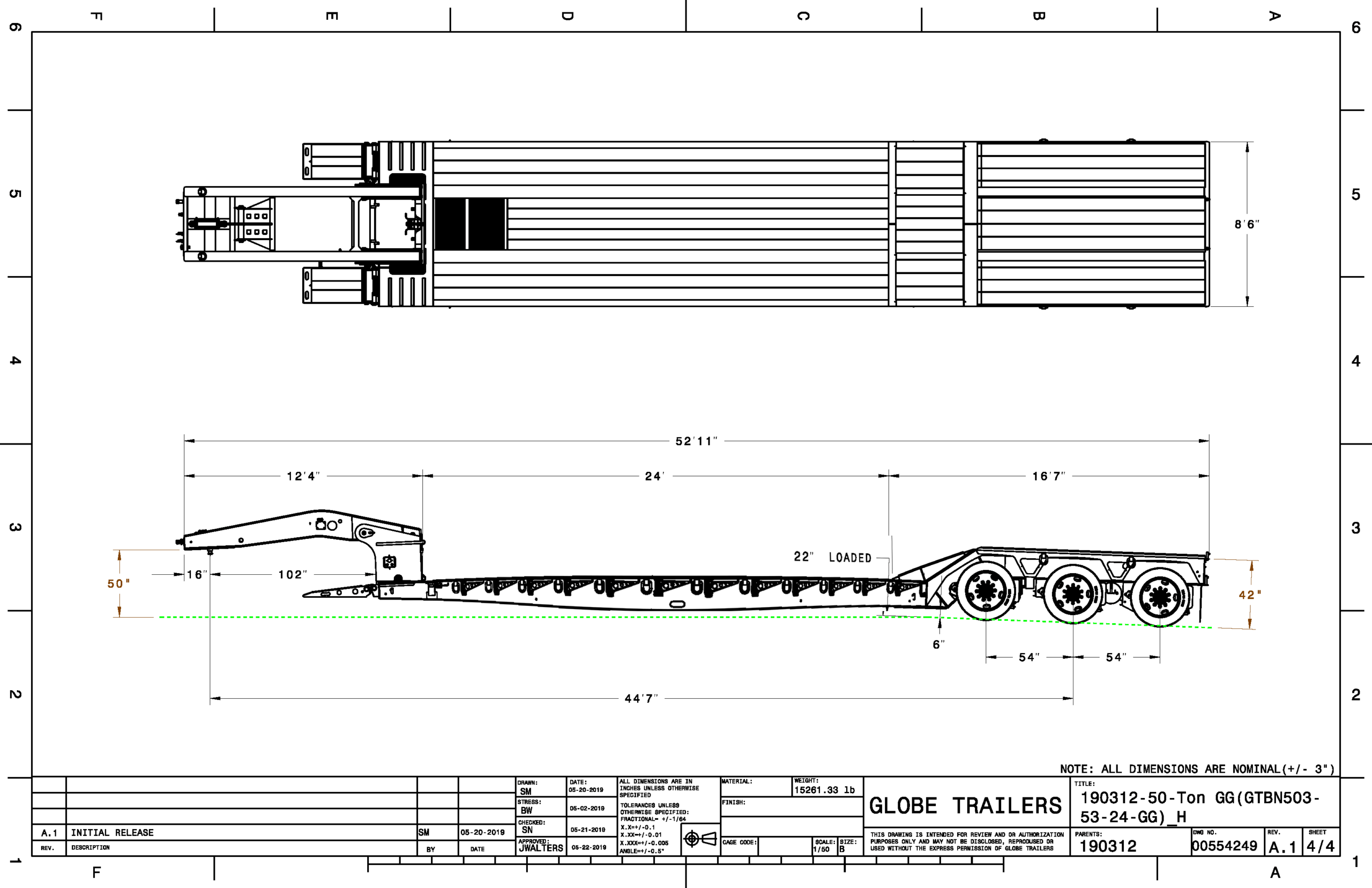

Lowboy · Drawing
00554249
GTBN503-53-24-GG
- Capacity
- 50-Ton GG
- Number of Axles
- 3
- Lower Deck Length
- 288"
- Overall Length
- 636"
- Rear Deck Height
- 42"
- Lower Deck Height
- 22"
- KingPin Style
- Fixed
- Model Type
- Paver Deck
Specifications 48 of 49 fields recorded
Dimensions & Capacity
| Model Type | Paver Deck |
|---|---|
| Capacity | 50-Ton GG |
| Rear Deck Height | 42" |
| Lower Deck Height | 22" |
| Lower Deck Length | 288" |
| Rear Deck Length (PO) | 201" |
| Rear Deck Length (Design) | 201" |
| Overall Length | 636" |
| Overall Width | 102" |
| Ground Clearance | 6" |
Gooseneck & King Pin
| GN Length | 147" |
|---|---|
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 102" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Well Decking | Steel Welded Solid |
Frame & Deck
| Main Beam Center | 40" |
|---|---|
| Deck Main Beam | 16" T-1 Steel Std. |
| Deck Side Rail | 16" T-1 Steel |
| Crossmembers | 10" & 4" at 12" spacing |
| Outrigger Type | Removable Standard |
| Front Ramps | Wood Filled Steel, 22" x 41" |
| Riser (Transition) Ramp | 18 Degree Apitong Covered |
| Rear Deck Beam | 16.5" T-1 Steel |
| Rear Well Style | Deep Center 1/4" Raised |
| D-Ring in Tail | 2 each side |
| Rear Deck Option (Beavertail) | No |
| Wood | 1.75" Apitong Full Width |
| Wheel Covers | Steel Covered D-Plate |
| Rear Bolster D-Rings | 2 each side |
Axles & Suspension
| Number of Axles | 3 |
|---|---|
| Axle Spacings | 54" |
| Axle Track | 76.5" |
| ABS | 4S2M |
| Axle 1 | Fixed Type 30/30 ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Super Lift Type 30 Non-ABS |
| Axle 4 | — |
| Suspension Type | Cush Air Ride Suspension - 25K |
| Dump Type | Manual Dump |
| Ride Height Adjuster | Cush Air Ride Adj. |
| Flip Axle Set Up | No |
Wheels & Electrical
| Tire | 255/70R x 22.5" H |
|---|---|
| Rims | 8.25 x 22.5 Hub Piloted Steel |
Options & Finish
| Fenders | No |
|---|---|
| Motor | No |
| Flip Box Set Up | No |
| Wide Load Sign Cutout | STD 49-inch |
Notes
-
Click the drawing to zoom.
