00705264
GTBN553-51-24-HGG
- 50-Ton GG
- 3
- 288"
Lowboy · Drawing
00490662
GTBN553-51-24-HGG
- Capacity
- 55-Ton HGG
- Number of Axles
- 3
- Lower Deck Length
- 24'
- Overall Length
- 607"
- Rear Deck Height
- 42"
- Lower Deck Height
- 18" w/ 6" GC
- KingPin Style
- Fixed
- Model Type
- Full Deck
Specifications 49 of 49 fields recorded
Dimensions & Capacity
| Model Type | Full Deck |
|---|---|
| Capacity | 55-Ton HGG |
| Rear Deck Height | 42" |
| Lower Deck Height | 18" w/ 6" GC |
| Lower Deck Length | 24' |
| Rear Deck Length (PO) | 176" |
| Rear Deck Length (Design) | 176" |
| Overall Length | 607" |
| Overall Width | 102" |
| Ground Clearance | 6" |
Gooseneck & King Pin
| GN Length | 143" |
|---|---|
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 98" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Well Decking | Removable V-Style Full Length |
Frame & Deck
| Main Beam Center | 40" |
|---|---|
| Deck Main Beam | 12" |
| Deck Side Rail | 12" |
| Crossmembers | 8" |
| Outrigger Type | Full Height Removable |
| Front Ramps | Integrated Fixed Ramps |
| Riser (Transition) Ramp | 35° Rear Bridge Ramp |
| Rear Deck Beam | 16.5" |
| Rear Well Style | Boom & Bucket V-Style |
| D-Ring in Tail | 2 |
| Rear Deck Option (Beavertail) | No |
| Wood | Apitong Open Center |
| Wheel Covers | Steel Covered D-Plate |
| Rear Bolster D-Rings | 2 |
Axles & Suspension
| Number of Axles | 3 |
|---|---|
| Axle Spacings | 54" |
| Axle Track | 76.5" |
| ABS | 2S1M |
| Axle 1 | Fixed Type 30/30 Non-ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Super Lift Type 30 Non-ABS |
| Axle 4 | None |
| Suspension Type | Cush Air Ride Suspension-25K |
| Dump Type | Auto |
| Ride Height Adjuster | No, Yes |
| Flip Axle Set Up | Set Up for Flip 4-Pin Design |
Wheels & Electrical
| Tire | 275/70R x 22.5" H |
|---|---|
| Rims | Piloted All Aluminum |
Options & Finish
| Fenders | No |
|---|---|
| Motor | No |
| Flip Box Set Up | No |
| Wide Load Sign Cutout | STD 49-inch |
Notes
1). Expanded metal last 4 bays before bucket pan 2). V-style well w/ V-style rear bumper on trailer 3). 2 sets of D-Rings on inside Beams at back of lower deck on 4' Centers 4). 2 Sets of D-Rings on Inside Beams at Front behind Gooseneck on 4' Center

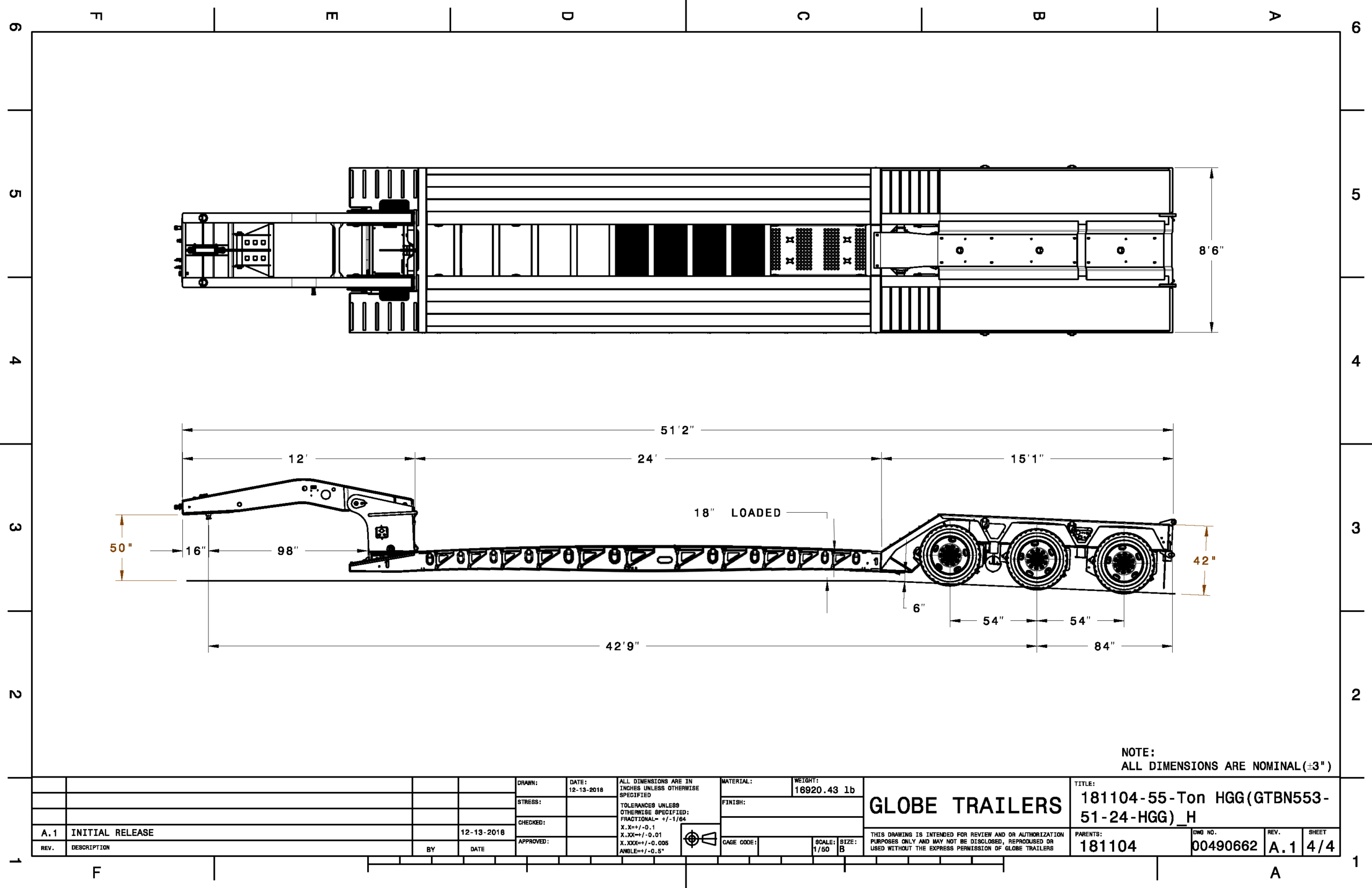

Click the drawing to zoom.
