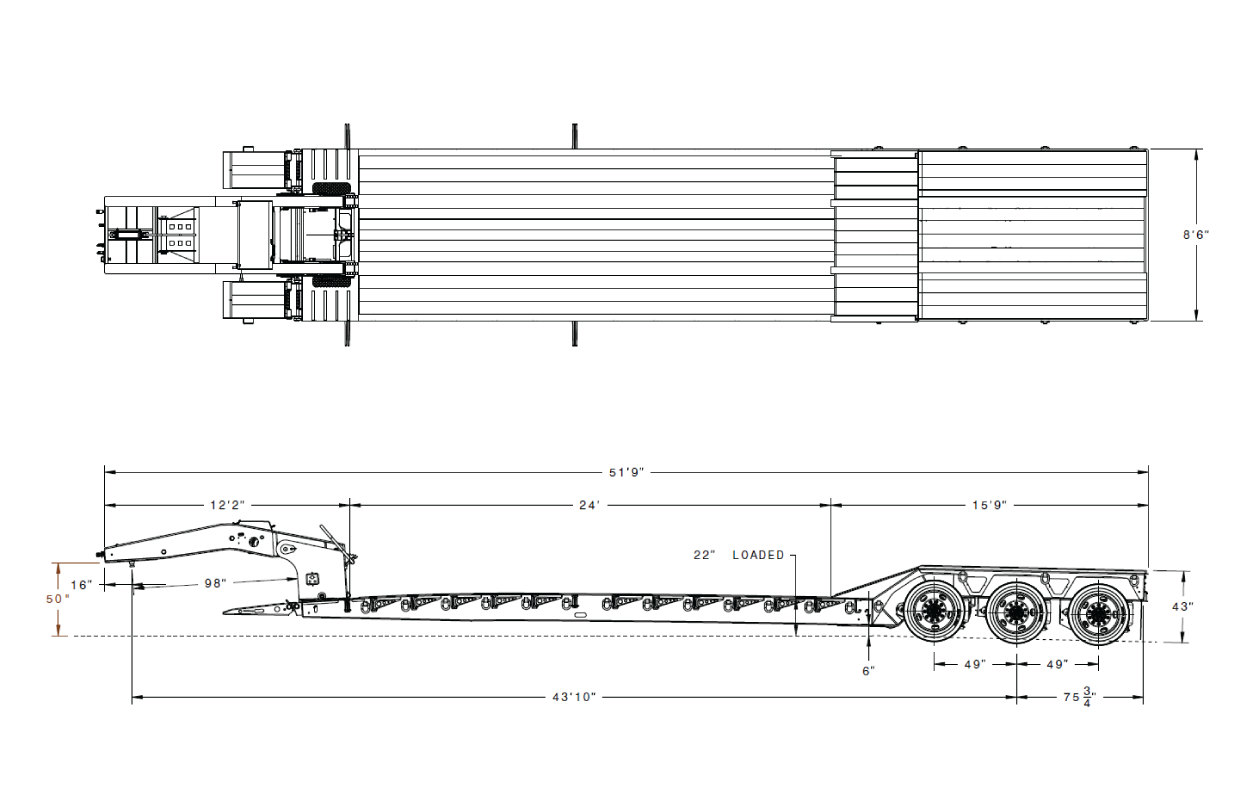

Lowboy · Drawing
00470165
GTBN503-52-24-GG
- Capacity
- 50-Ton GG
- Number of Axles
- 3
- Lower Deck Length
- 288"
- Overall Length
- 624"
- Lower Deck Height
- 22"
- KingPin Style
- Fixed
- Model Type
- Paver Deck
Specifications 45 of 49 fields recorded
Dimensions & Capacity
| Model Type | Paver Deck |
|---|---|
| Capacity | 50-Ton GG |
| Rear Deck Height | — |
| Lower Deck Height | 22" |
| Lower Deck Length | 288" |
| Rear Deck Length (PO) | 192" |
| Rear Deck Length (Design) | 189" |
| Overall Length | 624" |
| Overall Width | 102" |
| Ground Clearance | 6" |
Gooseneck & King Pin
| GN Length | 143" |
|---|---|
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 98" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Well Decking | Apitong Covered |
Frame & Deck
| Main Beam Center | 40" Standard |
|---|---|
| Deck Main Beam | 16" T-1 Steel |
| Deck Side Rail | 16" T-1 Steel |
| Crossmembers | 10" & 4" |
| Outrigger Type | Removable Standard |
| Front Ramps | Wood Filled 22" x 41" |
| Riser (Transition) Ramp | 3:1 Ratio on Riser 54" Transition |
| Rear Deck Beam | 16.5" |
| Rear Well Style | Level Flush Across Rear Deck |
| D-Ring in Tail | 4 |
| Rear Deck Option (Beavertail) | No |
| Wood | 1.75", Apitong Full Width |
| Wheel Covers | Apitong Covered |
| Rear Bolster D-Rings | — |
Axles & Suspension
| Number of Axles | 3 |
|---|---|
| Axle Spacings | 49" |
| Axle Track | 76.5" |
| ABS | 4S2M |
| Axle 1 | Fixed Type 30/30 ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Super Lift Type 30 Non-ABS |
| Axle 4 | None |
| Suspension Type | — |
| Dump Type | Auto |
| Ride Height Adjuster | No |
| Flip Axle Set Up | No |
Wheels & Electrical
| Tire | 255/70R x 22.5" H |
|---|---|
| Rims | 8.25 x 22.5 Hub Piloted Steel |
Options & Finish
| Fenders | No |
|---|---|
| Motor | Yes |
| Flip Box Set Up | No |
| Wide Load Sign Cutout | — |
Notes
1) 13 HP GAS ENGINE, 2) TAPERED BEAM, 3) LEVEL REAR DECK, 4) EXTRA D-RINGS,
Click the drawing to zoom.
