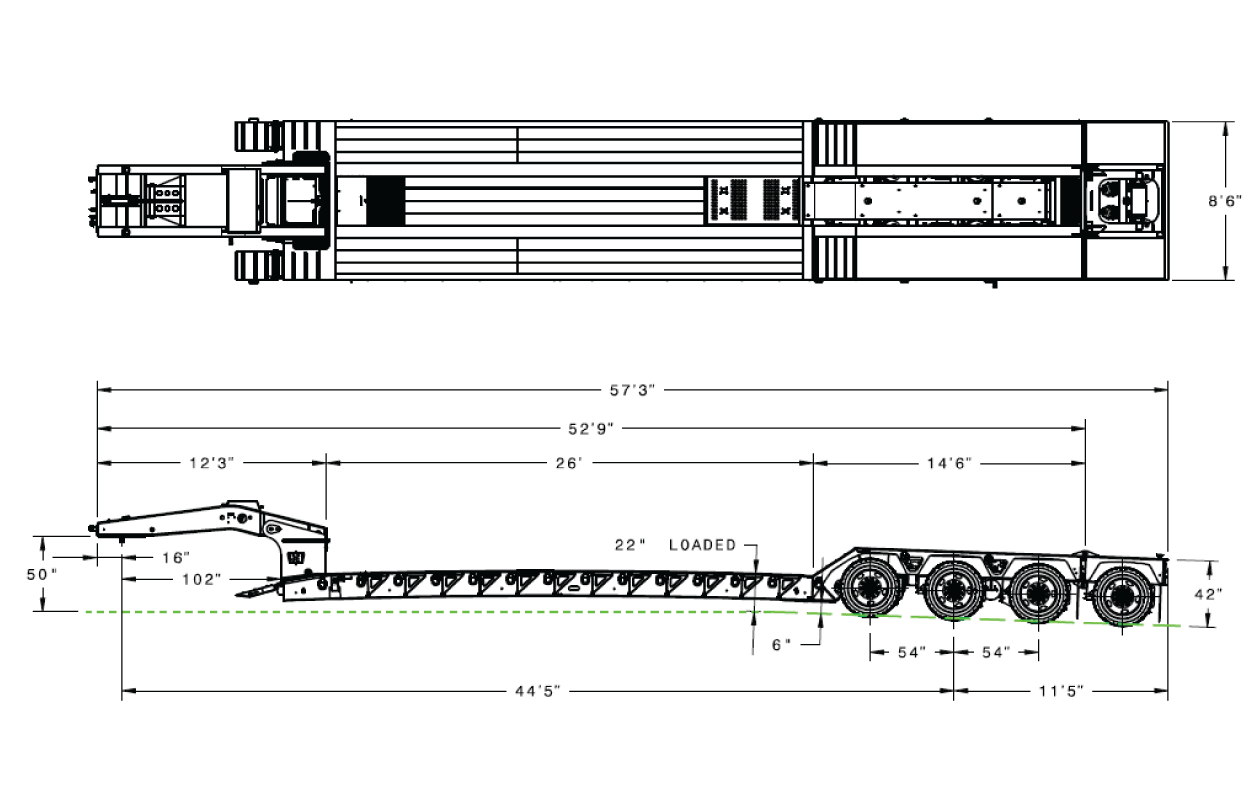

Lowboy · Drawing

00458712

GTBN553-53-26-HGG

Download PDF

Capacity: 55-Ton HGG
Number of Axles: 4
Lower Deck Length: 312"
Overall Length: 636"
Rear Deck Height: 42"
Lower Deck Height: 24"
KingPin Style: Fixed
Model Type: Full Deck

Specifications 49 of 49 fields recorded

Show empty fields

Dimensions & Capacity

Model Type	Full Deck
Capacity	55-Ton HGG
Rear Deck Height	42"
Lower Deck Height	24"
Lower Deck Length	312"
Rear Deck Length (PO)	179"
Rear Deck Length (Design)	174"
Overall Length	636"
Overall Width	102"
Ground Clearance	8"

Gooseneck & King Pin

GN Length	147"
KingPin Style	Fixed
KingPin Setting	16"
Swing Clearance	102"
Fifth Wheel Height	50"
Ride Height	5-Position
Well Decking	Removable D-Plate Full Length

Frame & Deck

Main Beam Center	40"
Deck Main Beam	16" T-1 Steel Std.
Deck Side Rail	16" T-1 Steel
Crossmembers	10" & 4"
Outrigger Type	Full Height Removable
Front Ramps	Steel 18" x 31" Std.
Riser (Transition) Ramp	35° Rear Bridge Ramp
Rear Deck Beam	16.5" T-1 Steel
Rear Well Style	Boom & Bucket Well
D-Ring in Tail	3
Rear Deck Option (Beavertail)	No
Wood	1.75" Apitong Full Width
Wheel Covers	Steel Covered D-Plate
Rear Bolster D-Rings	3

Axles & Suspension

Number of Axles	4
Axle Spacings	54"
Axle Track	76.5"
ABS	4S2M
Axle 1	Fixed Type 30/30 ABS
Axle 2	Fixed Type 30/30 ABS
Axle 3	Super Lift Type 30 Non-ABS
Axle 4	Hydraulic Flip Type 30 Non-ABS
Suspension Type	Cush Air Ride Suspension-25K
Dump Type	Auto Dump
Ride Height Adjuster	No
Flip Axle Set Up	Set Up for Hydraulic Powered Flip

Wheels & Electrical

Tire	275/70R x 22.5" H
Rims	8.25 x 22.5 Hub Piloted All Aluminum

Options & Finish

Fenders	No
Motor	13 HP Honda - Gas
Flip Box Set Up	No
Wide Load Sign Cutout	STD 49-inch

Notes

Flip axle diverter valve needs to be mounted on the side of the goose neck
near control handles - Strobe toggle, safety night light toggle, lift axle valve to be mounted in boltster - Expanded metal in 1st bay w/lockable lid & open storage in 2nd bay - D-rings to be located inside of boom-well where applicable - (4) Four additional clearance lights to each side of main deck;
