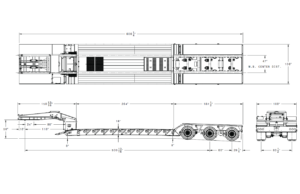

00208226
GTBN553-50-22-GG
- 55-Ton GG
- 3
- 22' 26
Lowboy · Drawing
00302750
GTBN553-50-22-GG
- Capacity
- 55-Ton GG
- Number of Axles
- 3
- Lower Deck Length
- 24' 28
- Overall Length
- 633"
- Rear Deck Height
- 40"
- Lower Deck Height
- 24"
- KingPin Style
- 2-Position Removable
- Model Type
- Full Deck
Specifications 47 of 49 fields recorded
Dimensions & Capacity
| Model Type | Full Deck |
|---|---|
| Capacity | 55-Ton GG |
| Rear Deck Height | 40" |
| Lower Deck Height | 24" |
| Lower Deck Length | 24' 28 |
| Rear Deck Length (PO) | 8" 186" |
| Rear Deck Length (Design) | Redesign |
| Overall Length | 633" |
| Overall Width | 108" |
| Ground Clearance | 8" |
Gooseneck & King Pin
| GN Length | 159" |
|---|---|
| KingPin Style | 2-Position Removable |
| KingPin Setting | 16" & 40" |
| Swing Clearance | 110" & 86" |
| Fifth Wheel Height | 50" |
| Ride Height | 4-Position |
| Well Decking | Open |
Frame & Deck
| Main Beam Center | 41" Std. |
|---|---|
| Deck Main Beam | 16" T-1 Steel Std. |
| Deck Side Rail | 16" T-1 Steel Std. |
| Crossmembers | 10" & 4" |
| Outrigger Type | Full Height Removable |
| Front Ramps | Steel 18" x 31" Std. |
| Riser (Transition) Ramp | 35° Rear Bridge Ramp |
| Rear Deck Beam | 14" |
| Rear Well Style | Boom & Bucket Well |
| D-Ring in Tail | 3 |
| Rear Deck Option (Beavertail) | No |
| Wood | 1,75 Apitong Full Width |
| Wheel Covers | Steel Single Wheel Removable |
| Rear Bolster D-Rings | — |
Axles & Suspension
| Number of Axles | 3 |
|---|---|
| Axle Spacings | 60" |
| Axle Track | 83 1/2" |
| ABS | 4S2M |
| Axle 1 | Fixed Type 30/30 ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Super Lift Type 30 Non-ABS |
| Axle 4 | None |
| Suspension Type | Cush Air Ride Suspension-25K |
| Dump Type | Auto Dump |
| Ride Height Adjuster | No |
| Flip Axle Set Up | Set Up for Flip Box Only |
Wheels & Electrical
| Tire | 255/70R x 22.5" H |
|---|---|
| Rims | 8.25 x 22.5 Hub Piloted Steel |
Options & Finish
| Fenders | Diamond Plate Steel Fenders |
|---|---|
| Motor | 13 HP Honda - Gas |
| Flip Box Set Up | Set Up for Flip Box Only |
| Wide Load Sign Cutout | — |
Notes
1. Diamond Steel fenders on GN. Should allow for 8"-9" clearance between fenders and tires, with a short mud flap in the front and a chain hanger set up. Fender design, shorter "Mountain Fenders" with no door. from 50LB151098 as example, see Ryan for any questions. 2. Tool box with expanded metal in the next 2 bays 3. 4" Yellow lights outside of the turn lights. 4. Elevated/ Tapered Front Pullout Outriggers * New Design. Similar to 170105 only change is to increase to 24' deck length.

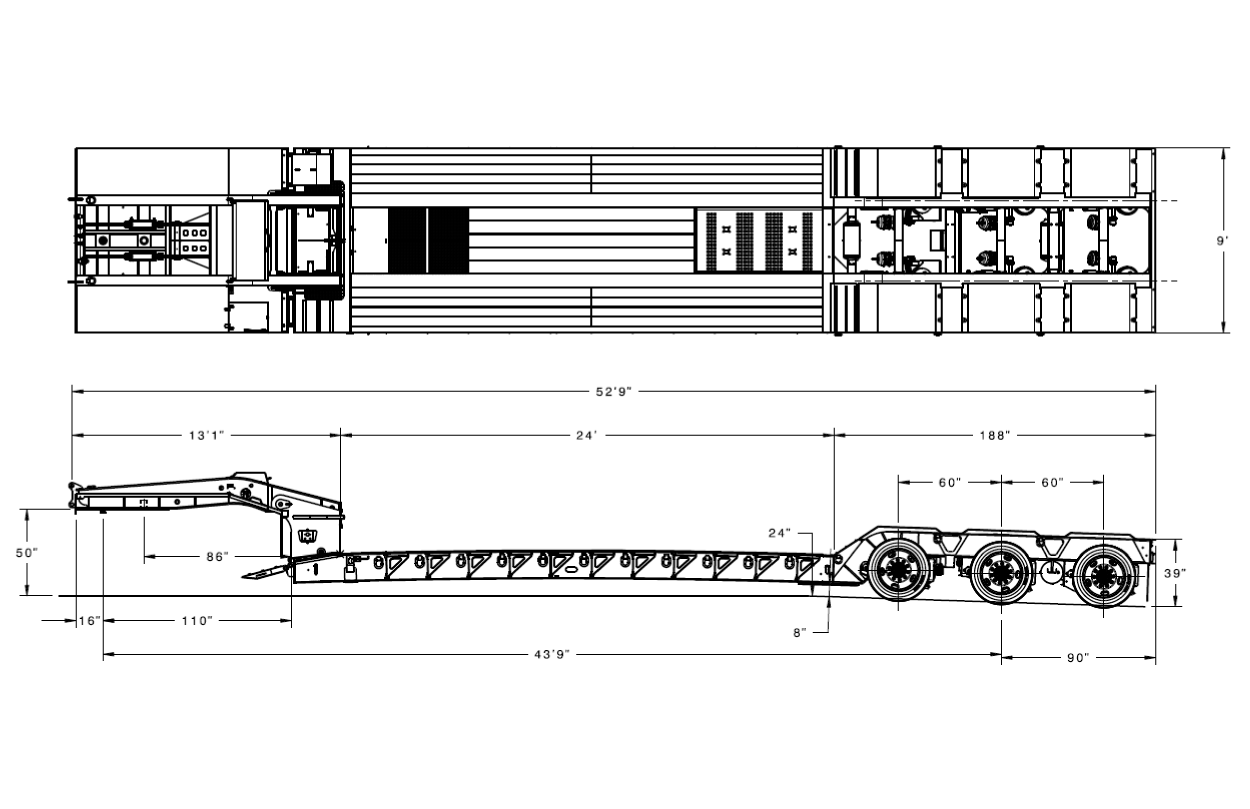

Click the drawing to zoom.
