GTFV403-48-30
Parameters of Product

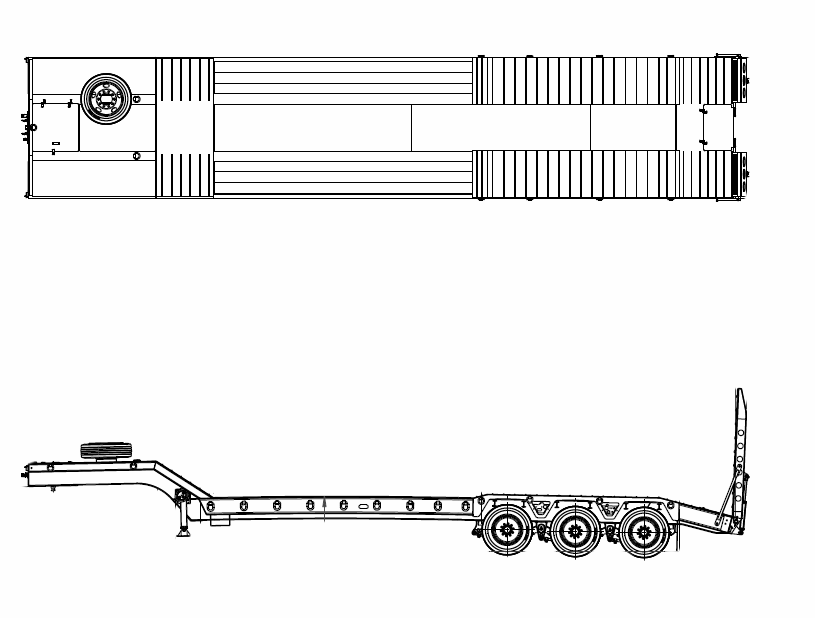

Fixed Neck Trailer
Model Number
GTFV403-48-30
Capacity
40-Ton
Overall Length in Feet
43'
Overall Width
102-inch
Gooseneck Length
12'
Swing Clearance
5th Wheel Height
Loadwell Length
28'
Rear Deck Height
36-inch
King Pin Settings
Axle Spacing
49-inch
Beavertail Length
Main Beam Centers
41-inch
Cross Members
10-inch & 4-inch on 12-inch Centers
Main Beam Frame
16 T1 Steel, 16-inch Fabricated I-Beam
Side Rail Frame
Axles Capacity
25000 lbs
King Pin
Tires Size
Wheels
8.25 x 22.5 Hub Piloted Steel
Brakes
ABS
4S2M
Landing Gear
2-Speed Landing Gear
Suspension
Air Ride Suspension
Ramps
96-inch x 32-inch Hydraulic, Apitong Covered Ramps with traction bars
Lighting
Lighting LED in Rubber Grommet
Connector
Flooring
2-inch Apitong w/metal down center
Outriggers
none
Finish
Sandblast & Powder Coated
Note
1). Spare tire and mount on gooseneck. 2). Tool box in gooseneck. 3). Side step each side. 4). Spot lights under each side channel. 5). Hubometer.
