00495603

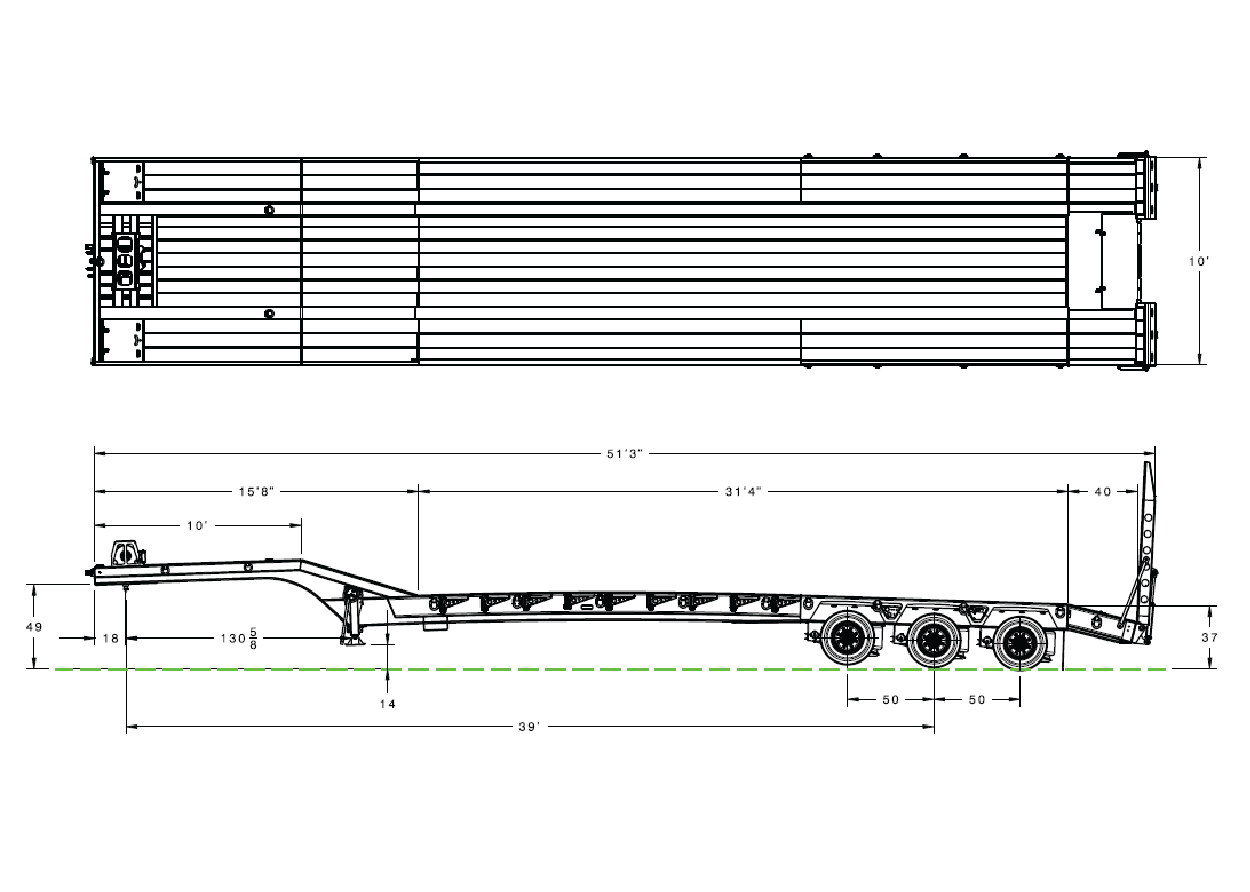

00495603 Database_artboard

Parameters of Product

Fixed Neck Trailer

Model Number

00495603

Capacity

50-Ton

Overall Length in Feet

51' 3-inch

Overall Width

120-inch

Gooseneck Length

15' 8-inch

Swing Clearance

130-inch

5th Wheel Height

49-inch

Loadwell Length

Rear Deck Height

37-inch

King Pin Settings

18-inch

Axle Spacing

50-inch

Beavertail Length

40-inch

Main Beam Centers

12-inch

Cross Members

10-inch & 4-inch

Main Beam Frame

16-inch Fabricated I-Beam

Side Rail Frame

12-inch Channel

Axles Capacity

25000 lbs

King Pin

Fixed

Tires Size

235 75R X 17.5 H

Wheels

6.75 x 17.5, 8 Hole Hub Piloted Steel

Brakes

12.25-inch X 7.5-inch Air Brakes

ABS

4S2M

Landing Gear

2-Speed Landing Gear

Suspension

Air Ride Suspension

Ramps

Hydraulic operated Rumber Filled ramps

Lighting

Lighting LED in Rubber Grommet

Connector

Flooring

2-inch nominal RUMBER Flooring

Outriggers

Finish

Sandblast & Powder Coated
