GTFV503-51-32
Parameters of Product

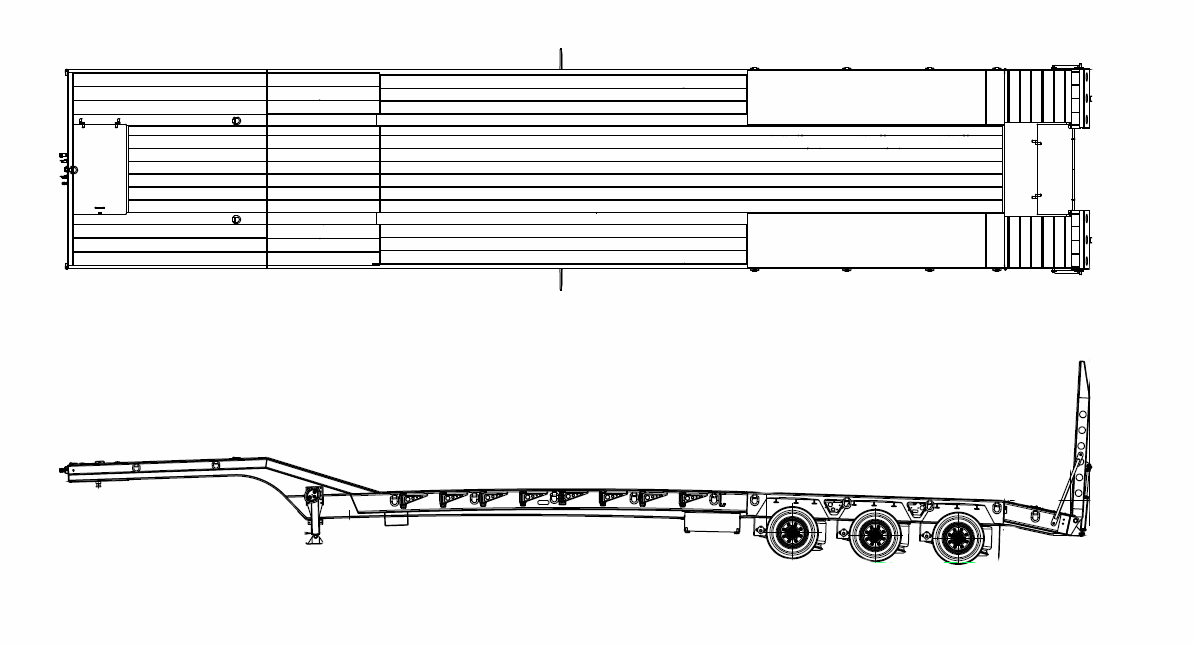

Fixed Neck Trailer
Model Number
GTFV503-51-32
Capacity
50-Ton
Overall Length in Feet
51'
Overall Width
120-inch
Gooseneck Length
10'
Swing Clearance
5th Wheel Height
Loadwell Length
Rear Deck Height
37-inch
King Pin Settings
Axle Spacing
50-inch
Beavertail Length
Main Beam Centers
59.5-inch
Cross Members
10-inch & 4-inch on 12-inch Centers
Main Beam Frame
16 T1 Steel, 16-inch Fabricated I-Beam
Side Rail Frame
Axles Capacity
25000 lbs
King Pin
Tires Size
Wheels
6.75 x 17.5 Hub piloted steel disc wheels
Brakes
ABS
4S2M
Landing Gear
2-Speed Landing Gear
Suspension
Ramps
96-inch x 36-inch Hydraulic, Rumber Filled
Lighting
Lighting LED in Rubber Grommet
Connector
Flooring
2-inch nominal Apitong Flooring
Outriggers
Removable Std
Finish
Sandblast & Powder Coated
Note
1). Underbody mounted steel tool boxes 2). on each side 1.Flag holders on all four comers of the trailer 2.Two d-rings located on the rear of the top deck platform and one on the front of the platform 3). Storage compartment built-in upper deck space 4). S/T/T plus rear strobe LED lights to be mounted in rear ramp
