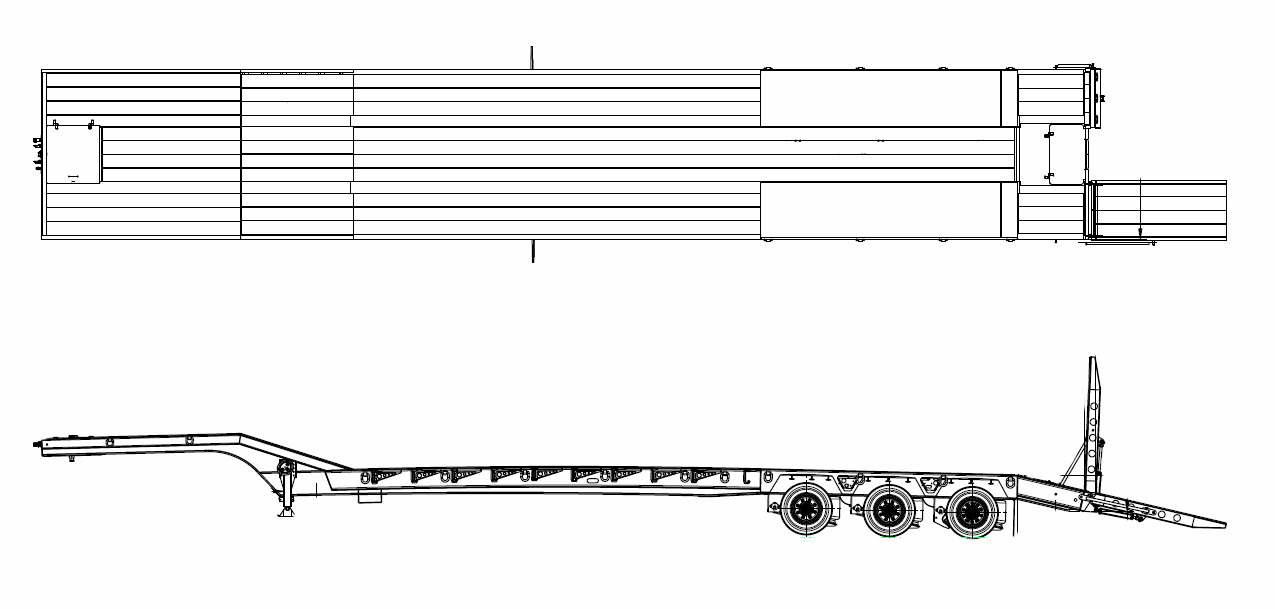

GTFV503-53-28
Parameters of Product
Fixed Neck Trailer
Model Number
GTFV503-53-28
Capacity
50-Ton
Overall Length in Feet
53'
Overall Width
102-inch
Gooseneck Length
Swing Clearance
5th Wheel Height
Loadwell Length
28'
Rear Deck Height
37-inch
King Pin Settings
Axle Spacing
50-inch
Beavertail Length
Main Beam Centers
40-inch
Cross Members
10-inch & 4-inch on 12-inch Centers
Main Beam Frame
16-inch Fabricated I-Beam
Side Rail Frame
Axles Capacity
25000 lbs
King Pin
Tires Size
Wheels
6.75 x 17.5 Hub piloted steel disc wheels
Brakes
ABS
4S3M
Landing Gear
2-Speed Landing Gear
Suspension
Air Ride Suspension
Ramps
84-inch x 36-inch Hydraulic, Hydraulic, Apitong covered
Lighting
Lighting LED in Rubber Grommet
Connector
Flooring
2-inch nominal Apitong Flooring
Outriggers
Removable Std
Finish
Sandblast & Powder Coated
Note
1). Hubometer 2). Steps installed on both sides of deck 3). No logo mudflaps 4). Federal Inspection
