001047671

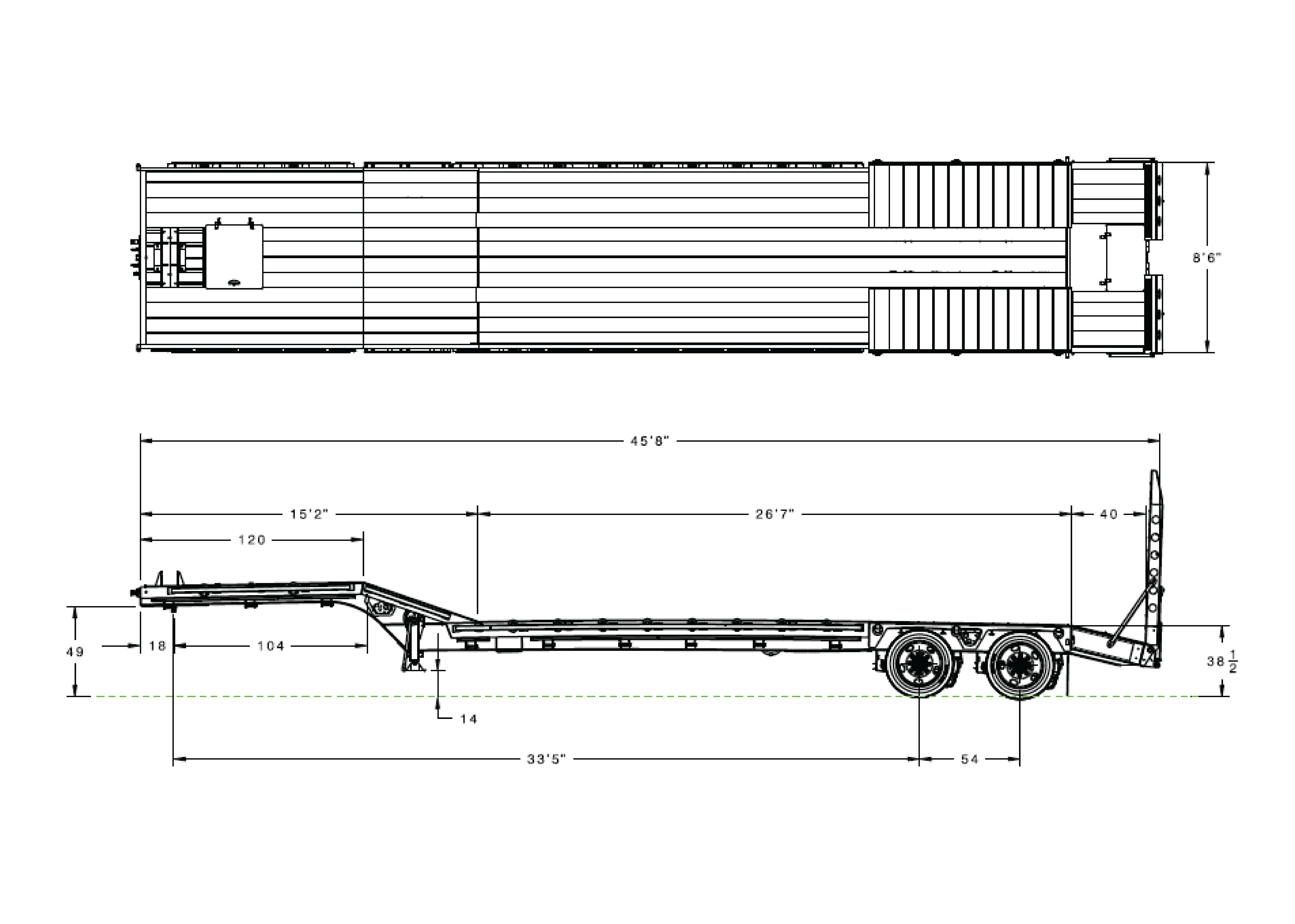

001047671 Database_artboard

Parameters of Product

Fixed Neck Trailer

Model Number

001047671

Capacity

25-Ton

Overall Length in Feet

45' 8-inch

Overall Width

102-inch

Gooseneck Length

15' 2-inch

Swing Clearance

104-inch

5th Wheel Height

49-inch

Loadwell Length

26' 7-inch

Rear Deck Height

38.5-inch

King Pin Settings

18-inch

Axle Spacing

54-inch

Beavertail Length

40-inch

Main Beam Centers

41-inch

Cross Members

4-inch on 12-inch Centers

Main Beam Frame

100 KSI Flanges and webs

Side Rail Frame

Structural Steel Channel

Axles Capacity

25000 lbs

King Pin

Fixed

Tires Size

255 70R X 22.5 H

Wheels

8.25 x 22.5 Hole Hub Piloted Steel

Brakes

16.50-inch X 7-inch - 25K

ABS

2S1M

Landing Gear

2-Speed Landing Gear

Suspension

Air Ride Suspension

Ramps

Rear Ramps 42-inch x 96-inch

Lighting

LED Plus 2 - Rear Strobes

Connector

7 Pole Connector

Flooring

1 3/4-inch Apitong

Outriggers

none

Finish

Sandblast & Powder Coated
