GTFJ402-53-43
Parameters of Product

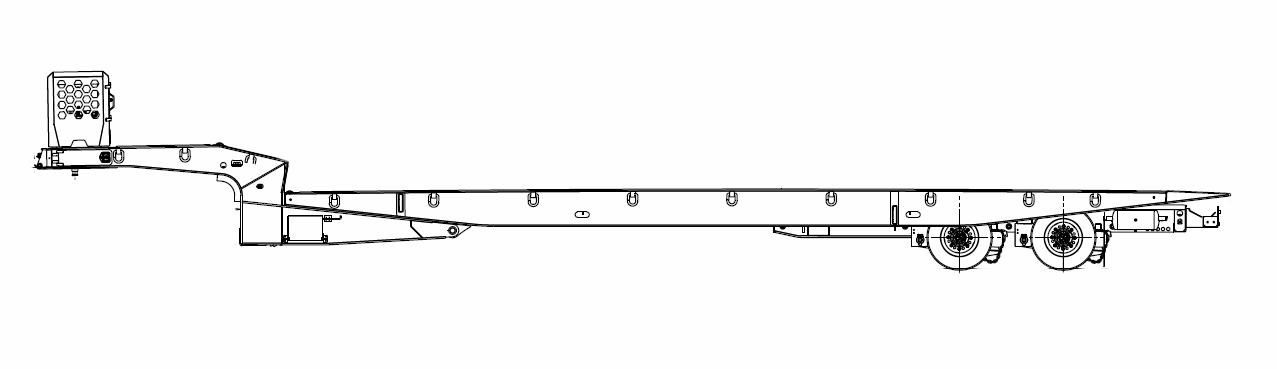

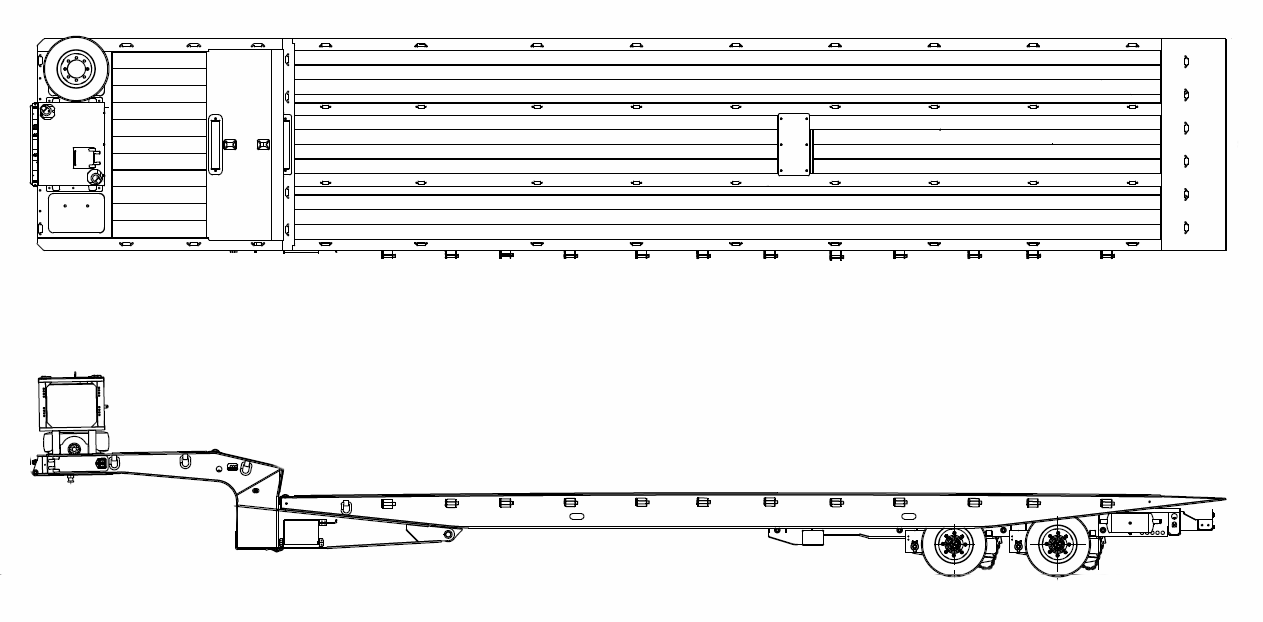

Sliding Axle Trailer
SKU
GTFJ402-53-43
Capacity
40T
Overall Length
576
Overall Width
102
Gooseneck
120-inch
Swing Clearance
80-inch
5th Wheel Height
46-inch
Loadwell Length
456
Loadwell Height
34-inch
Axle Spacing
50-inch
King Pin Setting
20-inch
Load Angle
6.5°
Dump Angle
6.5°
Cross Member
3-inch Jr. I-beam on 8-inch Centers
Main Frame
Fabricated I-Beam
Axles
2
Axle Track
71.5-inch
Axle Capacity
25 K
King Pin
2-inch Heavy Duty
Tires
235/75R X 17.5 H
Wheels
6.75 X 17.5 Hub Piloted Steel
Brakes
12 ¼-inch X 7 ½-inch full air brakes with spring parking brakes, automatic slack adjusters
ABS
4S2M
Landing Gear
2-speed
Suspension
Ridewell air ride suspension
Electrical
12-Volt electric system, 7 way SAE connector
Hydraulics
Wet line with quick couplers
Winch
20,000# hydraulic winch mounted front center of the upper deck w/ 85’ of 9/16-inch cable & shackle
Stake Pockets
Full length 16-inch centers with rub rail
Decking
1 3/8-inch Apitong flooring
Tie Downs
Tie down slots on sides and center of load well deck
Finish
Sandblasted to near white primed and powder coated Color of choice
