GTFJ503-53-43_H

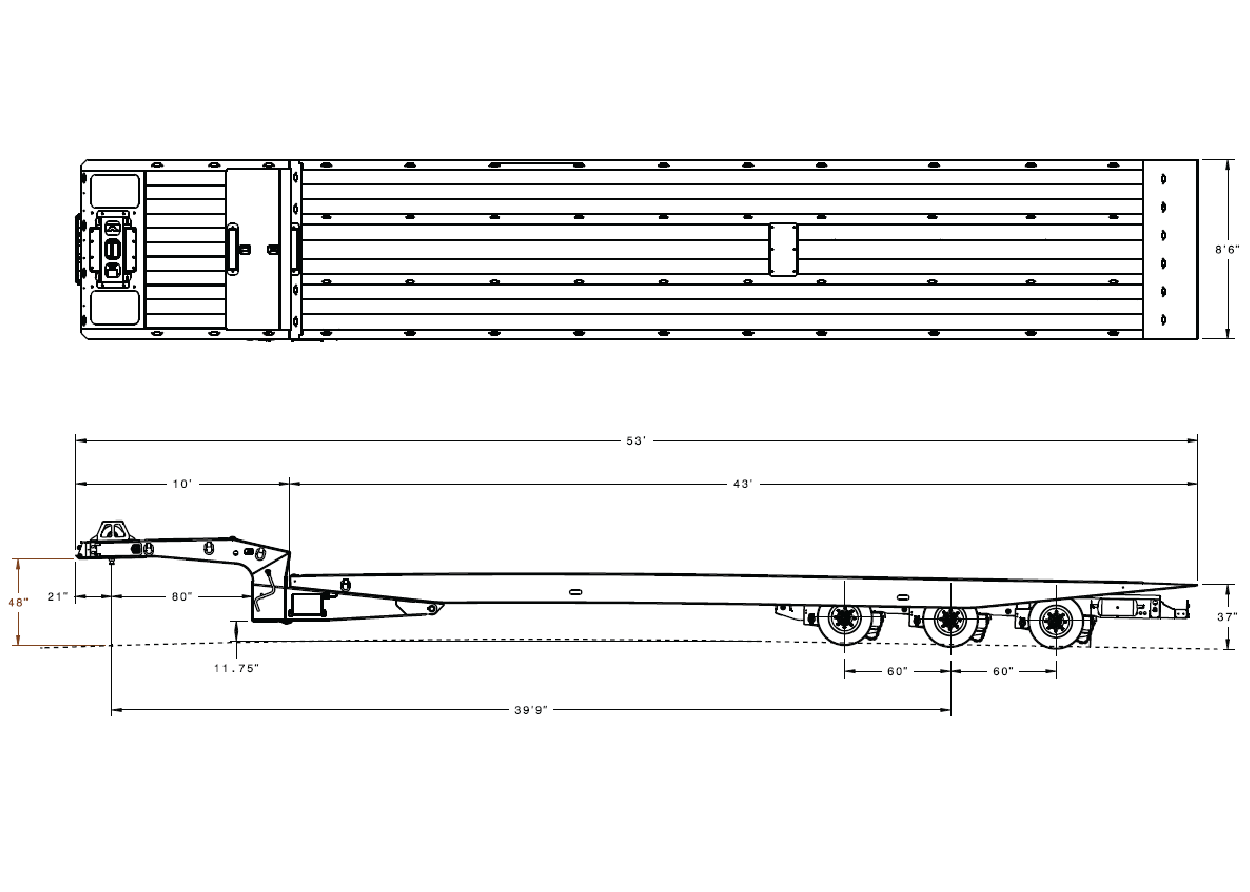

Parameters of Product
Sliding Axle Trailer
SKU
GTFJ503-53-43_H
Capacity
50T
Overall Length
636
Overall Width
102
Gooseneck
120-inch
Swing Clearance
80-inch
5th Wheel Height
48-inch
Loadwell Length
516-inch
Loadwell Height
37-inch
Axle Spacing
60-inch
King Pin Setting
21-inch
Load Angle
8°
Dump Angle
14°
Cross Member
4-inch Jr I-beams on 9-inch Centers
Main Frame
Fabricated I-Beam
Axles
3
Axle Track
71.5-inch
Axle Capacity
25 K
King Pin
2-inch Heavy Duty
Tires
235/75R X 17.5 H
Wheels
6.75 X 17.5 Hub Piloted Outer Aluminum
Brakes
12 ¼-inch X 7 ½-inch full air brakes with spring parking brakes, automatic slack adjusters
ABS
2S1M
Landing Gear
2-speed
Suspension
Cush air ride suspension, w/ dump valve
Electrical
12-Volt electric system, 7 way SAE connector
Hydraulics
Wet line with quick couplers
Winch
20,000# hydraulic winch mounted front center of the upper deck w/ 85’ of 9/16-inch cable & shackle
Stake Pockets
Full length 48-inch centers with rub rail
Decking
1 3/8-inch Apitong flooring
Tie Downs
Finish
Sandblasted to near white primed and powder coated Color of choice
Notes
