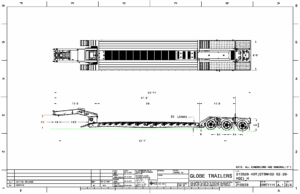

Lowboy · Drawing
01441690
GTBN402-52-29-HGG
- Capacity
- 40-Ton HGG
- Number of Axles
- 3
- Lower Deck Length
- 29'
- Overall Length
- 625"
- Rear Deck Height
- 42"
- Lower Deck Height
- 20"
- KingPin Style
- Fixed
- Model Type
- Full Deck
Specifications 42 of 49 fields recorded
Dimensions & Capacity
| Model Type | Full Deck |
|---|---|
| Capacity | 40-Ton HGG |
| Rear Deck Height | 42" |
| Lower Deck Height | 20" |
| Lower Deck Length | 29' |
| Rear Deck Length (PO) | 122" |
| Rear Deck Length (Design) | — |
| Overall Length | 625" |
| Overall Width | 102" |
| Ground Clearance | 6" |
Gooseneck & King Pin
| GN Length | 155" |
|---|---|
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 110" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Well Decking | Removable D-Plate - Full Length |
Frame & Deck
| Main Beam Center | 40" |
|---|---|
| Deck Main Beam | 14" T-1 Steel |
| Deck Side Rail | 14" T-1 Steel |
| Crossmembers | 10" & 4" |
| Outrigger Type | Removable Std. |
| Front Ramps | Steel 18" x 31" Std. |
| Riser (Transition) Ramp | 35° Rear Bridge Ramp |
| Rear Deck Beam | 16.5" T-1 Steel |
| Rear Well Style | Boom & Bucket Well |
| D-Ring in Tail | 2 Ea Side |
| Rear Deck Option (Beavertail) | — |
| Wood | 1.75" Apitong - Open Center |
| Wheel Covers | Steel Covered D-Plate |
| Rear Bolster D-Rings | — |
Axles & Suspension
| Number of Axles | 3 |
|---|---|
| Axle Spacings | 54" |
| Axle Track | 76 1/2" |
| ABS | 2S1M |
| Axle 1 | Fixed Type 30/30 Non-ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Hydraulic Flip Type 30 Non-ABS |
| Axle 4 | — |
| Suspension Type | Cush Air Ride Suspension - 25K |
| Dump Type | Manual |
| Ride Height Adjuster | Yes |
| Flip Axle Set Up | Set up for hydraulic powered flip |
Wheels & Electrical
| Tire | 255/70R x 22.5 "H" |
|---|---|
| Rims | 8.25 x 22.5 Hub Piloted Outer Aluminum |
Options & Finish
| Fenders | — |
|---|---|
| Motor | 13 HP Honda - Gas |
| Flip Box Set Up | — |
| Wide Load Sign Cutout | — |
Notes
PSI tire inflation added to all axles
Added d-ring to very front of main deck side rail, mounted on an angle
both sides
(4) 4" lights per side of each bumper S/T/S/Strobe with "Visor" chrome bezels
(6) sets of d-rings spaced evenly down middle of main deck, between main beams
Additional lights between every outrigger, bolster, (6) lights per side inside of boom well, (2) inside of flip axle, & bolsters
Chain slots down each side of main deck and tail
Lockable tool box behind GN in middle of main deck
"California" connections at GN base
All accessories to be Viper Red in color
Reproduction of 230461 with standard 110" GN
No drawing image on file.
