01206487
GTBN552-51-29-HGG
- 55-Ton HGG
- 29'
- 613"

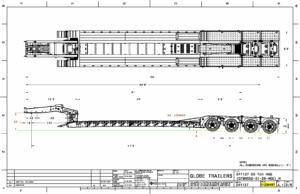

Lowboy · Drawing
01255226
GTBN552-51-29-HGG
- Capacity
- 55-Ton HGG
- Number of Axles
- 4
- Lower Deck Length
- 29'
- Overall Length
- 613"
- Rear Deck Height
- 42"
- Lower Deck Height
- 22"
- KingPin Style
- 2-Position Removable
- Model Type
- Full Deck
Specifications 44 of 49 fields recorded
Dimensions & Capacity
| Model Type | Full Deck |
|---|---|
| Capacity | 55-Ton HGG |
| Rear Deck Height | 42" |
| Lower Deck Height | 22" |
| Lower Deck Length | 29' |
| Rear Deck Length (PO) | 118" |
| Rear Deck Length (Design) | — |
| Overall Length | 613" |
| Overall Width | 102" |
| Ground Clearance | 6" |
Gooseneck & King Pin
| GN Length | 147" |
|---|---|
| KingPin Style | 2-Position Removable |
| KingPin Setting | 16" & 32" |
| Swing Clearance | 102" & 86" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Well Decking | Removable D-Plate - Full Length |
Frame & Deck
| Main Beam Center | 40" |
|---|---|
| Deck Main Beam | 16" T-1 Steel Std. |
| Deck Side Rail | 16" T-1 Steel |
| Crossmembers | 10" & 4" |
| Outrigger Type | Full Height Removable |
| Front Ramps | Steel 18" x 31" Std. |
| Riser (Transition) Ramp | 90° w/6' Air Transition Ramps |
| Rear Deck Beam | 16.5" T-1 Steel |
| Rear Well Style | Boom & Bucket Well |
| D-Ring in Tail | 3 Ea Side |
| Rear Deck Option (Beavertail) | — |
| Wood | 1.75" Apitong - Open Center |
| Wheel Covers | Steel Covered D-Plate |
| Rear Bolster D-Rings | — |
Axles & Suspension
| Number of Axles | 4 |
|---|---|
| Axle Spacings | 54" |
| Axle Track | 76 1/2" |
| ABS | 2S1M |
| Axle 1 | Fixed Type 30/30 Non-ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Hydraulic Flip Type 30 Non-ABS |
| Axle 4 | Manual Flip Type 30 Non-ABS |
| Suspension Type | Cush Air Ride Suspension - 25K |
| Dump Type | Manual |
| Ride Height Adjuster | Manual Turn Dial |
| Flip Axle Set Up | Set up for hydraulic powered flip |
Wheels & Electrical
| Tire | 275/70R x 22.5 "H" |
|---|---|
| Rims | 8.25 x 22.5 Hub Piloted All Aluminum |
Options & Finish
| Fenders | — |
|---|---|
| Motor | 13 HP Honda - Gas |
| Flip Box Set Up | 24" Flip Box & Set Up, Hydraulic Powered Flip Box |
| Wide Load Sign Cutout | — |
Notes
Expanded metal w/lockable lids in 1st bay behind GN and last bay before bucket pan
Open storage with expanded metal in all open bays in middle of main deck
2 lights between each outrigger. Extra lights on GN and at bolsters on rear deck with clear lenses w/chrome bezels
Clear "white" lights mounted inside of bolsters to light up controls, including GN controls and pony motor
Chain Slots 24" On Centers Both side rails & Chain slots on bolsters and on flip axles
(4) 4" clear lenses LED lights on each side of both bumpers
Turn/Stop/Stop/Strobe with chrome bezels
(6) sets of pull-up d-rings in middle of main deck and (1) set inside boom well
Additional amber lights added inside of main deck beams, boom well, & flip axles to be clear lenses w/chrome bezels
Flip box to be hydraulic powered
Flange stiffeners down each side of the main deck
No drawing image on file.

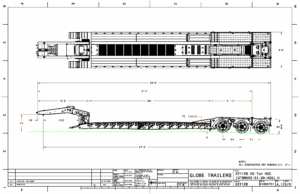

Other drawings with model GTBN552-51-29-HGG
