01217732
GTBN553-53-25-BR
- 50-Ton GG
- 3
- 25'

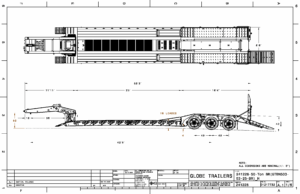

Lowboy · Drawing
01245671
GTBN553-53-25-BR
- Capacity
- 55-Ton GG
- Number of Axles
- 3
- Lower Deck Length
- 25'
- Overall Length
- 639"
- Rear Deck Height
- 42"
- Lower Deck Height
- 22" w/ 6" GC
- KingPin Style
- Fixed
- Model Type
- Full Deck
Specifications 42 of 49 fields recorded
Dimensions & Capacity
| Model Type | Full Deck |
|---|---|
| Capacity | 55-Ton GG |
| Rear Deck Height | 42" |
| Lower Deck Height | 22" w/ 6" GC |
| Lower Deck Length | 25' |
| Rear Deck Length (PO) | 196" |
| Rear Deck Length (Design) | — |
| Overall Length | 639" |
| Overall Width | 102" |
| Ground Clearance | 6" |
Gooseneck & King Pin
| GN Length | 143" |
|---|---|
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 98" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Well Decking | Removable V-Style - Full Length |
Frame & Deck
| Main Beam Center | 40" |
|---|---|
| Deck Main Beam | 16" T-1 Steel Std. |
| Deck Side Rail | 16" T-1 Steel |
| Crossmembers | 10" & 4" |
| Outrigger Type | Full Height Removable |
| Front Ramps | Integrated Fixed Ramps |
| Riser (Transition) Ramp | 90° w/6' Air Transition Ramps |
| Rear Deck Beam | 16.5" T-1 Steel |
| Rear Well Style | Boom & Bucket Well |
| D-Ring in Tail | 3 Ea Side |
| Rear Deck Option (Beavertail) | Beavertail 36" w/ Rear Ramps 36 x 72, Hydraulic, Cleated |
| Wood | 1.75" Apitong - Open Center |
| Wheel Covers | Steel Covered D-Plate |
| Rear Bolster D-Rings | — |
Axles & Suspension
| Number of Axles | 3 |
|---|---|
| Axle Spacings | 49" |
| Axle Track | 76.5" |
| ABS | 2S1M |
| Axle 1 | Fixed Type 30/30 Non-ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Super Lift Type 30 Non-ABS |
| Axle 4 | — |
| Suspension Type | Cush Air Ride Suspension - 25K |
| Dump Type | Auto |
| Ride Height Adjuster | Manual Turn Dial |
| Flip Axle Set Up | — |
Wheels & Electrical
| Tire | 255/70R x 22.5 "H" |
|---|---|
| Rims | 8.25 x 22.5 Hub Piloted Outer Aluminum |
Options & Finish
| Fenders | — |
|---|---|
| Motor | 13 HP Honda - Gas |
| Flip Box Set Up | — |
| Wide Load Sign Cutout | — |
Notes
Lockable tool box in 1st bay behind GN
Expanded metal for open storage in ALL bays in middle of main deck
Chain slots on each side of main deck and tail
Trailer to have pull out lights on 4 corners of deck set up with strobes
Trailer to have 1 light per outrigger with 3 additional lights on Gooseneck evenly spaced and 1 light per bolster
4 taillights per side on tailboard and ramps
Trailer Color RAL 5003 41-5003
Trailer Painted Accessories Cumulus Grey Metallic 41-510
Trailer Gooseneck to have Cumulus Grey Metallic Wet Paint Inset on web of gooseneck 41-510Q+
