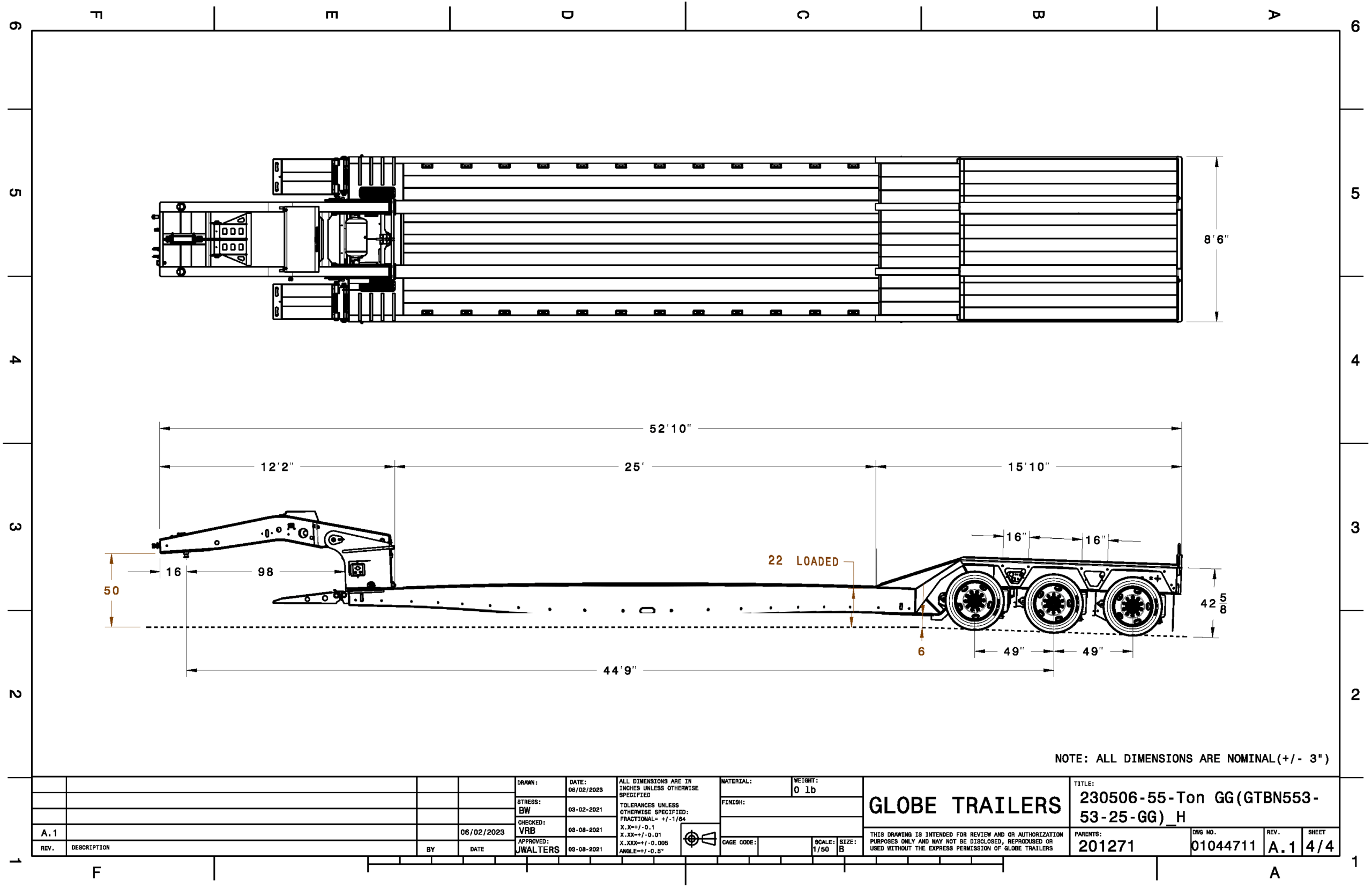

Lowboy · Drawing
01044711
GTBN553-53-25-GG
- Capacity
- 55-Ton GG
- Lower Deck Length
- 25' I
- Overall Length
- 634"
- Rear Deck Height
- 42"
- Lower Deck Height
- 22"
- Model Type
- PaverDeck
Specifications 13 of 49 fields recorded
Dimensions & Capacity
| Model Type | PaverDeck |
|---|---|
| Capacity | 55-Ton GG |
| Rear Deck Height | 42" |
| Lower Deck Height | 22" |
| Lower Deck Length | 25' I |
| Rear Deck Length (PO) | 190" |
| Rear Deck Length (Design) | — |
| Overall Length | 634" |
| Overall Width | 102" |
| Ground Clearance | 6" |
Gooseneck & King Pin
| GN Length | 144" |
|---|---|
| KingPin Style | — |
| KingPin Setting | — |
| Swing Clearance | — |
| Fifth Wheel Height | — |
| Ride Height | — |
| Well Decking | — |
Frame & Deck
| Main Beam Center | — |
|---|---|
| Deck Main Beam | — |
| Deck Side Rail | — |
| Crossmembers | — |
| Outrigger Type | — |
| Front Ramps | Paver Ramps Adjustable Width - 22-inch x 41-inch (Wood Filled) |
| Riser (Transition) Ramp | — |
| Rear Deck Beam | — |
| Rear Well Style | — |
| D-Ring in Tail | — |
| Rear Deck Option (Beavertail) | — |
| Wood | — |
| Wheel Covers | — |
| Rear Bolster D-Rings | NA |
Axles & Suspension
| Number of Axles | — |
|---|---|
| Axle Spacings | — |
| Axle Track | — |
| ABS | — |
| Axle 1 | — |
| Axle 2 | — |
| Axle 3 | — |
| Axle 4 | — |
| Suspension Type | — |
| Dump Type | — |
| Ride Height Adjuster | — |
| Flip Axle Set Up | — |
Wheels & Electrical
| Tire | — |
|---|---|
| Rims | — |
Options & Finish
| Fenders | — |
|---|---|
| Motor | — |
| Flip Box Set Up | — |
| Wide Load Sign Cutout | STD 49-inch |
Click the drawing to zoom.
