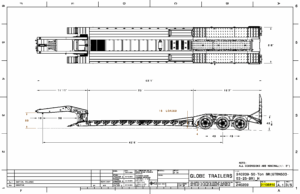

Lowboy · Drawing
00995400
GTBN503-53-25-BR
- Capacity
- 50-Ton GG
- Number of Axles
- 3
- Lower Deck Length
- 300"
- Overall Length
- 636"
- Rear Deck Height
- 44"
- Lower Deck Height
- 24"
- KingPin Style
- Fixed
- Model Type
- Full Deck
Specifications 48 of 49 fields recorded
Dimensions & Capacity
| Model Type | Full Deck |
|---|---|
| Capacity | 50-Ton GG |
| Rear Deck Height | 44" |
| Lower Deck Height | 24" |
| Lower Deck Length | 300" |
| Rear Deck Length (PO) | 205" |
| Rear Deck Length (Design) | — |
| Overall Length | 636" |
| Overall Width | 102" |
| Ground Clearance | 8" |
Gooseneck & King Pin
| GN Length | 143" |
|---|---|
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 98" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Well Decking | Open |
Frame & Deck
| Main Beam Center | 40" |
|---|---|
| Deck Main Beam | 16" T-1 Steel Std. |
| Deck Side Rail | 16" T-1 Steel |
| Crossmembers | 10" & 4" at 12" spacing |
| Outrigger Type | Full Height Removable |
| Front Ramps | Wood-filled paver ramps, adjustable width, 22" x 41" |
| Riser (Transition) Ramp | 90 degrees w/ 6' Air Transition Ramps |
| Rear Deck Beam | 16.5" T-1 Steel |
| Rear Well Style | Apitong Covered |
| D-Ring in Tail | 4 each side |
| Rear Deck Option (Beavertail) | 30" beavertail; rear ramps 36 x 72, Apitong tread |
| Wood | 1.75" Apitong - Open Center |
| Wheel Covers | Steel Covered D-Plate |
| Rear Bolster D-Rings | 4 each side |
Axles & Suspension
| Number of Axles | 3 |
|---|---|
| Axle Spacings | 49" |
| Axle Track | 76 1/2" |
| ABS | 2S1M |
| Axle 1 | Fixed Type 30/30 Non-ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Super Lift Type 30 Non-ABS |
| Axle 4 | None |
| Suspension Type | Cush Air Ride Suspension - 25K |
| Dump Type | Auto Dump |
| Ride Height Adjuster | Manual override |
| Flip Axle Set Up | No |
Wheels & Electrical
| Tire | 275/70R x 22.5 H |
|---|---|
| Rims | 8.25 x 22.5 Hub Piloted Outer Aluminum |
Options & Finish
| Fenders | No |
|---|---|
| Motor | 13 HP Honda - Gas |
| Flip Box Set Up | No |
| Wide Load Sign Cutout | Not required |
Click the drawing to zoom.

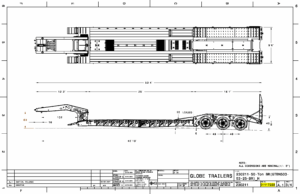

Other drawings with model GTBN503-53-25-BR
