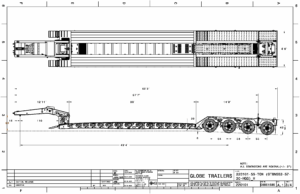

00951585
GTBN553-57-30-HGG
- 55-Ton HGG
- 4
- 360"

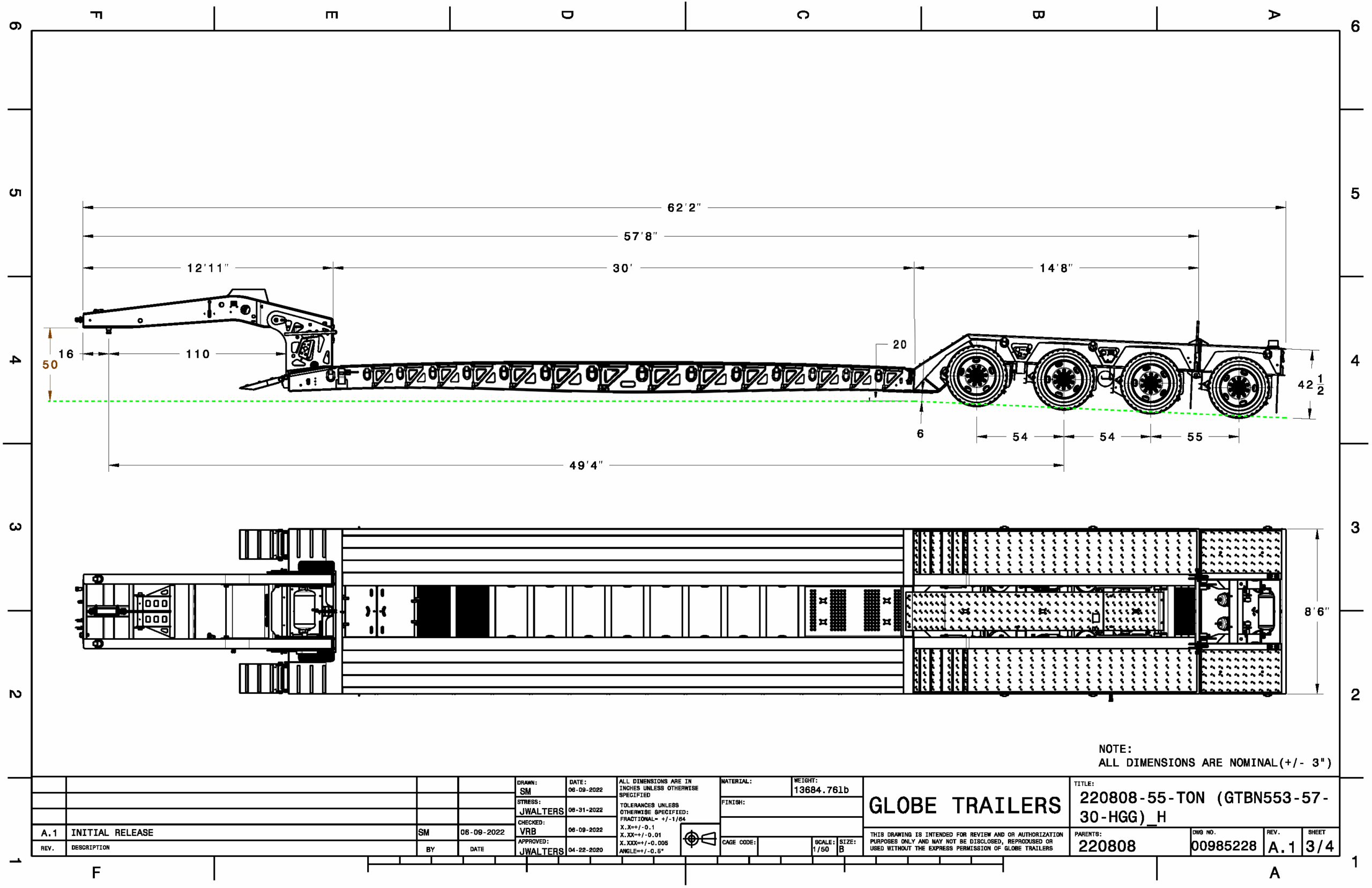

Lowboy · Drawing
00985228
GTBN553-57-30-HGG
Specifications 11 of 49 fields recorded
Dimensions & Capacity
| Model Type | — |
|---|---|
| Capacity | — |
| Rear Deck Height | — |
| Lower Deck Height | — |
| Lower Deck Length | — |
| Rear Deck Length (PO) | — |
| Rear Deck Length (Design) | — |
| Overall Length | — |
| Overall Width | — |
| Ground Clearance | — |
Gooseneck & King Pin
| GN Length | — |
|---|---|
| KingPin Style | — |
| KingPin Setting | — |
| Swing Clearance | 110" |
| Fifth Wheel Height | 50" |
| Ride Height | — |
| Well Decking | — |
Frame & Deck
| Main Beam Center | 40" |
|---|---|
| Deck Main Beam | — |
| Deck Side Rail | — |
| Crossmembers | — |
| Outrigger Type | — |
| Front Ramps | Steel - 18-inch x 31-inch |
| Riser (Transition) Ramp | — |
| Rear Deck Beam | — |
| Rear Well Style | — |
| D-Ring in Tail | — |
| Rear Deck Option (Beavertail) | — |
| Wood | — |
| Wheel Covers | — |
| Rear Bolster D-Rings | 2 |
Axles & Suspension
| Number of Axles | — |
|---|---|
| Axle Spacings | 54" |
| Axle Track | — |
| ABS | — |
| Axle 1 | — |
| Axle 2 | — |
| Axle 3 | Super Lift Type 30 Non-ABS |
| Axle 4 | Hydraulic Flip Type 30 Non-ABS |
| Suspension Type | — |
| Dump Type | — |
| Ride Height Adjuster | — |
| Flip Axle Set Up | — |
Wheels & Electrical
| Tire | 275/70R x 22.5 "H" |
|---|---|
| Rims | 8.25 x 22.5 Hub Piloted All Aluminum |
Options & Finish
| Fenders | — |
|---|---|
| Motor | — |
| Flip Box Set Up | — |
| Wide Load Sign Cutout | STD 49-inch |
Click the drawing to zoom.
