01157374
GTBN503-53-24-BR
- 50-Ton GG
- 24'
- 636"

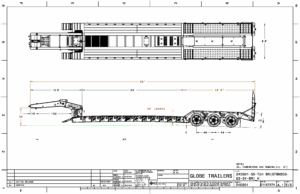

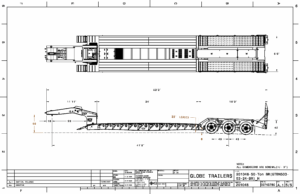

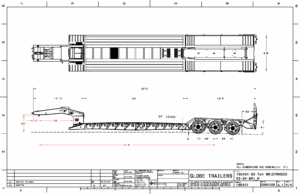

Lowboy · Drawing
00728730
GTBN503-53-24-BR
- Capacity
- 50-Ton BR
- Number of Axles
- 3
- Lower Deck Length
- 300"
- Overall Length
- 636"
- Rear Deck Height
- 42.12"
- Lower Deck Height
- 18"
- KingPin Style
- Fixed
- Model Type
- Full Deck
Specifications 45 of 49 fields recorded
Dimensions & Capacity
| Model Type | Full Deck |
|---|---|
| Capacity | 50-Ton BR |
| Rear Deck Height | 42.12" |
| Lower Deck Height | 18" |
| Lower Deck Length | 300" |
| Rear Deck Length (PO) | 193" |
| Rear Deck Length (Design) | — |
| Overall Length | 636" |
| Overall Width | 102" |
| Ground Clearance | — |
Gooseneck & King Pin
| GN Length | 143" |
|---|---|
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 98" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Well Decking | Removable V-Style Full Length |
Frame & Deck
| Main Beam Center | 40" |
|---|---|
| Deck Main Beam | 16" T-1 Steel |
| Deck Side Rail | 16" T-1 Steel |
| Crossmembers | 10" & 4" |
| Outrigger Type | Full Height Removable |
| Front Ramps | Steel, 18" x 31" Standard |
| Riser (Transition) Ramp | 4' Air Transition Ramps |
| Rear Deck Beam | 16" |
| Rear Well Style | Boom & Bucket Well |
| D-Ring in Tail | 4 |
| Rear Deck Option (Beavertail) | Yes |
| Wood | Apitong - Closed Center. |
| Wheel Covers | Steel Covered D-Plate |
| Rear Bolster D-Rings | 3 |
Axles & Suspension
| Number of Axles | 3 |
|---|---|
| Axle Spacings | 49" |
| Axle Track | — |
| ABS | None |
| Axle 1 | Fixed Type 30/30 Non-ABS |
| Axle 2 | Fixed Type 30/30 Non-ABS |
| Axle 3 | Super Lift Type 30/30 Non-ABS |
| Axle 4 | None |
| Suspension Type | Air Ride Suspension-25K |
| Dump Type | Manual |
| Ride Height Adjuster | No |
| Flip Axle Set Up | — |
Wheels & Electrical
| Tire | 255/70R x 22.5" H |
|---|---|
| Rims | 8.25 x 22.5 Hub Piloted Outer Aluminum |
Options & Finish
| Fenders | No |
|---|---|
| Motor | No |
| Flip Box Set Up | No |
| Wide Load Sign Cutout | STD 49-inch |

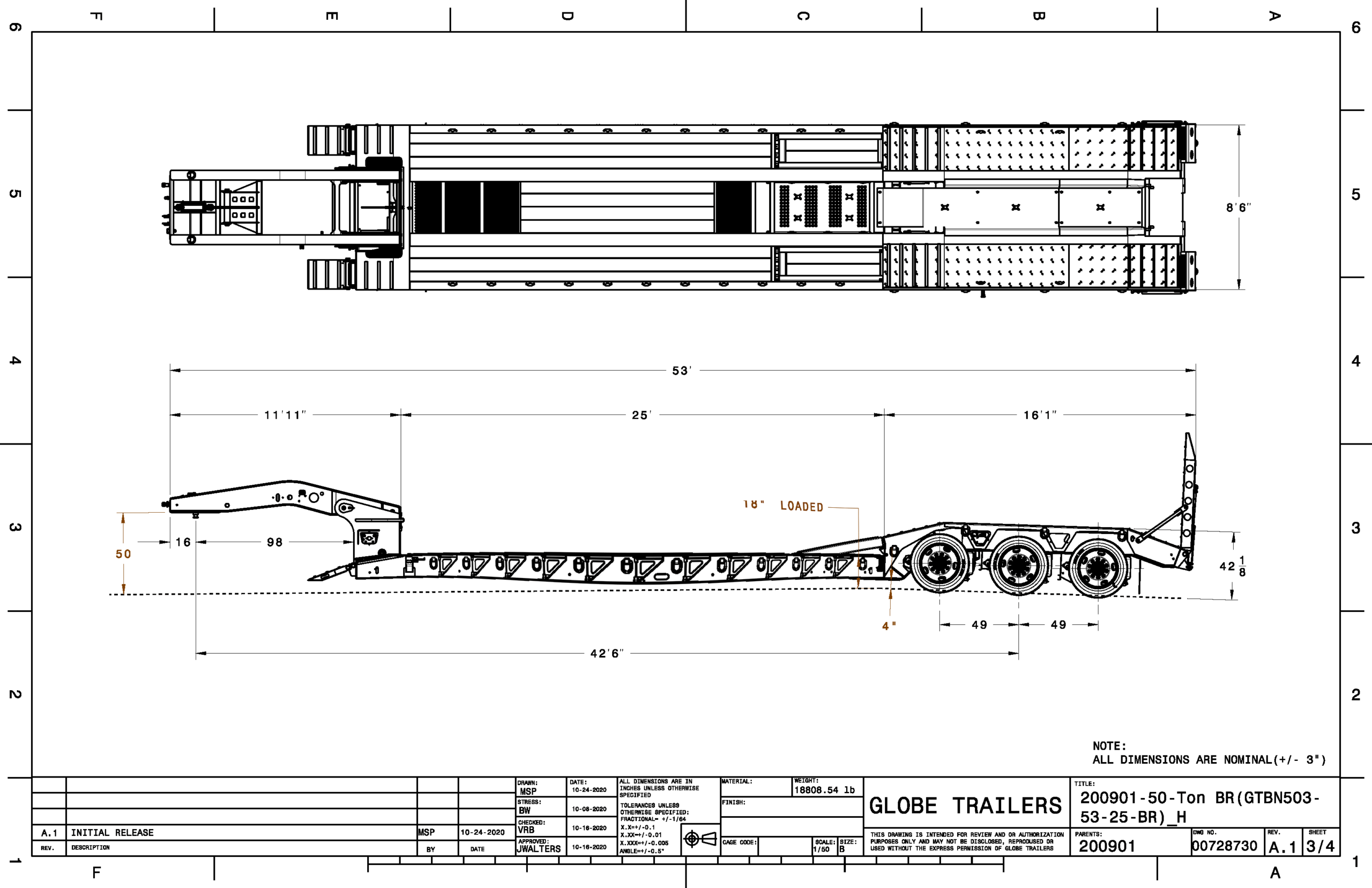

Click the drawing to zoom.
