Lowboy · Drawing
00674328
GTBN553-52-24-HGG
- Number of Axles
- 3
- KingPin Style
- Fixed
Specifications 23 of 49 fields recorded
Dimensions & Capacity
| Model Type | — |
|---|---|
| Capacity | — |
| Rear Deck Height | — |
| Lower Deck Height | — |
| Lower Deck Length | — |
| Rear Deck Length (PO) | — |
| Rear Deck Length (Design) | — |
| Overall Length | — |
| Overall Width | — |
| Ground Clearance | — |
Gooseneck & King Pin
| GN Length | — |
|---|---|
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 102" |
| Fifth Wheel Height | — |
| Ride Height | 5-Position |
| Well Decking | — |
Frame & Deck
| Main Beam Center | 58" Standard |
|---|---|
| Deck Main Beam | 16" T-1 Steel |
| Deck Side Rail | 16" T-1 Steel |
| Crossmembers | 10" & 4" |
| Outrigger Type | Full Height Removable |
| Front Ramps | Steel, 18" x 31" Standard |
| Riser (Transition) Ramp | 35° Rear Bridge Ramp |
| Rear Deck Beam | — |
| Rear Well Style | Boom & Bucket Well |
| D-Ring in Tail | — |
| Rear Deck Option (Beavertail) | — |
| Wood | — |
| Wheel Covers | Steel Covered D-Plate |
| Rear Bolster D-Rings | 2 |
Axles & Suspension
| Number of Axles | 3 |
|---|---|
| Axle Spacings | 54" |
| Axle Track | — |
| ABS | 2S1M |
| Axle 1 | Fixed Type 30/30 Non-ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Super Lift Type 30 Non-ABS |
| Axle 4 | — |
| Suspension Type | — |
| Dump Type | — |
| Ride Height Adjuster | — |
| Flip Axle Set Up | — |
Wheels & Electrical
| Tire | 255/70R x 22.5 "H" |
|---|---|
| Rims | 8.25 x 22.5 Hub Piloted Steel |
Options & Finish
| Fenders | — |
|---|---|
| Motor | — |
| Flip Box Set Up | — |
| Wide Load Sign Cutout | 67-inch |

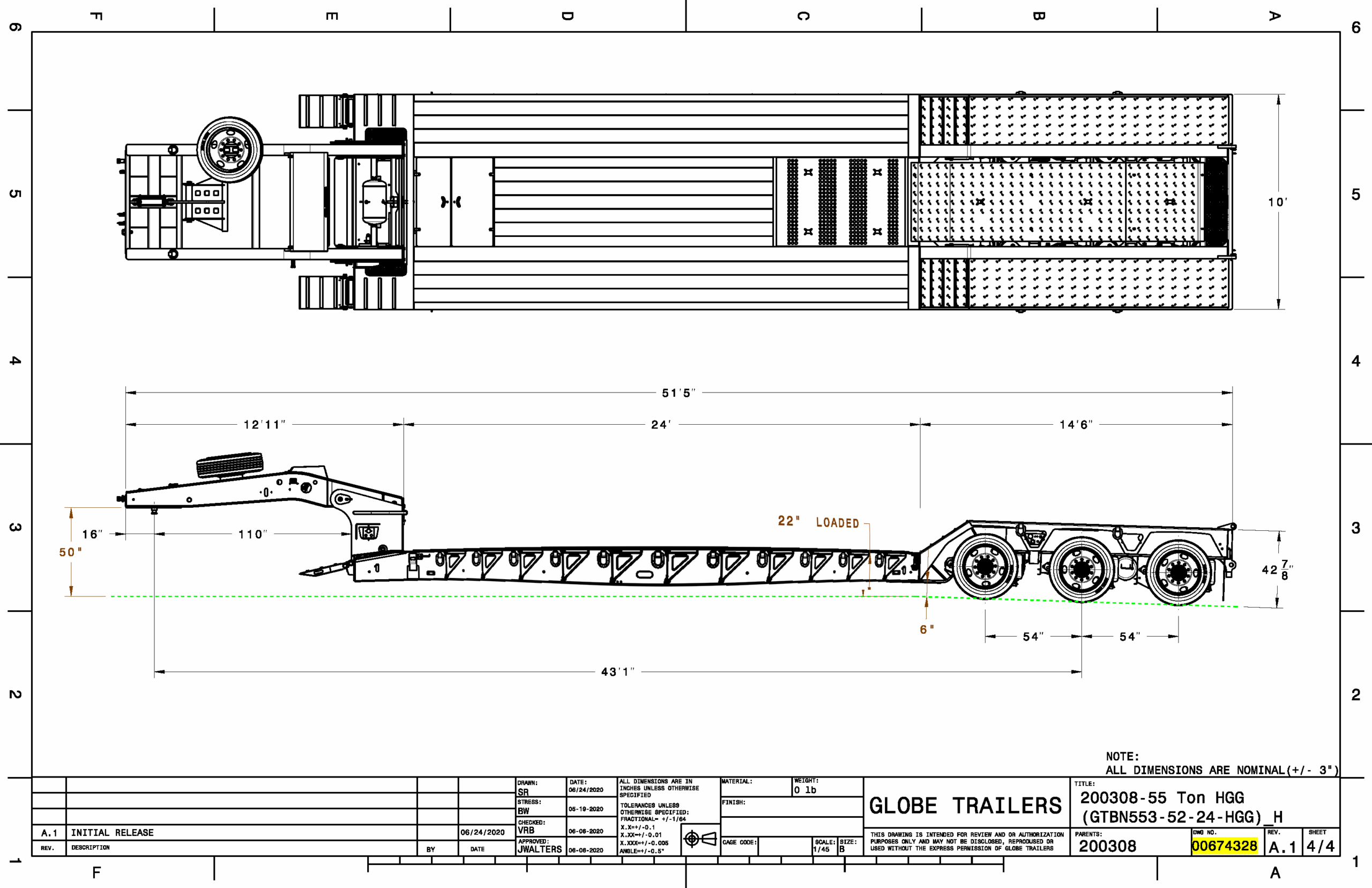

Click the drawing to zoom.
