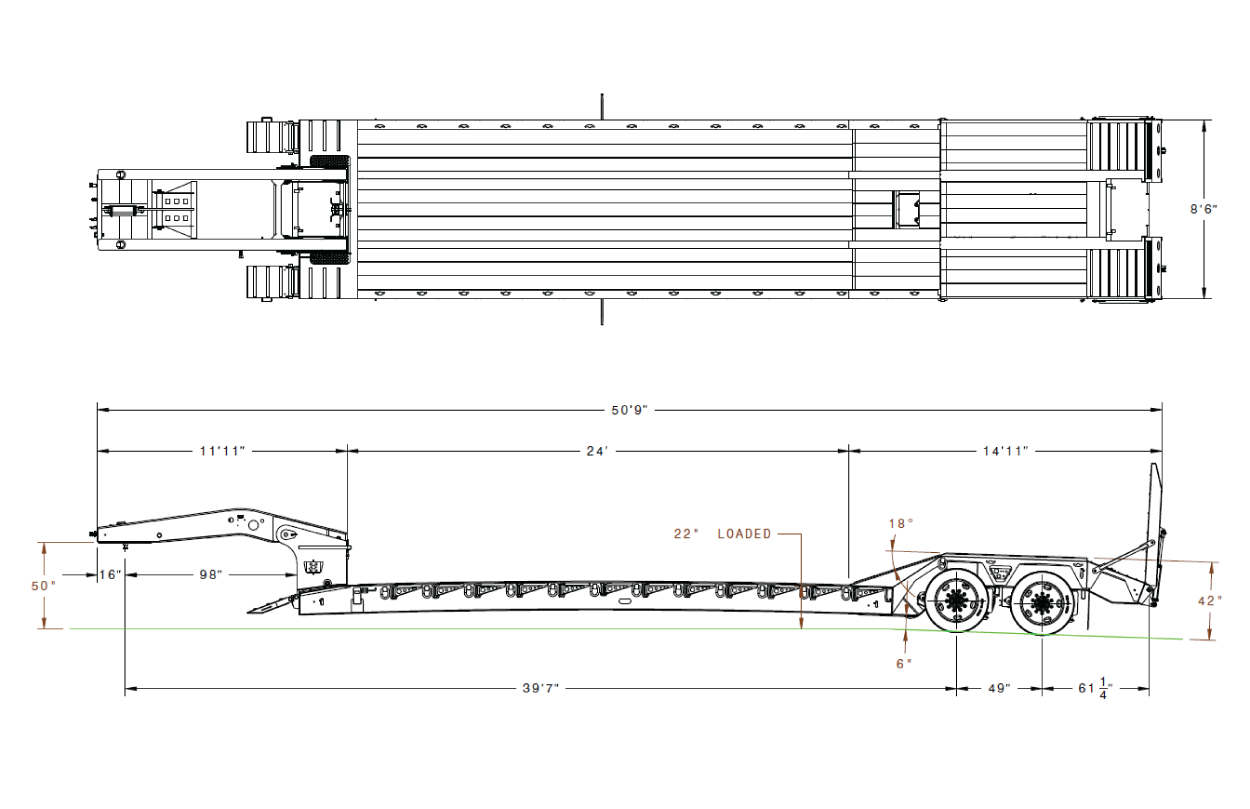

Lowboy · Drawing
00485529
GTBN352-50-24-BR
- Capacity
- 35-Ton BR
- Number of Axles
- 2
- Lower Deck Length
- 288"
- Overall Length
- 601"
- Rear Deck Height
- 42"
- Lower Deck Height
- 24"
- KingPin Style
- Fixed
- Model Type
- Full Deck
Specifications 47 of 49 fields recorded
Dimensions & Capacity
| Model Type | Full Deck |
|---|---|
| Capacity | 35-Ton BR |
| Rear Deck Height | 42" |
| Lower Deck Height | 24" |
| Lower Deck Length | 288" |
| Rear Deck Length (PO) | 158" |
| Rear Deck Length (Design) | 158" |
| Overall Length | 601" |
| Overall Width | 102" |
| Ground Clearance | 8" |
Gooseneck & King Pin
| GN Length | 131", 143" |
|---|---|
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 98" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Well Decking | Wood Covered Flush |
Frame & Deck
| Main Beam Center | 40" Standard |
|---|---|
| Deck Main Beam | 16" T-1 Steel |
| Deck Side Rail | 16" T-1 Steel |
| Crossmembers | 10" & 4" |
| Outrigger Type | Removable Standard |
| Front Ramps | Steel, 18" x 31" Standard |
| Riser (Transition) Ramp | 18° Rear Bridge Ramp |
| Rear Deck Beam | 16.5" |
| Rear Well Style | Wood covered |
| D-Ring in Tail | 1 |
| Rear Deck Option (Beavertail) | Beavertail 36", Rear Ramps 36" x 72", Hydraulic, Cleated |
| Wood | Apitong Full Width |
| Wheel Covers | Covered wood load bearing |
| Rear Bolster D-Rings | — |
Axles & Suspension
| Number of Axles | 2 |
|---|---|
| Axle Spacings | 49" |
| Axle Track | 76.5" |
| ABS | 2S1M |
| Axle 1 | Fixed Type 30/30 Non-ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | None |
| Axle 4 | None |
| Suspension Type | Cush Air Ride Suspension-25K |
| Dump Type | Auto |
| Ride Height Adjuster | No |
| Flip Axle Set Up | No |
Wheels & Electrical
| Tire | 255/70R x 22.5" H |
|---|---|
| Rims | 8.25 x 22.5 Steel Wheels |
Options & Finish
| Fenders | No |
|---|---|
| Motor | No |
| Flip Box Set Up | No |
| Wide Load Sign Cutout | — |
Notes
1). Chain slots on side rails to include rear deck 2). Hubometer 3). 20K winch 4). Tool Box in Gooseneck with chain rack
