Description

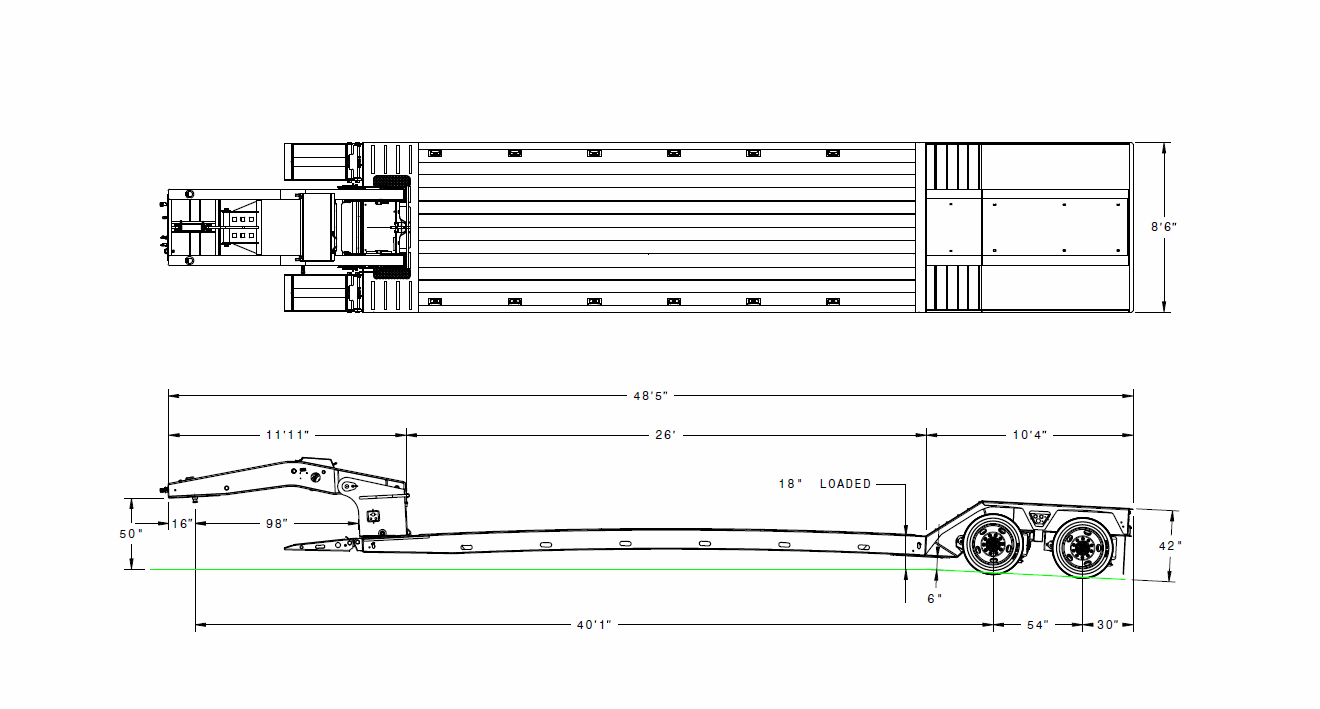

| Parameters of Product | Lowboy Trailer |
|---|---|
| Model Type | Full Deck |
| Capacity | 35-Ton GG |
| Rear Deck Height | 42" |
| Lower Deck Height | 18" w/ 6" GC |
| GN Length | 143" |
| Lower Deck Length | 312" |
| Rear Deck Length (PO) | 128" |
| Rear Deck Length (Design) | 124" |
| Overall Length | 579" |
| Overall Width | 102" |
| Ground Clearance | 6" |
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 98" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Fenders | No |
| Motor | Yes |
| Flip Box Set Up | No |
| Main Beam Center | 40" |
| Deck Main Beam | 12" |
| Deck Side Rail | 12" |
| Crossmembers | 8" & 4" |
| Outrigger Type | None |
| Front Ramps | Wood Filled 22" x 41" |
| Number of Axles | 2 |
| Axle Spacings | 54" |
| Axle Track | 76.5" |
| ABS | 2S1M |
| Axle 1 | Fixed Type 30/30 Non-ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | None |
| Axle 4 | None |
| Suspension Type | Cush Air Ride Suspension-25K |
| Dump Type | Manual |
| Ride Height Adjuster | Yes |
| Riser (Transition) Ramp | 35° Rear Bridge Ramp |
| Rear Deck Beam | 16.5" |
| Rear Well Style | Wood Filled Center 1/4" Raised |
| D-Ring in Tail | No |
| Flip Axle Set Up | No |
| Rear Deck Option (Beavertail) | No |
| Wood | Apitong Full Width |
| Wheel Covers | Steel Covered D-Plate |
| Well Decking | |
| Tire | 255/70R x 22.5" H |
| Rims | Piloted Outer Aluminum |
| Notes | Similar to Brochure 35LB171220 1. Full width deck NO bucket pan 2. Well decking to be load bearing, flush, diamond plate, removable 3. "New" style air suspension adjustment in curb side bolster 4. Wood filled, adjustable, spring loaded ramps 5. Flush mounted D-rings throughout deck set on 4' centers 6. No D-rings or outriggers on outside rail |
