Description

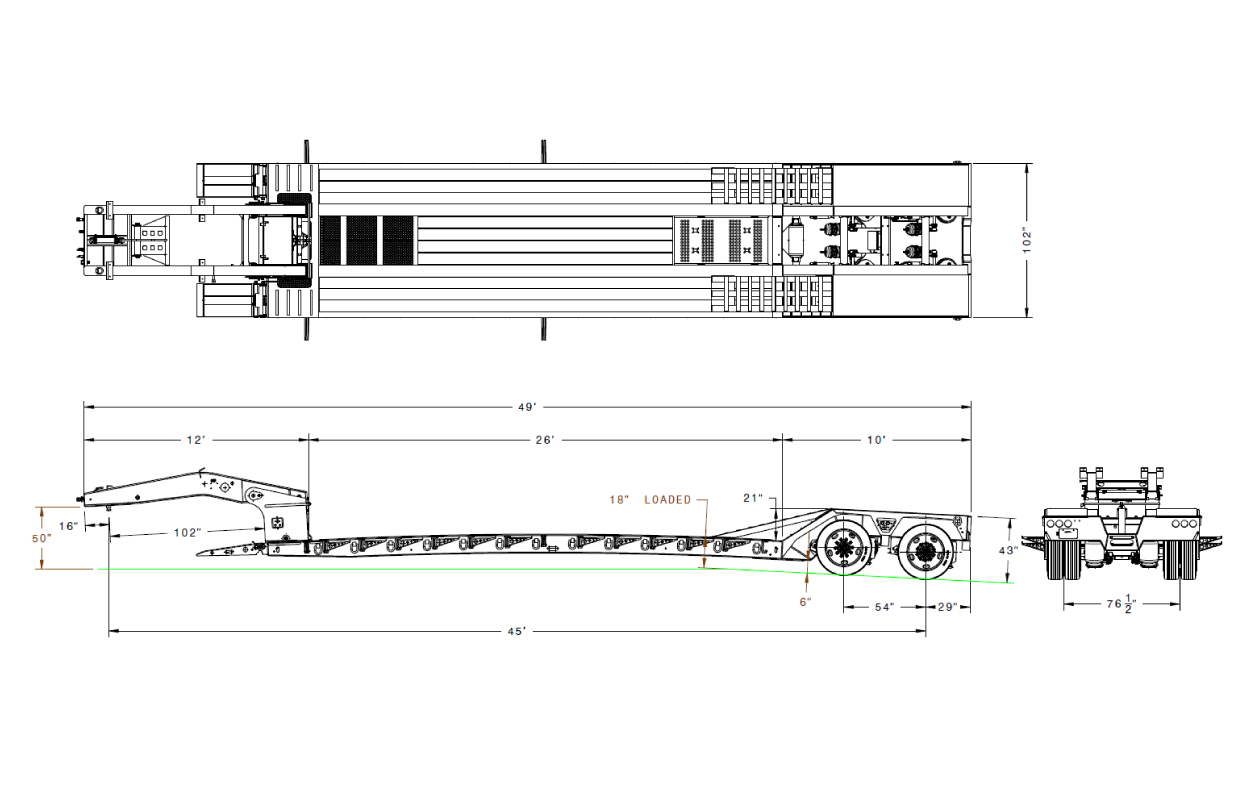

| Parameters of Product | Lowboy Trailer |
|---|---|
| Model Type | Full Deck |
| Capacity | 35-Ton GG |
| Rear Deck Height | 42" |
| Lower Deck Height | 18" w/ 6" GC |
| GN Length | 147" |
| Lower Deck Length | 312" |
| Rear Deck Length (PO) | 121" |
| Rear Deck Length (Design) | 124" |
| Overall Length | 583" |
| Overall Width | 102" |
| Ground Clearance | 6" |
| KingPin Style | Fixed |
| KingPin Setting | 16" |
| Swing Clearance | 102" |
| Fifth Wheel Height | 50" |
| Ride Height | 5-Position |
| Fenders | No |
| Motor | No |
| Flip Box Set Up | No |
| Main Beam Center | 40" |
| Deck Main Beam | 12" |
| Deck Side Rail | 12" |
| Crossmembers | 8" & 4" |
| Outrigger Type | Removable Standard |
| Front Ramps | Wood Filled 22" x 41" |
| Number of Axles | 2 |
| Axle Spacings | 54" |
| Axle Track | 76.5" |
| ABS | 2S1M |
| Axle 1 | Fixed Type 30 Non-ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | None |
| Axle 4 | None |
| Suspension Type | Cush Air Ride Suspension-25K |
| Dump Type | Manual |
| Ride Height Adjuster | Yes |
| Riser (Transition) Ramp | 35° Rear Bridge Ramp |
| Rear Deck Beam | 16.5" |
| Rear Well Style | Boom & Bucket V-Style |
| D-Ring in Tail | 1 |
| Flip Axle Set Up | No |
| Rear Deck Option (Beavertail) | No |
| Wood | Apitong Full Width |
| Wheel Covers | Steel Covered D-Plate |
| Well Decking | Open |
| Tire | 255/70R x 22.5" H |
| Rims | Piloted All Aluminum |
| Notes | Expanded Metal - 1st, 2nd and 3rd bays (2) D- Rings in center of main beams opening behind goose neck (4) D- Rings in Center of Main beams at rear well Aluminum Cover and chain racks in gooseneck base Front flip ramps to sit flat V-style rear bumper Air ride adjustment located in the passenger bolster Two additional 3/4" lights on each side of main deck Aluminum Removable Ramps for deck to tail Mount located on gooseneck for ramps R-1 Covers ramps to be wood filled adjustable, apitong full width decking, and color to BLACK |
