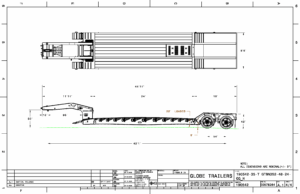

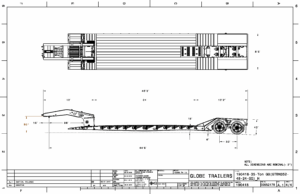

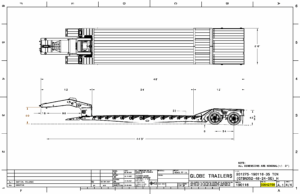

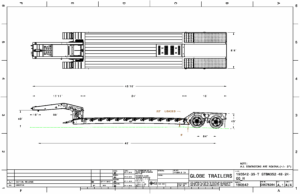

Lowboy · Drawing

00356748

GTBN352-48-24-GG

Download PDF

Capacity: 35-Ton GG
Number of Axles: 2
Lower Deck Length: 288"
Overall Length: 583"
Rear Deck Height: 42"
Lower Deck Height: 18" w/ 6" GC
KingPin Style: Fixed
Model Type: Full Deck

Specifications 48 of 49 fields recorded

Show empty fields

Dimensions & Capacity

Model Type	Full Deck
Capacity	35-Ton GG
Rear Deck Height	42"
Lower Deck Height	18" w/ 6" GC
Lower Deck Length	288"
Rear Deck Length (PO)	152"
Rear Deck Length (Design)	146"
Overall Length	583"
Overall Width	102"
Ground Clearance	6"

Gooseneck & King Pin

GN Length	143"
KingPin Style	Fixed
KingPin Setting	16"
Swing Clearance	98"
Fifth Wheel Height	50"
Ride Height	5-Position
Well Decking	Open

Frame & Deck

Main Beam Center	40"
Deck Main Beam	12" T-1 Steel
Deck Side Rail	12" T-1 Steel
Crossmembers	8" & 4"
Outrigger Type	Removable Standard
Front Ramps	Wood Filled 22" x 41"
Riser (Transition) Ramp	21° Apitong Covered Transition
Rear Deck Beam	16.5" T-1 Steel
Rear Well Style	Boom & Bucket V-Style
D-Ring in Tail	1 Ea Side
Rear Deck Option (Beavertail)	No
Wood	Apitong Full Width
Wheel Covers	Apitong Covered
Rear Bolster D-Rings	1 Ea Side

Axles & Suspension

Number of Axles	2
Axle Spacings	50"
Axle Track	76.5"
ABS	2S1M
Axle 1	Fixed Type 30 Non-ABS
Axle 2	Fixed Type 30/30 ABS
Axle 3	None
Axle 4	None
Suspension Type	Cush Air Ride Suspension-25K
Dump Type	Manual Dump
Ride Height Adjuster	Yes
Flip Axle Set Up	No

Wheels & Electrical

Tire	255/70R x 22.5" H
Rims	8.25 x 22.5 Hub Piloted All Aluminum

Options & Finish

Fenders	No
Motor	No
Flip Box Set Up	No
Wide Load Sign Cutout	—

Notes

1) Chain rack with aluminum lid in gooseneck base 2) Dropped 1st cross member in tail 3) "New" style air suspension adjustment in curb side bolster 4) Wood filled, adjustable, spring loaded ramps 5) Boom and bucket well
