Lowboy · Drawing
00231795
GTBN503-46-18-GG
- Capacity
- 50-Ton GG
- Number of Axles
- 3
- Lower Deck Length
- 18' 21
- Overall Length
- 549"
- Rear Deck Height
- 40"
- Lower Deck Height
- 24"
- KingPin Style
- Removable
- Model Type
- Full Deck
Specifications 47 of 49 fields recorded
Dimensions & Capacity
| Model Type | Full Deck |
|---|---|
| Capacity | 50-Ton GG |
| Rear Deck Height | 40" |
| Lower Deck Height | 24" |
| Lower Deck Length | 18' 21 |
| Rear Deck Length (PO) | 6" 190" |
| Rear Deck Length (Design) | Redesign |
| Overall Length | 549" |
| Overall Width | 102" |
| Ground Clearance | 8" |
Gooseneck & King Pin
| GN Length | 131" |
|---|---|
| KingPin Style | Removable |
| KingPin Setting | 16" |
| Swing Clearance | 86" |
| Fifth Wheel Height | 50" |
| Ride Height | 4-Position |
| Well Decking | Open |
Frame & Deck
| Main Beam Center | 41" Std. |
|---|---|
| Deck Main Beam | 16" T-1 Steel Std. |
| Deck Side Rail | 16" T-1 Steel Std. |
| Crossmembers | 10" & 4" |
| Outrigger Type | Full Height Removable |
| Front Ramps | Steel 18" x 31" Std. |
| Riser (Transition) Ramp | 35° Rear Bridge Ramp |
| Rear Deck Beam | 16.5" |
| Rear Well Style | Boom & Bucket Well |
| D-Ring in Tail | No, 3 |
| Rear Deck Option (Beavertail) | No |
| Wood | 1,75 Apitong - Open Center |
| Wheel Covers | Steel Covered D-Plate |
| Rear Bolster D-Rings | — |
Axles & Suspension
| Number of Axles | 3 |
|---|---|
| Axle Spacings | 60" |
| Axle Track | 77.5" |
| ABS | 4S2M |
| Axle 1 | Fixed Type 30/30 ABS |
| Axle 2 | Fixed Type 30/30 ABS |
| Axle 3 | Super Lift Type 30 Non-ABS |
| Axle 4 | None |
| Suspension Type | Single point suspension 1st two (2) axles and super lift air ride 3rd axle |
| Dump Type | No |
| Ride Height Adjuster | No |
| Flip Axle Set Up | Set Up for Flip Box Only |
Wheels & Electrical
| Tire | 255/70R x 22.5" H |
|---|---|
| Rims | 8.25 x 22.5 Hub Piloted Steel |
Options & Finish
| Fenders | No |
|---|---|
| Motor | 13 HP Honda - Gas |
| Flip Box Set Up | Set Up for Flip Box Only |
| Wide Load Sign Cutout | — |
Notes
1). Diamond Steel fenders on GN. Should allow for 8"-9" clearance between fenders and tires, with a short mud flap in the front and a chain hanger set up. 2). tool box with expanded metal 3). 4" Yellow lights outside of the turn lights. 4). Single point suspension 1st two (2) axles and super lift air ride 3rd axle.

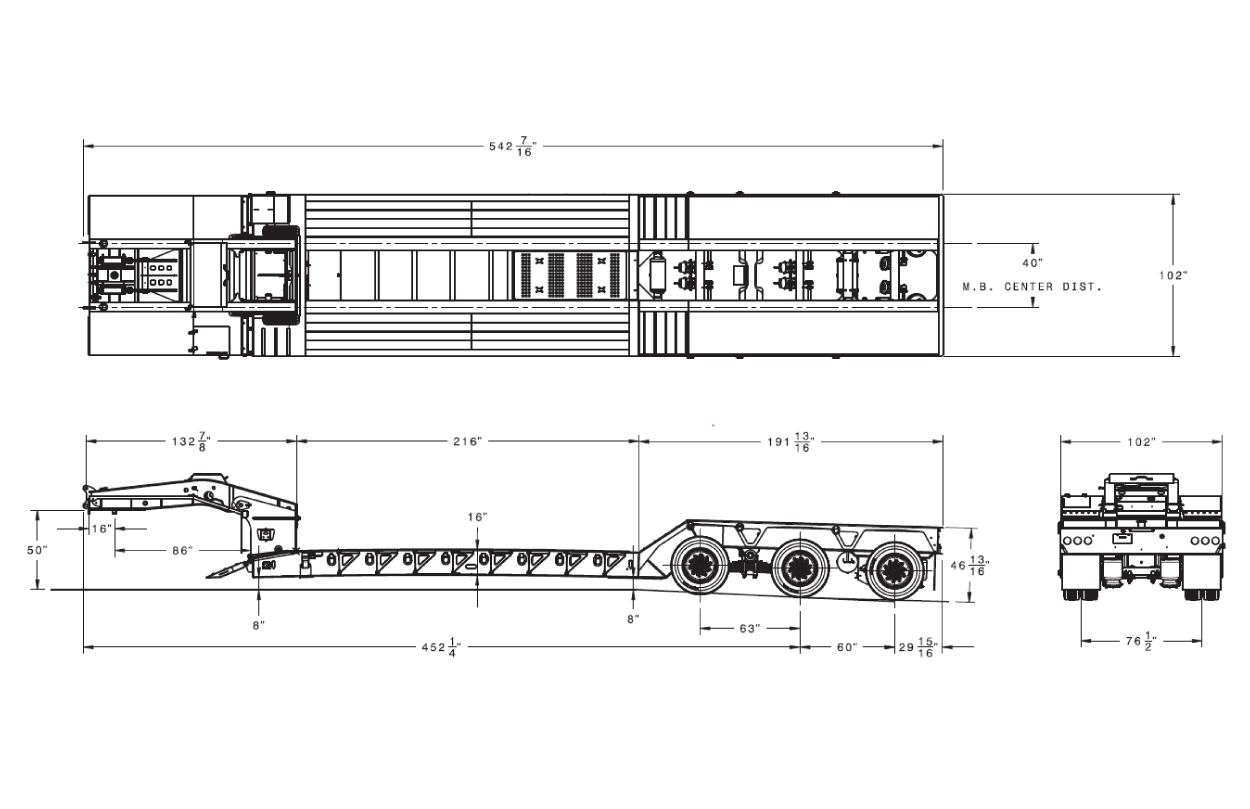

Click the drawing to zoom.
