00852491

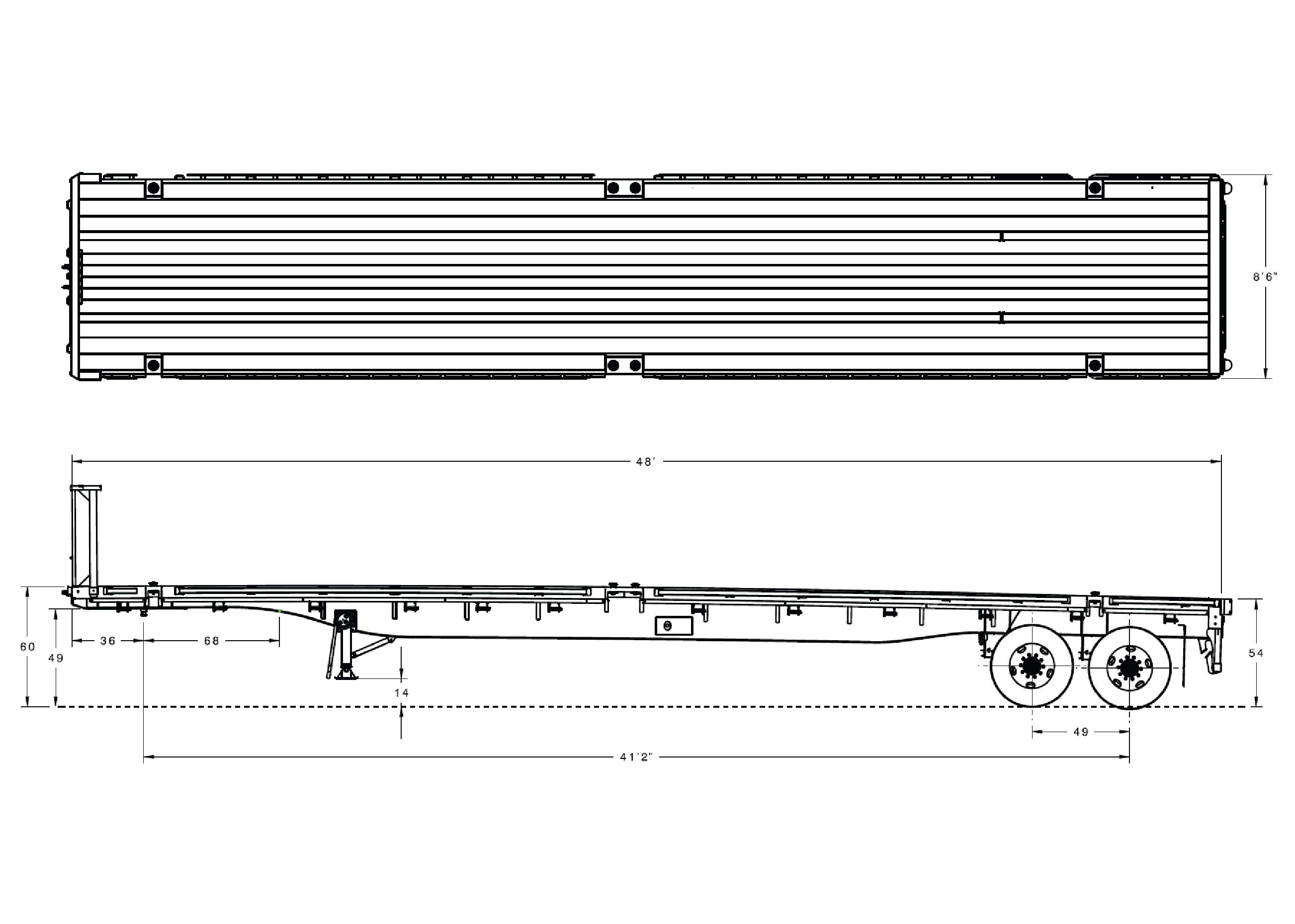

Parameters of Product

Flatbed Trailer

Model Number

00852491

Model Type

Regular

Capacity

40 Ton

Overall Length

576-inch

Overall Height w/Front Header

Overall Width

102-inch

5th Wheel Height

49-inch

Rear Deck Height

54-inch

Front Deck Height

60-inch

King Pin Setting

36-inch

Swing Clearance

68-inch

Axle Spacing

49-inch

No. of Axles

Main Beam Center

40-inch

Axle Track

Cross Members

4-inch Jr. I-Beams on 12-inch Centers

Main Frame

Side Rails

6-inch Structural Channel

Rear Cross Member

Stake Pockets

24-inch center, both sides, front & rear, with rubrails

Axles

25000 lbs

King Pin 5th Wheel

2-inch Heavy Duty

Tires

11R X 22.5

Wheels

Hole Piloted Steel

Brakes

16 ½-inch X 7-inch - 25K

ABS

2S1M

Landing Gear

2-Speed Landing Gear

Suspension

Tandem Air Ride Suspension

Lighting

LED Plus 2 - Rear Strobes

Connector

7 way SAE connector

Tie Downs

YES

Winches and Webbings

YES

Container Locks

Front Header

48-inch Header Rack Removable

Decking

Apitong Flooring

Finish

Sandblast & Powder Coat
